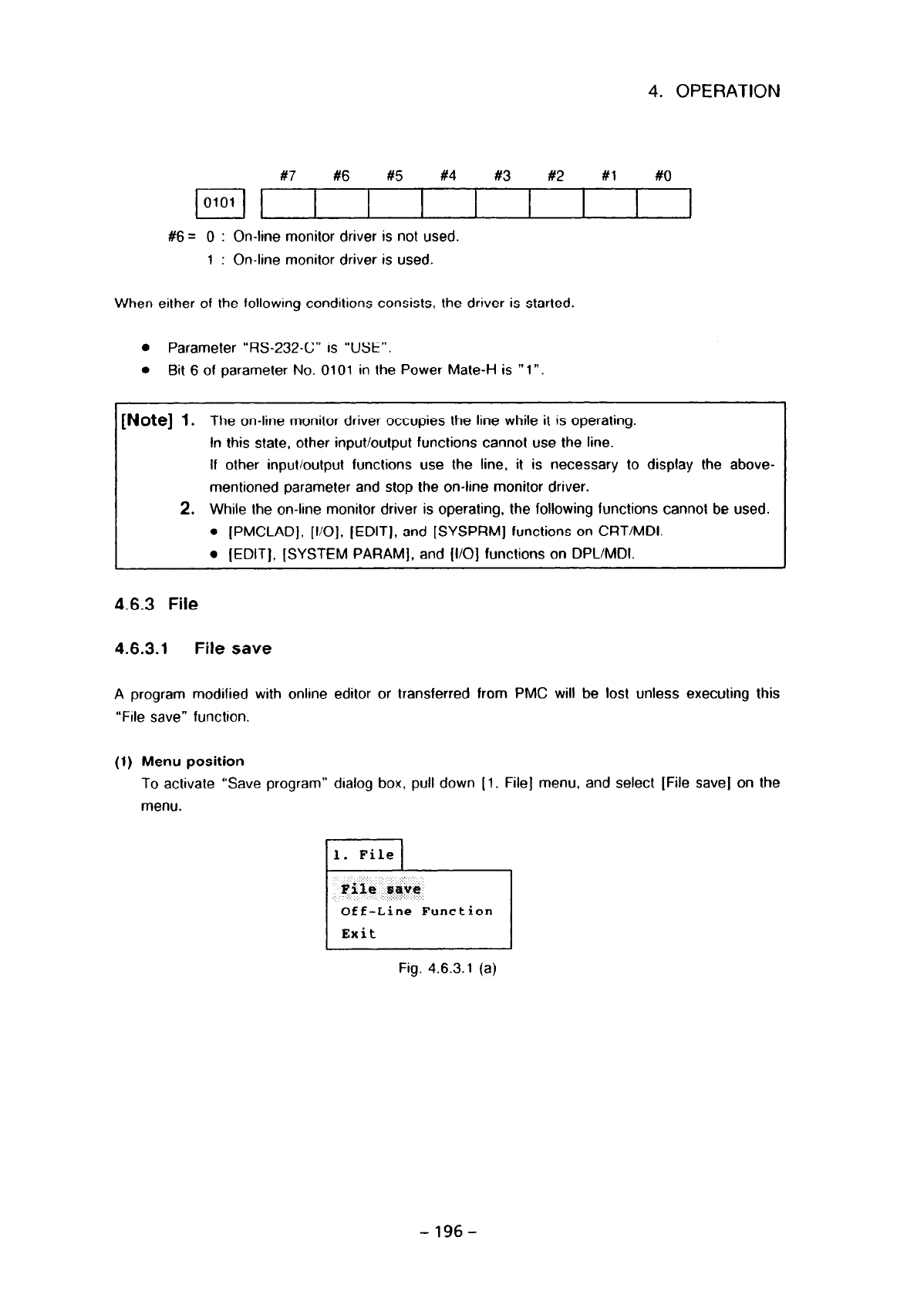

4. OPERATION

#7 #6 #5 #4 #3 #2 #f #6

#6 = 0 : On-line monitor driver is not used.

1 : On-line monitor driver is used.

When either of the following conditions consists, the driver is started.

0 Parameter “RS-232-C” is “USE”.

l Bit 6 of parameter No. 0101 in the Power Mate-H is “1”

[Note] 1. The on-line monitor driver occupies the line while it is operating.

In this state, other input/output functions cannot use the line.

If other input/output functions use the line, it is necessary to display the above-

mentioned parameter and stop the on-line monitor driver.

2. While the on-line monitor driver is operating, the following functions cannot be used.

l [PMCLADJ, [l/O), [EDIT], and [SYSPRM] functions on CRT/MDI.

l [EDIT], [SYSTEM PARAM], and (I/O] functions on DPLIMDI.

4.6.3 File

4.6.3.1 File save

A program modified

“File save” function.

(1) Menu position

with online editor or transferred from PMC will be lost unless executing this

To activate ‘Save program” dialog box, pull down [ 1, File] menu, and select [File save] on the

menu.

Il. File 1

Fiie ,s&

. . . . . . .

Off-Line Function

Exit

Fig. 4.6.3.1 (a)

-196-
