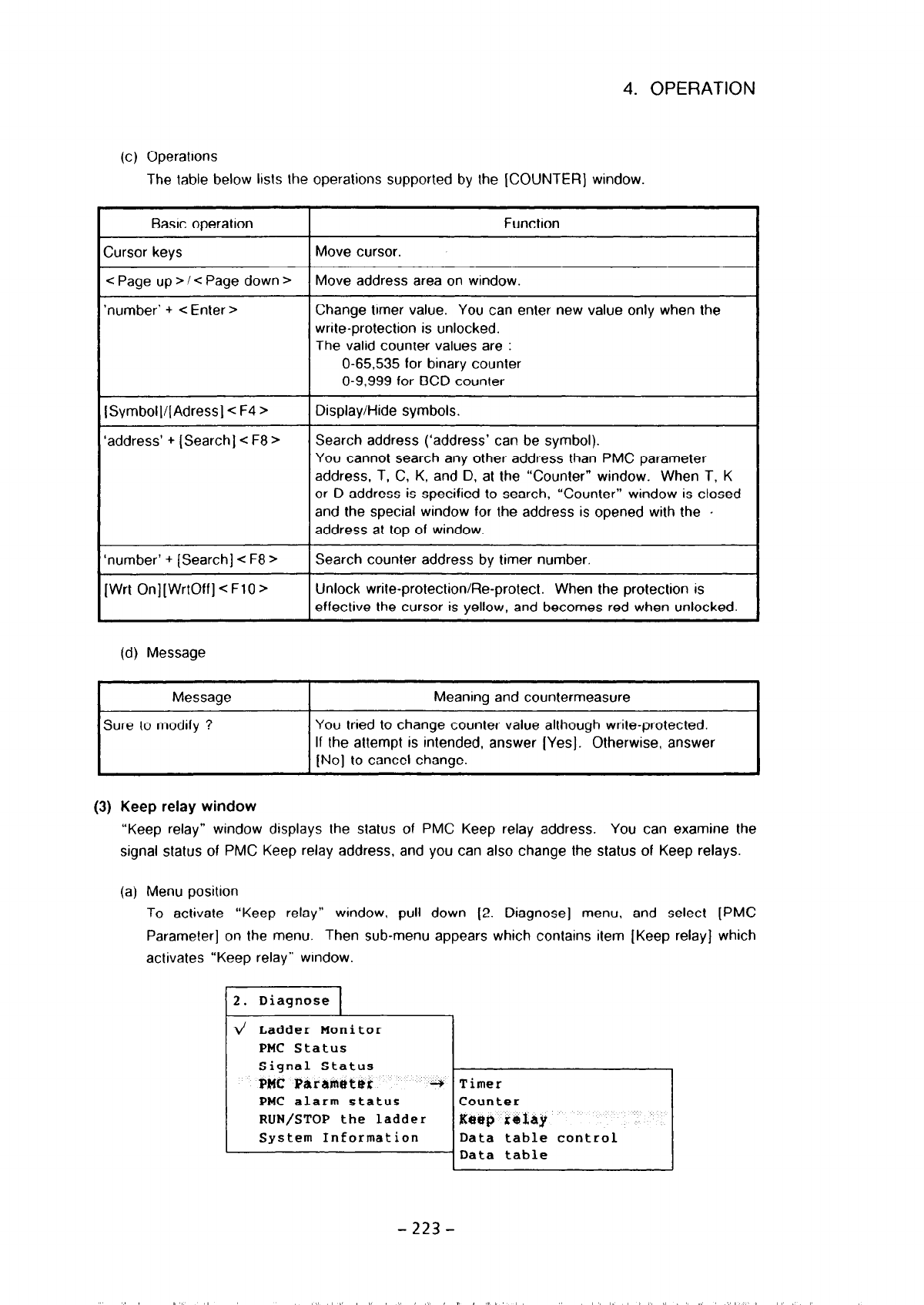

4. OPERATION

The table below lists the operations supported by the [COUNTER] window.

Basrc operatron

Function

Cursor keys

Move cursor.

< Page up > I c Page down >

Move address area on window.

‘number’ + c Enter >

Change timer value. You can enter new value only when the

write-protection is unlocked.

The valid counter values are :

O-65,535 for binary counter

O-9,999 for BCD counter

(Symbol]/(Adress] < F4 >

‘address’ + (Search] < F8 >

Display/Hide symbols.

Search address (‘address’ can be symbol).

You cannot search any other address than PMC parameter

address, T, C, K, and D, at the “Counter” window. When T, K

or D address is specified to search, “Counter” window is closed

and the special window for the address is opened with the ’

address at top of window.

‘number’ + [Search] < F8 >

[Wrt On][WrtOff] < FlO >

Search counter address by timer number.

Unlock write-protectionIRe-protect. When the protection is

effective the cursor is yellow, and becomes red when unlocked.

(d) Message

Meaning and countermeasure

You tried to change counter value although write-protected.

If the attempt is intended, answer [Yes]. Otherwise, answer

[No] to cancel change.

(3) Keep relay window

“Keep relay” window displays the status of PMC Keep relay address. You can examine the

signal status of PMC Keep relay address, and you can also change the status of Keep relays.

Menu position

To activate “Keep relay”

window, pull down (2. Diagnose] menu, and select (PMC

Parameter] on the menu. Then sub-menu appears which contains item [Keep relay] which

activates “Keep relay” window.

!. Diagnose

/ Ladder Monitor

PMC Status

Signal Status

PMC Paramtrtojt

PMC alarm status

RUN/STOP the ladder

System Information

Timer

Counter

Kaf3p relay

Data table control

Data table

- 223 -
