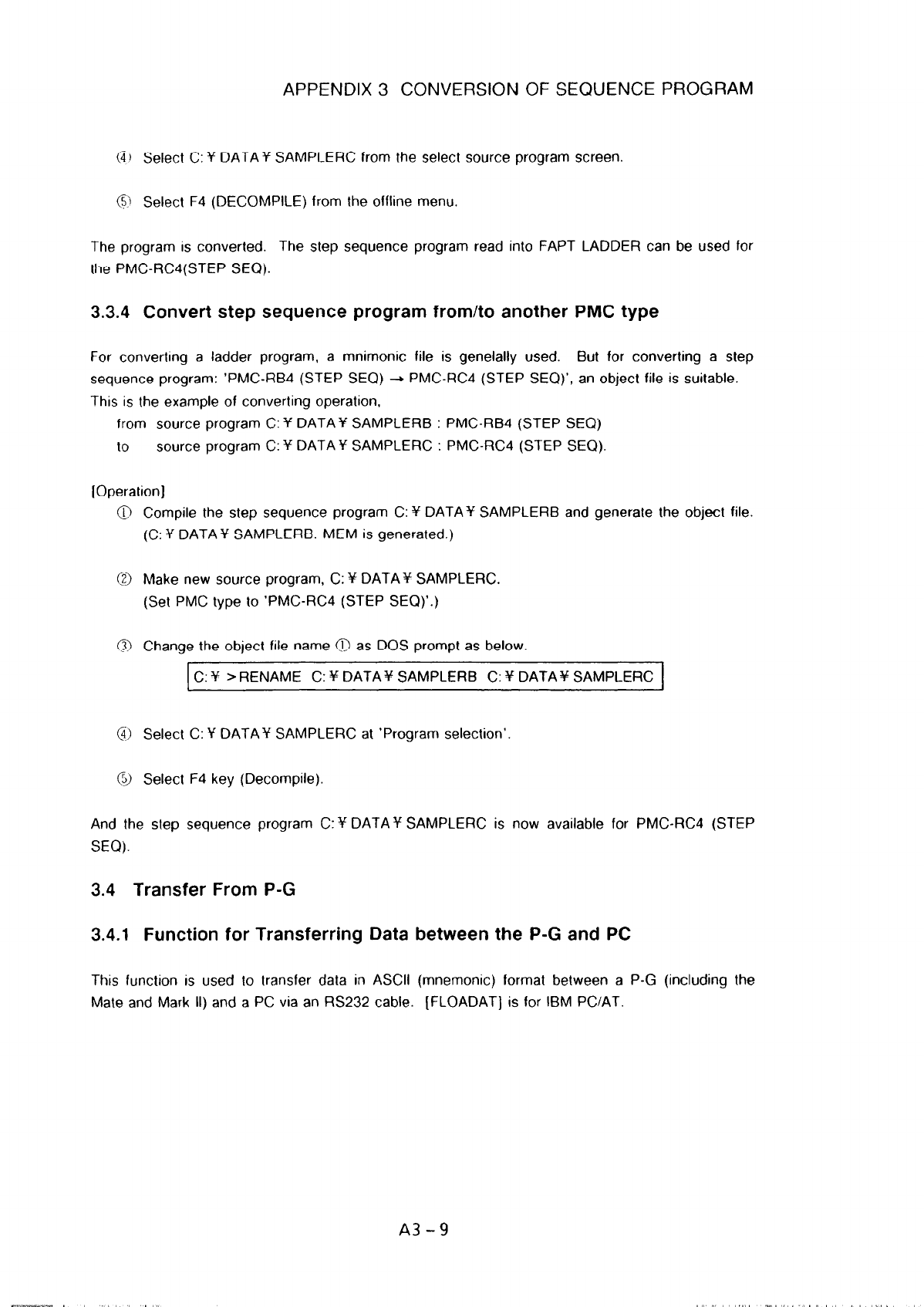

APPENDIX 3 CONVERSION OF SEQUENCE PROGRAM

(;ii Select C: 7 DATA SL SAMPLERC from the select source program screen.

@ Select F4 (DECOMPILE) from the offline menu.

The program is converted. The step sequence program read into FAPT LADDER can be used for

the PMCRC4(STEP SEQ).

3.3.4 Convert step sequence program from/to another PMC type

For converting a ladder program, a mnimonic file is genelally used. But for converting a step

sequence program: ‘PMC-RB4 (STEP SEQ) + PMCRC4 (STEP SEQ)‘, an object file is suitable.

This is the example of converting operation,

from source program C: Y DATAY SAMPLERB : PMC-RB4 (STEP SEQ)

source program C: Y DATA Y SAMPLERC : PMCRC4 (STEP SEQ).

[Operation ]

0 Compile the step sequence program C: Y DATAY SAMPLERB and generate the object file.

(C: Y DATA y SAMPLERB. MEM is generated.)

0 Make new source program, C: Y DATAY SAMPLERC.

(Set PMC type to ‘PMC-RC4 (STEP SEQ)‘.)

01 Change the object file name @ as DOS prompt as below.

1 C: v > RENAME C: M DATAY SAMPLERB C: Y DATAY SAMPLE% 1

@ Select C: Y DATAY SAMPLERC at ‘Program selection’.

@J Select F4 key (Decompile).

And the step sequence program C:Y DATAY SAMPLERC is now available for PMC-RC4 (STEP

SEQ.

3.4 Transfer From P-G

3.4.1 Function for Transferring Data between the P-G and PC

This function is used to transfer data in ASCII (mnemonic) format between a P-G (including the

Mate and Mark II) and a PC via an RS232 cable. [FLOADAT] is for IBM PC/AT.

A3-9
