FANUC OPEN CNC LADDER EDITING

PACKAGE SUPPLEMENTARY

OPERATOR’S MANUAL

01 98.11.13 Ino New making B-62884EN/01-4

EDIT DATE DESIG.

DESCRIPTION

34/67

TITLE

DRAW.NO.

SHEET

CUST.

5.3.8 Print Screen

The sequence program is printed. Moreover, the print option and the printer is set.

5.3.8.1 Print setting

Select and print the item that you want to print in this dialog. Moreover, the print option

setting dialog and the printer setting dialog can be called.

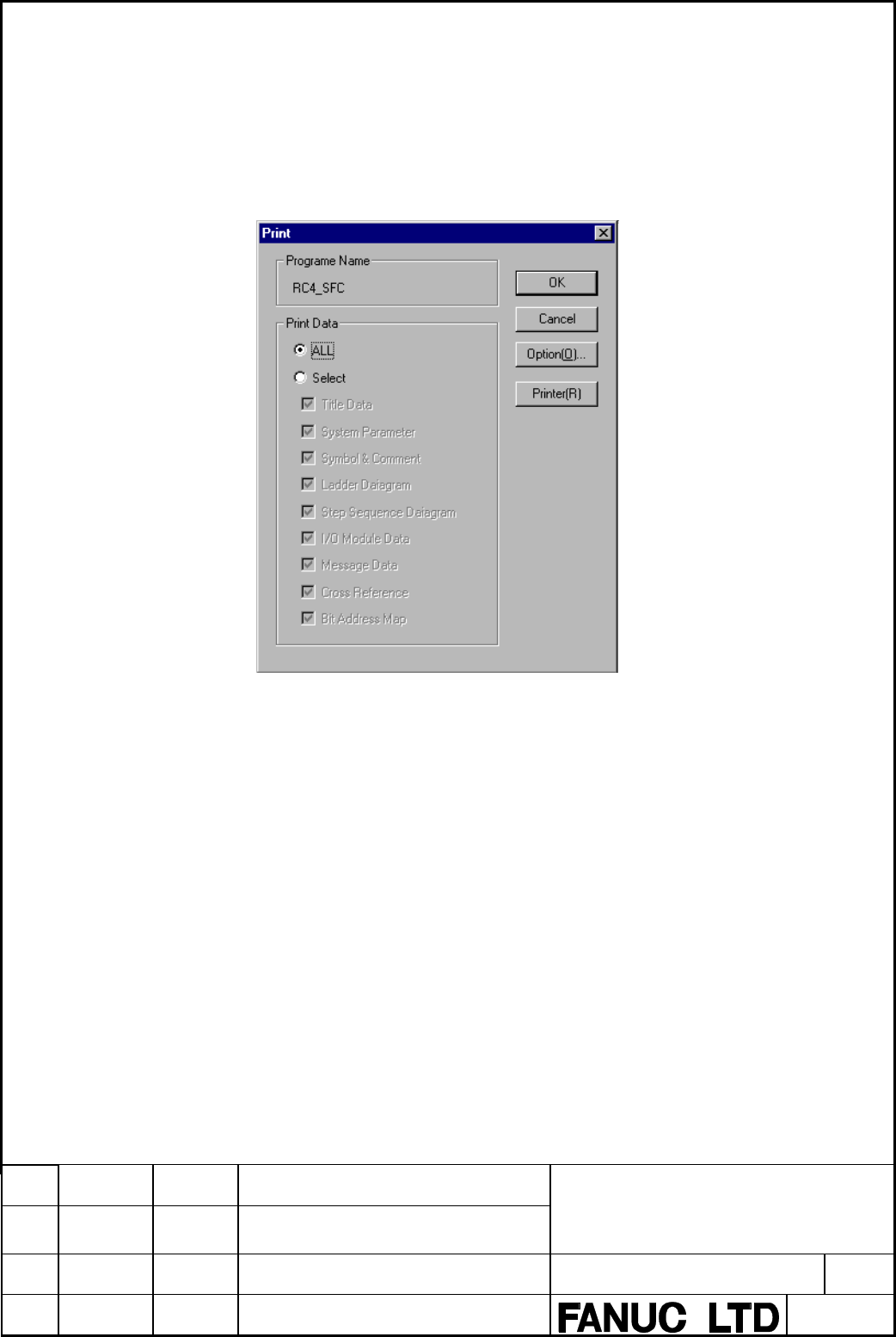

Fig. 5.3.8.1 Print dialog

Details of each item are as follows.

[Program Name] Group Display the program name, which is opened now.

[Print Data] Group Choose the item, which you want to print. In default,

[ALL] is checked.

[ALL] Specify to print all data.

[Select] Specify the print data. The print item can be selected by

checking [Select]. The checked print item is printed.

The print item do not correspond by the PMC model is

not

displayed.
