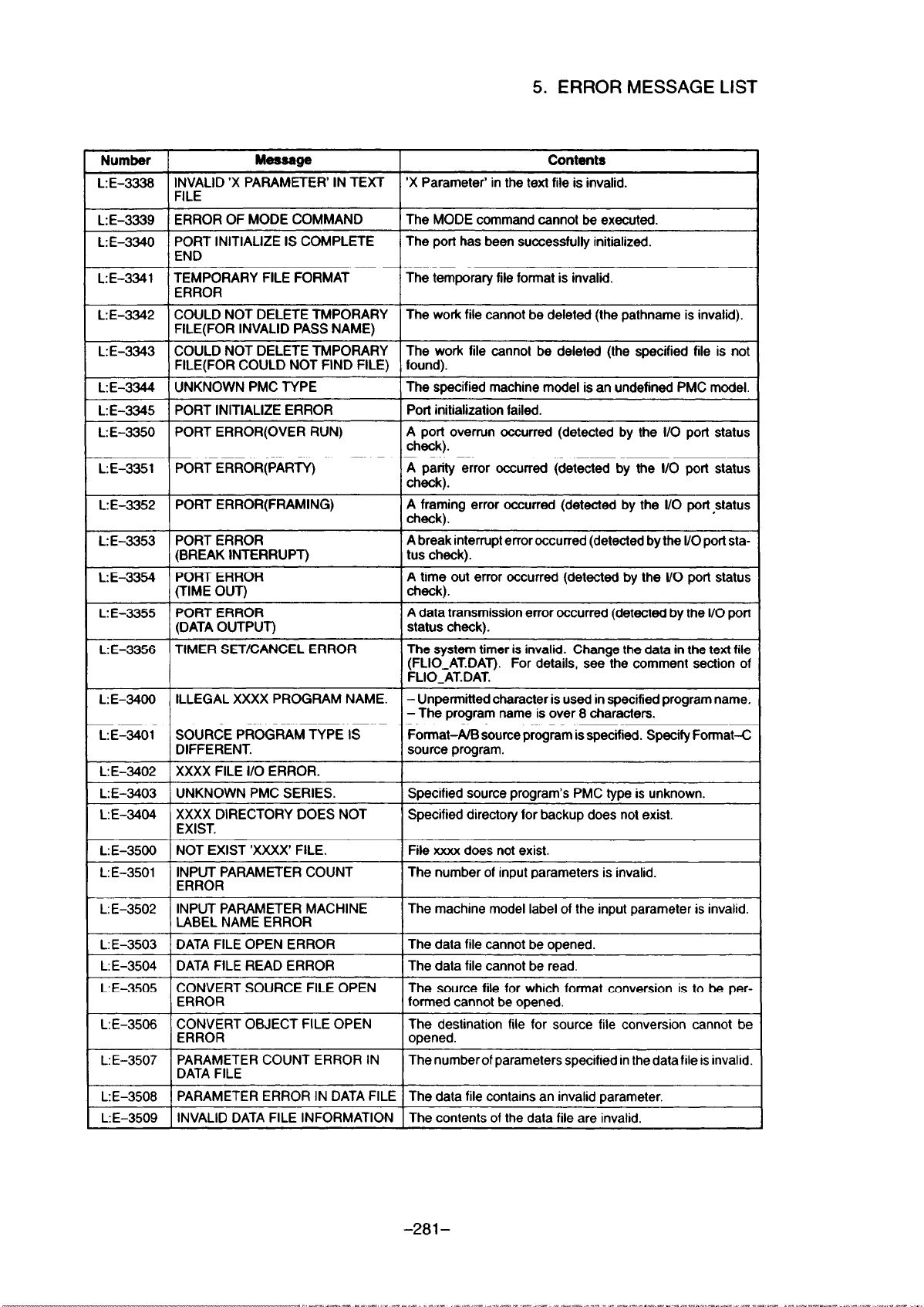

5. ERROR MESSAGE LIST

Number

MeJ=s((e

Contents

L:E-3336 INVALID ‘X PARAMETER’ IN TEXT ‘X Parameter’ in the text file is invalid.

FILE

L:E-3339 ERROR OF MODE COMMAND The MODE command cannot be executed.

L:E-3340 I==;T INITIALIZE IS COMPLETE The port has been successfully initialized.

L:E-3341 ;;;;;RARY FILE FORMAT The temporary file format is invalid.

L:E-3342 COULD NOT DELETE TMPORARY The work file cannot be deleted (the pathname is invalid).

FILE(FOR INVALID PASS NAME)

L:E-3343 COULD NOT DELETE TMPORARY The work file cannot be deleted (the specified file is not

FILE(FOR COULD NOT FIND FILE) found).

L:E-3344 UNKNOWN PMC TYPE

The specified machine model is an undefined PMC model.

LIE-3345 PORT INITIALIZE ERROR Port initialization failed.

L:E-3350 PORT ERROR(OVER RUN) A port overrun occurred (detected by the I/O port status

check).

L:E-3351

PORT ERROR(PARTY)

A parity error occurred (detected by the I/O port status

check).

L:E-3352 PORT ERROR(FRAMING)

A framing error occurred (detected by the l/O portstatus

check).

L:E-3353 PORT ERROR A break interrupt error occurred (detected by the l/O port sta-

(BREAK INTERRUPT) tus check).

L:E-3354 PORT ERROR

A time out error occurred (detected by the l/O port status

(TIME OUT) check).

L:E-3355 PORT ERROR

A data transmission error occurred (detected by the l/O port

(DATA OUTPUT) status check).

L:E-3356 TIMER SET/CANCEL ERROR The system timer is invalid. Change the data in the text file

(FLIO_AT.DAT). For details, see the comment section of

FLIO_AT.DAT.

L:E-3400 ILLEGAL XXXX PROGRAM NAME.

- Unpermitted character is used in specified program name.

- The program name is over 8 characters.

L:E-3401 SOURCE PROGRAM TYPE IS Forrnat-AIB source program is specified. Specify F0mat-C

DIFFERENT. source program.

L:E-3402 XXXX FILE I/O ERROR.

L:E-3403 UNKNOWN PMC SERIES. Specified source program’s PMC type is unknown.

L:E-3404 XXXX DIRECTORY DOES NOT Specified directory for backup does not exist.

EXIST.

L:E-3500 NOT EXIST ‘XxXx’ FILE.

File xxxx does not exist.

L:E-3501 pLRf’;ARAMETER COUNT The number of input parameters is invalid.

L:E-3502 INPUT PARAMETER MACHINE The machine model label of the input parameter is invalid.

LABEL NAME ERROR

L:E-3503 DATA FILE OPEN ERROR

The data file cannot be opened.

L:E-3504 DATA FILE READ ERROR The data file cannot be read.

L:E-3505 CONVERT SOURCE FILE OPEN The source file for which format conversion is to be per-

ERROR formed cannot be opened.

L:E-3506 ;;;;RT OBJECT FILE OPEN The destination file for source file conversion cannot be

opened.

L:E-3507 PARAMETER COUNT ERROR IN The numberof parameters specified in the data file is invalid.

DATA FILE

L:E-3508 PARAMETER ERROR IN DATA FILE The data file contains an invalid parameter.

L:E-3509 INVALID DATA FILE INFORMATION The contents of the data file are invalid.
