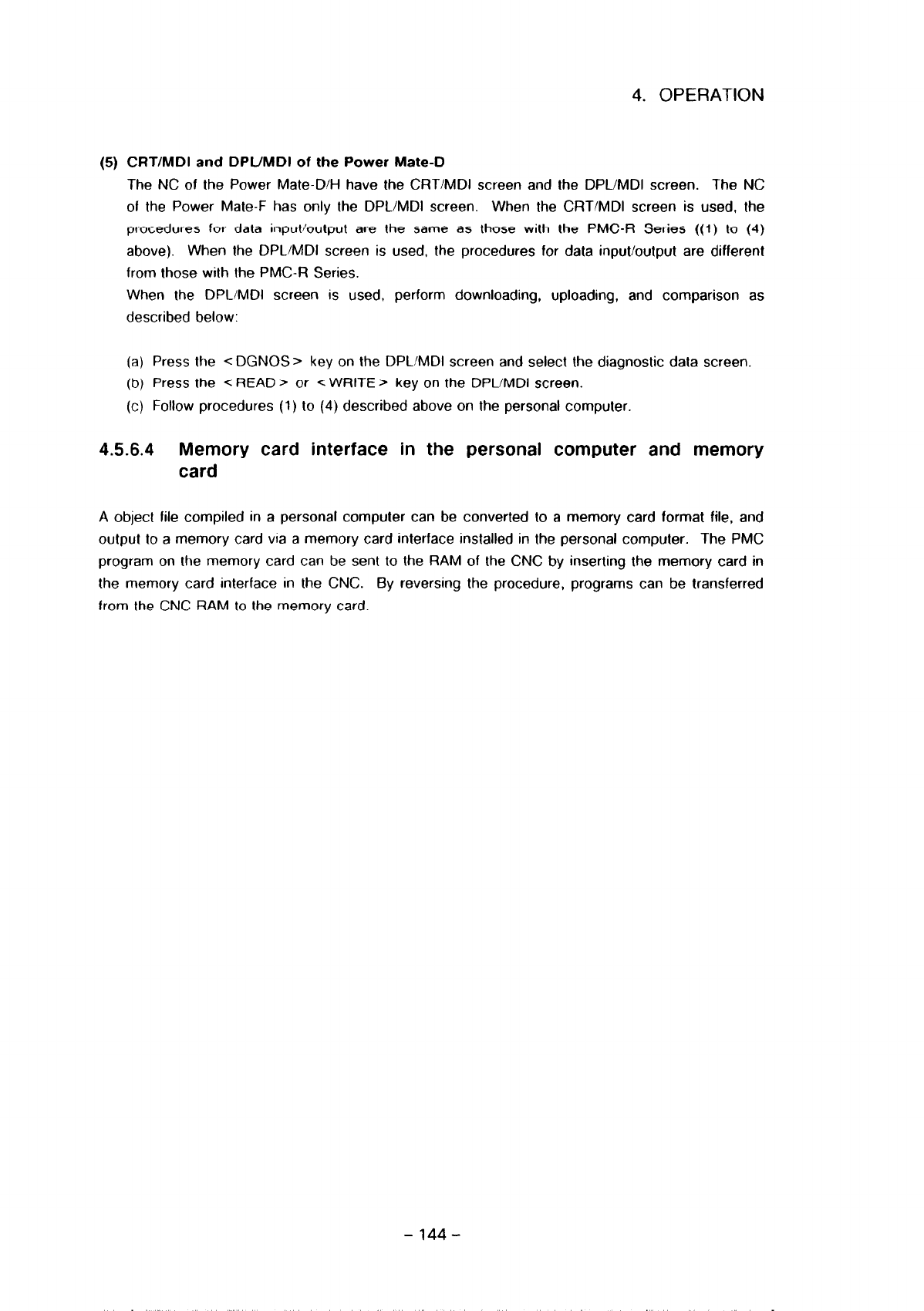

4. OPERATION

(5) CRT/MD1 and DPUMDI of the Power Mate-D

The NC of the Power Mate-D/H have the CRTiMDl screen and the DPL/MDI screen. The NC

of the Power Mate-F has only the DPLIMDI screen. When the CRT/MD1 screen is used, the

procedures for data input/output are the same as those with the PMC-R Series ((1) to (4)

above). When the DPLIMDI screen is used, the procedures for data input/output are different

from those with the PMC-R Series.

When the DPLIMDI screen is used, perform downloading, uploading, and comparison as

described below:

(a) Press the < DGNOS > key on the DPL/MDI screen and select the diagnostic data screen

(b) Press the <READ > or <WRITE > key on the DPLIMDI screen.

4.5.6.4 Memory card interface in the personal computer and memory

card

A object file compiled in a personal computer can be converted to a memory card format file, and

output to a memory card via a memory card interface installed in the personal computer. The PMC

program on the memory card can be sent to the RAM of the CNC by inserting the memory card in

the memory card interface in the CNC. By reversing the procedure, programs can be transferred

from the CNC RAM to the memory card.

- 144-
