FANUC OPEN CNC LADDER EDITING

PACKAGE SUPPLEMENTARY

OPERATOR’S MANUAL

01 98.11.13 Ino New making B-62884EN/01-4

EDIT DATE DESIG.

DESCRIPTION

45/67

TITLE

DRAW.NO.

SHEET

CUST.

5.3.8.7 I/O Module Data print

Set the option of the I/O Module Data print.

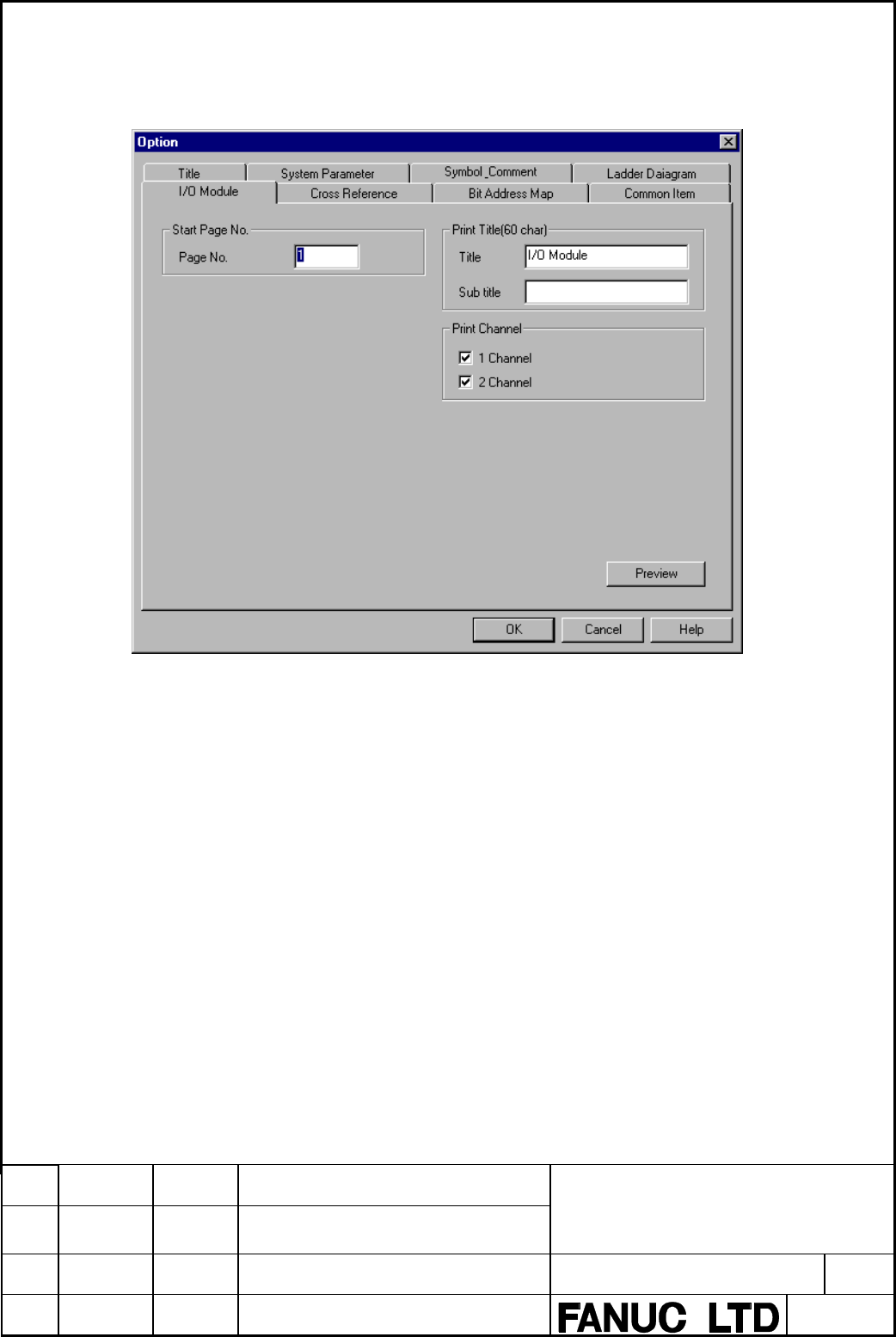

Fig. 5.3.8.7 I/O Module Data print option screen

Details of each item are as follows.

[Start Page No.] Group Set page number.

[Page No.] Set beginning page numbers of the I/O Module Data.

An integer value can be set. In default, “1” is set.

[Print Title] Group Specify the title and the sub title printed when the frame

print is specified. A title and a sub title can be specified

up to 60 characters.

[Title] Specify the title of the I/O Module Data. In default,

“I/O Module” is set.

[Sub Title] Specify the title of the I/O Module Data. Any character

string is not set in default.
