FANUC OPEN CNC LADDER EDITING

PACKAGE SUPPLEMENTARY

OPERATOR’S MANUAL

01 98.11.13 Ino New making B-62884EN/01-4

EDIT DATE DESIG.

DESCRIPTION

8/67

TITLE

DRAW.NO.

SHEET

CUST.

5.4 Installation and Uninstallation

(Replace (12) in the “2.3.1 Registering the software in Windows95/NT4.0 [Programs] menu”)

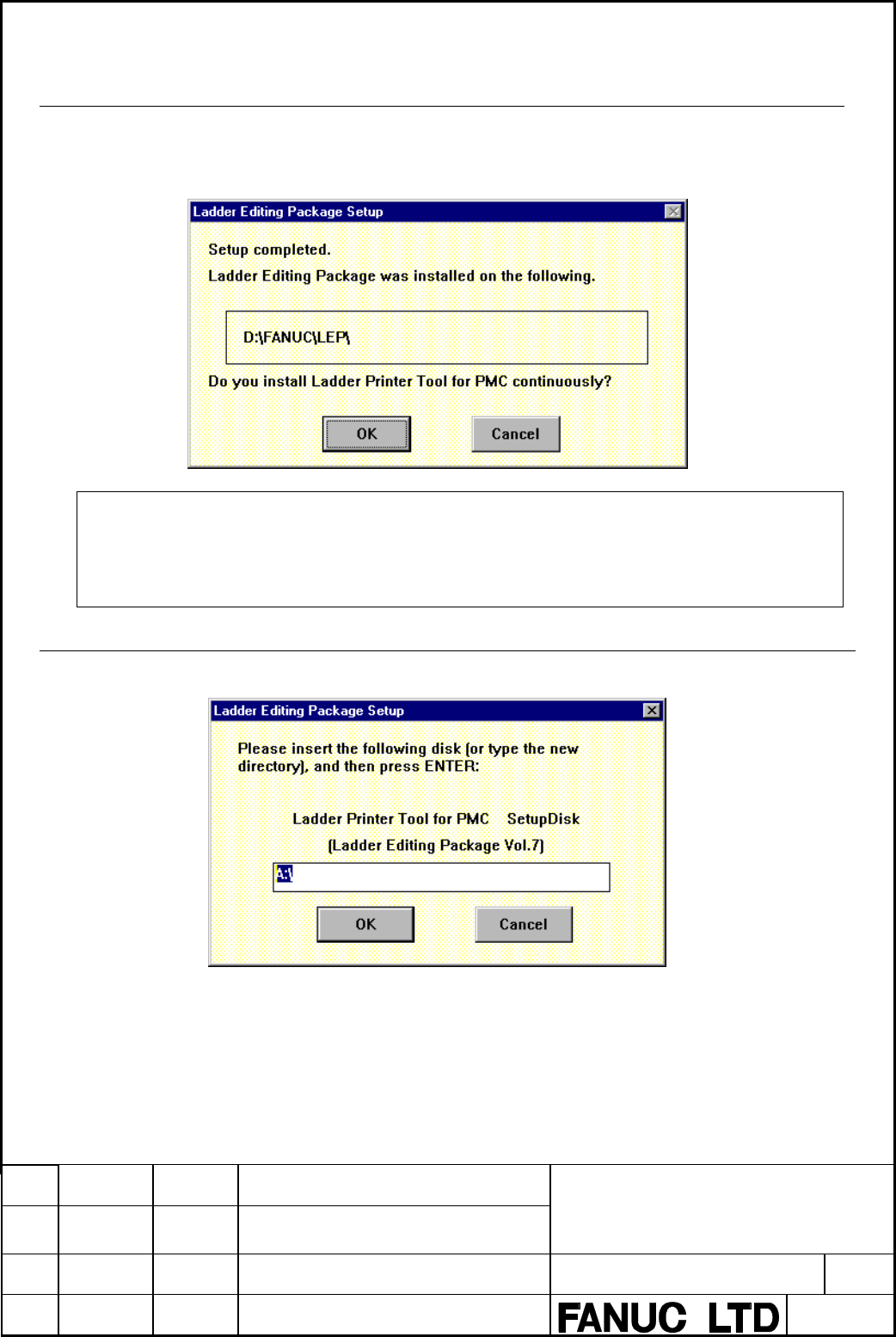

(12) Upon the completion of installation, the Ladder Editing Package is registered in the

[Programs] menu and the following screen is displayed. If you want to install continuously

the Ladder Printer Tool for PMC, click [OK] button. If you don’t want to install this tool,

click [Cancel] button. When [Cancel] button is clicked, the installation terminates.

[Note]

1. The configuration of the directory in which the Ladder Editing Package has been

installed cannot be modified.

2. When installing the Ladder Printer Tool for PMC at WindowsNT4.0, a privilege for

Administrator is needed.

(Add (13), (14) in the “2.3.1 Registering the software in Windows95/NT4.0 [Programs] menu”)

(13) When you install the Ladder Printer Tool for PMC, the following dialog is displayed.

Set a specified disk and click [OK] button.
