DIGITAL SERVO ADAPTER Connection manual Page 126

Connection manual
D. OPTICAL CABLE
B–63463EN/01
APPENDIX
118
(2)External type cable : A66L–6001–0026#Lj Rjjj
Cable length : 1 to 50 m
Fiber cord diameter : 2.2 mm 2 cords
Diameter of cable with reinforced cover : 7.6 mm
Tensile strength: Cable with reinforced cover : 75 kg
Optical fiber cord : 7 kg per cord
Between optical fiber cord
and optical connector : 2 kg
Minimum bending radius of optical fiber cord : 25 mm
Minimum bending radius of cable with reinforced cover : 50 mm
Bending resistance (cable with reinforced cover) :
10 million bending cycles at room temperature
(when the bending radius is 100 mm)
Flame resistance : Equivalent to UL VW–1
Operating temperature : –20 to 70°C
150typ.
8.2
21
6.7 19 max. 35typ.
Fiber code
Bush Reinforced
cover

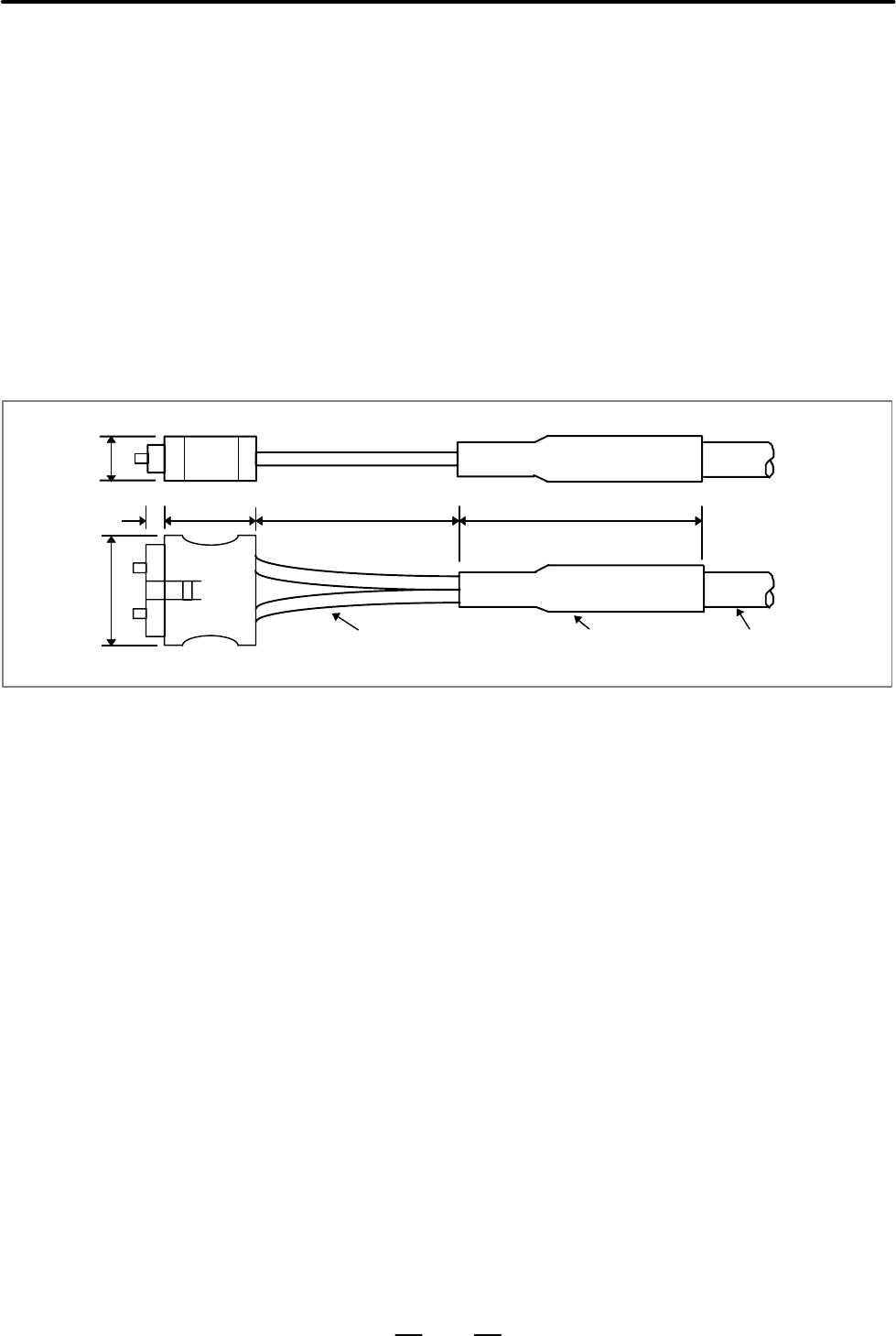

Fig. D (b) External dimensions of external cable Unit: mm
