DIGITAL SERVO ADAPTER Connection manual Page 64

Connection manual
7. CONNECTION TO PERIPHERALS
B–63463EN/01
56
1
FG SD RD RS CS DR SG CD
2 3 4 5 6 7 8 9 10 11 12 13
14 15 16 17 18 19 20 21 22 23 24 25
ER +24
1 RD
2 0V
3 DR
4 0V
11 SD
12 0V
13 ER
14 0V
5 CS
6 0V
7
8 0V
15 RS
16 0V
17
18
9 19
(0V)
Digital Servo Adapter
JD5
(PCR-EV20MDT)
10
(RDB)
20
FG
FANUC
Handy
File
Punch
panel
Relaying connector
Connector : DBM-25S
(JAPAN AVIATION
ELECTRONIC
INDUSTRY., LTD.)
Lock metal : D20418-J2
(JAPAN AVIATION
ELECTRONIC
INDUSTRY., LTD.)
Appendant

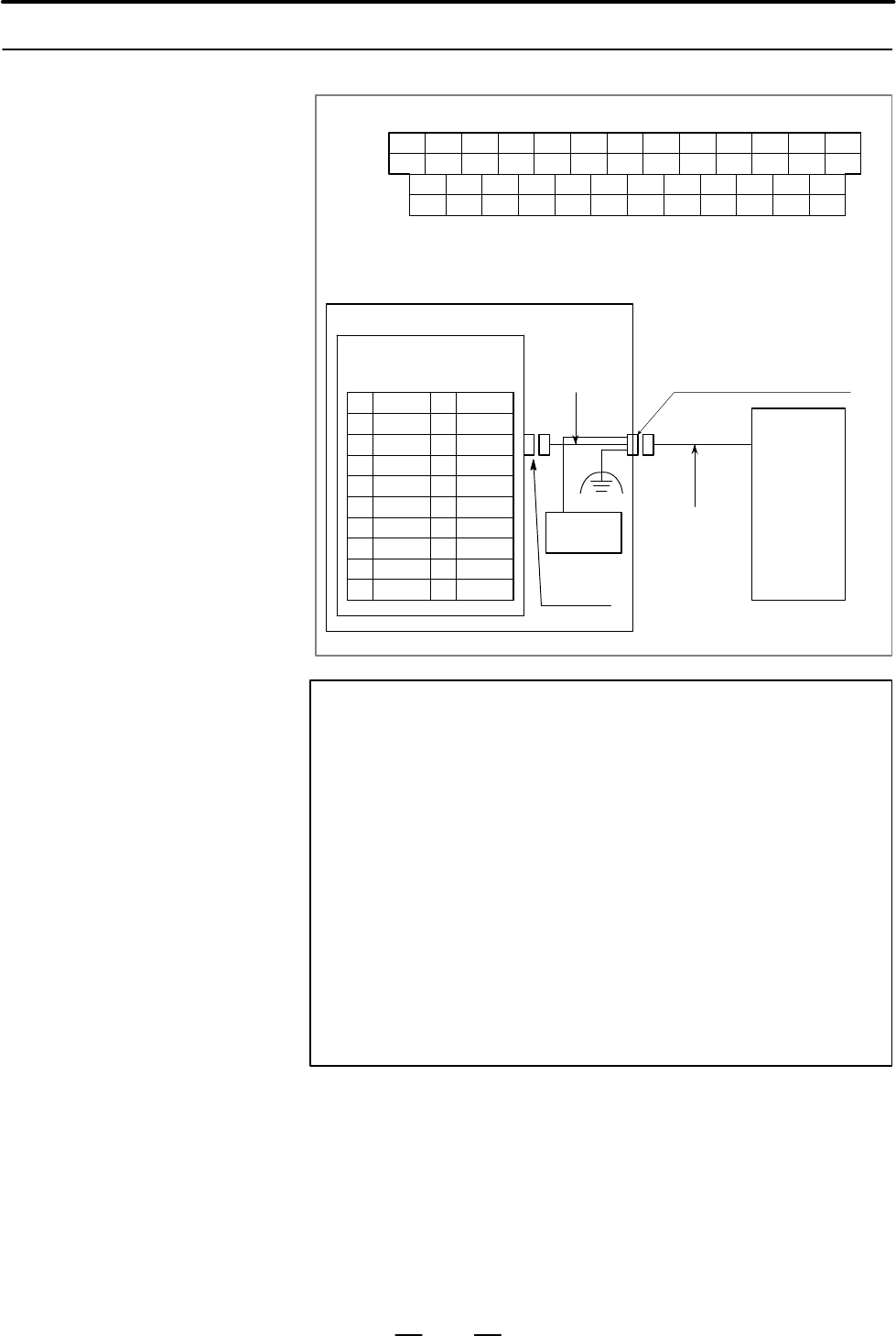

Relaying connector signal layout
24 VDC
1.0A
+24VDC
10%
1.0A
0V is
connected
to SG.
CD (SDB)
NOTE
1 Machine tool builder shall furnish punch panel, relay cable
and 24VDC.
The punch panel may be purchased from FANUC. (See
Section 7.2.2.)
2 Use a totally shielded cable for the signal cable.
Recommended cable specification : A66L-0001-0284#10P
(Line length : 15m or less)
3 Open all terminals other than illustrated.
4 Set a parameter to be able to use reader puncher interface
when connecting Handy File.
The baud rate is 4800 baud.
5 24 VDC power for the FANUC Handy File must be supplied
from an external 24 VDC power supply or the CP2 power
output of the Digital Servo Adapter (see Section 4.2).
6 The DPL/MDI is required to operate the Handy File.
7.2.3
Connection to the
Handy File (Channel 1)
Previous page
Next page
