DIGITAL SERVO ADAPTER Connection manual Page 44

Connection manual
6. CONNECTION USING THE HSSB
B–63463EN/01
36
The HSSB PC interface board is the HSSB communication interface
board that must be installed in the customer control unit. The customer
control unit must be furnished with either an ISA or PCI bus.
The following four types of HSSB PC interface board are available, which
differ in the connection bus and the number of channels. The number of
channels indicates how many Digital Servo Adapters can be connected
with the interface board. (As many optical connectors as the number of
channels are installed.)
Drawing number Connection bus
Number of
channels
Power supply
A20B–8001–0583 ISA bus 1 5V/1A
A20B–8001–0582 ISA bus 2 5V/1.5A
A20B–8001–0961 PCI bus 1 5V/0.8A
A20B–8001–0960 PCI bus 2 5V/1.0A

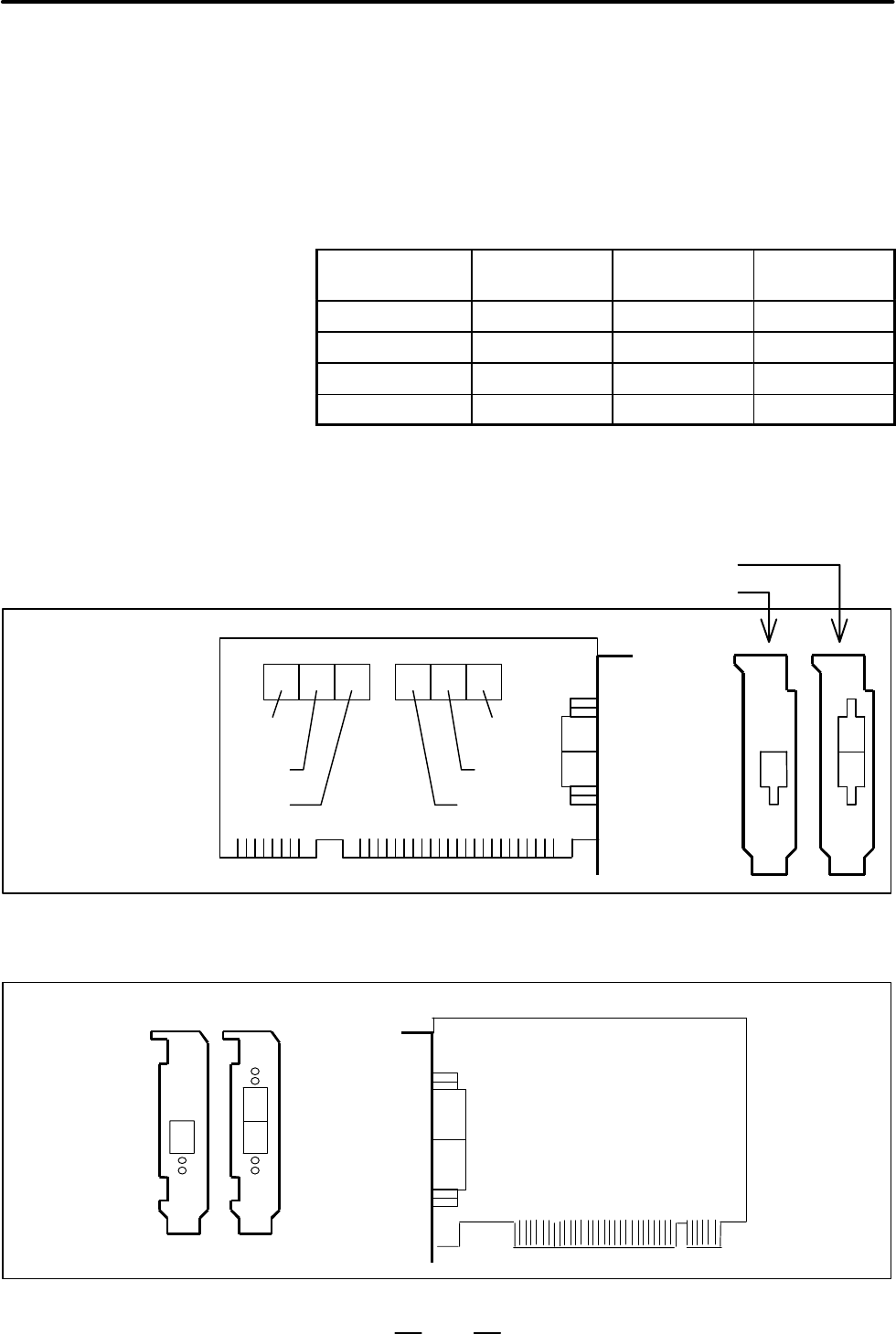

The appearance of the HSSB PC interface board is shown in Figures 8 and
9 in Appendix A.
The conditions for the environment in which the HSSB PC interface
board is to be installed are the same as those for the Digital Servo Adapter.
1) HSSB PC interface board for the ISA bus
Drawing A20B–8001–0582 (2–channel type)
number: A20B–8001–0583 (1–channel type
Switch (B) Switch (A)
SW2B
SW3B
SW1B
SW1A
SW2A
SW3A
LED2B(Green)
LED1B(Red)
LED2A(Green)
LED1A(Red)
COP7B
COP7A
H H
H
2) HSSB PC interface board for the PCI bus
Drawing A20B–8001–0960 (2–channel type)
number: A20B–8001–0961 (1–channel type)
LED2B(Green)
LED1B(Red)
LED2A(Green)
LED1A(Red)
COP7B
COP7A
1ch 2ch
6.2
HSSB PC INTERFACE
BOARD
