DIGITAL SERVO ADAPTER Connection manual Page 79

Connection manual
B–63463EN/01
7. CONNECTION TO PERIPHERALS
71

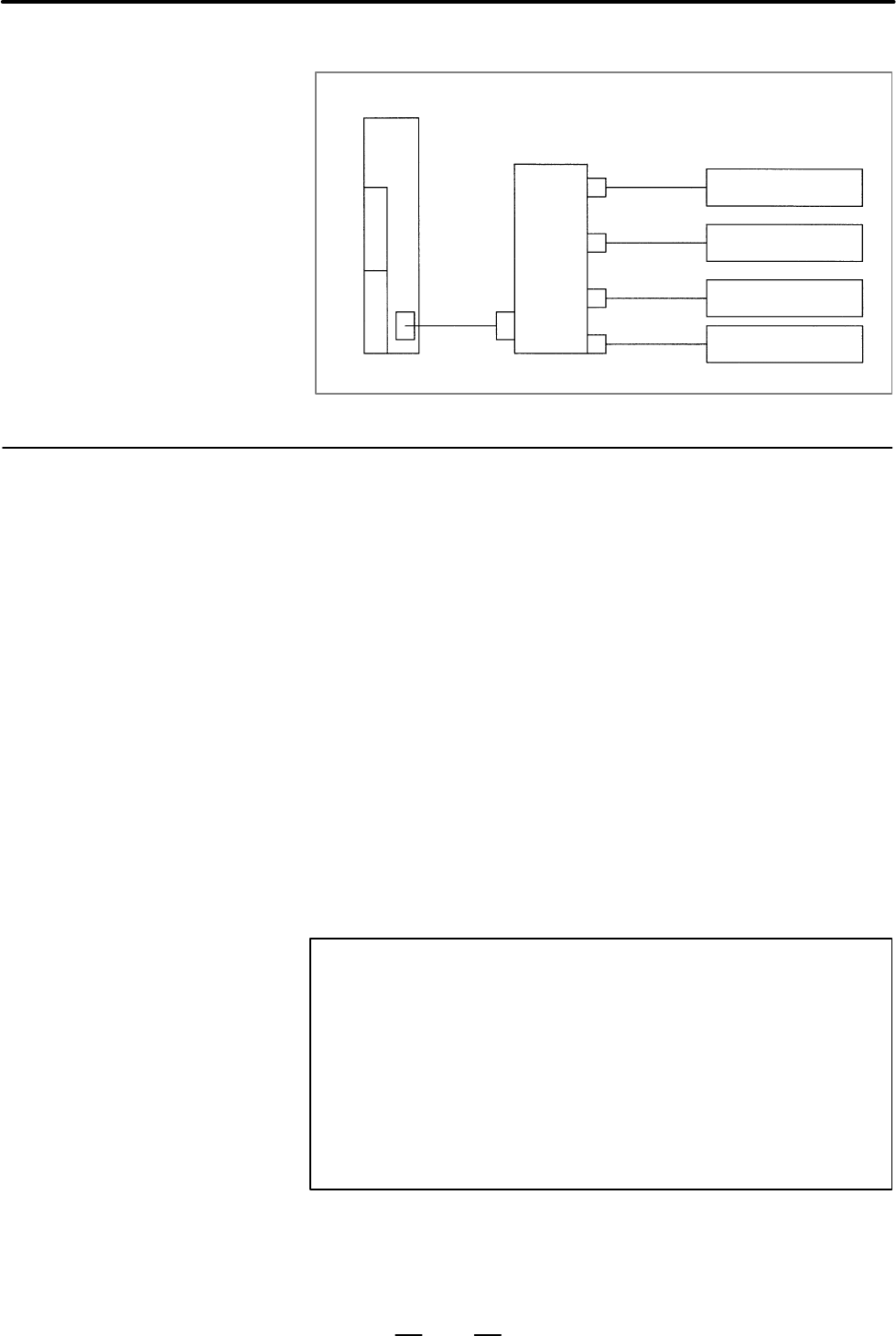

Digital Servo Adapter
CA54
Servo
check
board
adaptor
Servo check board#1
Servo check board#2
Servo check board#3
Servo check board#4
Connect the cable of the servo check board adaptor to connector CA54 of
the Digital Servo Adapter. CA54 is located in the basic unit.
1 Turn off the power to the Digital Servo Adapter.
2 Remove the fan unit, referring to “Removing the fan unit” in the
“Digital Servo Adapter Maintenance Manual.”
3 Pull the base printed circuit board by about 1/3 of its depth (until
connector CA54 is visible), referring to “Inserting and removing the
base printed circuit board” in the “Digital Servo Adapter Maintenance
Manual.”
4 Pass the cable of the servo check board adaptor through the hole
located in the lower part of the basic unit (above the faston pin) and
connect it to connector CA54.
5 Return the base printed circuit board to its original position.
6 Mount the fan unit, referring to “Mounting the fan unit” in the “Digital
Servo Adapter Maintenance Manual.”
7 Connect a servo check board to the servo check board adaptor. Support
the servo check board so that its weight does not pull it out its the
connector.
NOTE
On the base printed circuit board, SRAM with battery
backup is mounted. When connecting the cable, do not pull
the base printed circuit board outward more than necessary
so that other objects do not come into contact with the
portions of the base printed circuit board other than the face
plate. If possible, create a backup of the contents of the
SRAM on a memory card and so on before connecting the
cable.
When the use of the servo check board is completed, disconnect the cable
of the servo check board adaptor from the Digital Servo Adapter, by
reversing the above procedure.
7.5
CONNECTING
SERVO CHECK
BOARDS
7.5.1
Connection Procedure
