DIGITAL SERVO ADAPTER Connection manual Page 37

Connection manual
B–63463EN/01
5. CONNECTION OF I/O UNITS TO
MACHINE INTERFACE
29

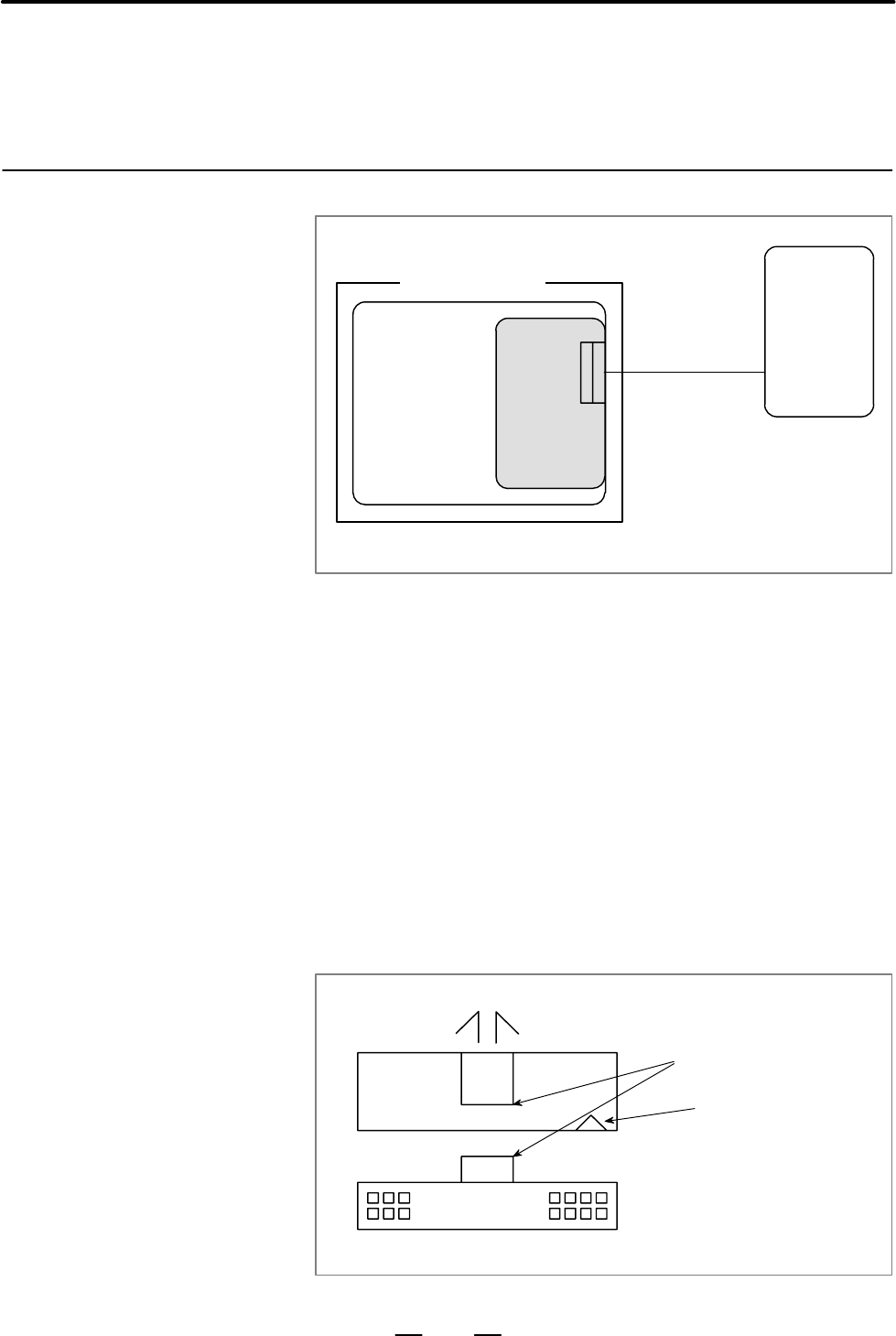

Digital Servo Adapter
34–pin ribbon
cable connector
Built–in
I/O
Machine
operator’s
panel
J86
Base PC board
Connect the emergency stop signal input to the built–in I/O.
This built–in I/O is designed such that a connector panel is used to relay
the signals between the I/O card and terminal block or another connector.
In particular, to facilitate connection to a connector panel, MIL–standard
ribbon–cable connectors are employed as the interface connectors.
(1)Connector specification:
Connector conforming to MIL–C–83503 standard, equipped with
center key for protection against reverse insertion
Use the cable connector conforming to the equivalent standard.
Recommended connector
A02B–0124–K300
(HIROSE HIF3BA–34D–2.54R)
(2)Pin No. of connector
Prevent key
Pin mark
A
B
The near side to prevent key is an
A side.
The opposite side is a B side.
The near pin to pin mark is No. A1.
To P.C.B.
17 (From cable side) 3 2 1
Upper
side
5.1
CONNECTION OF
BUILT–IN I/O
5.1.1
Outline
