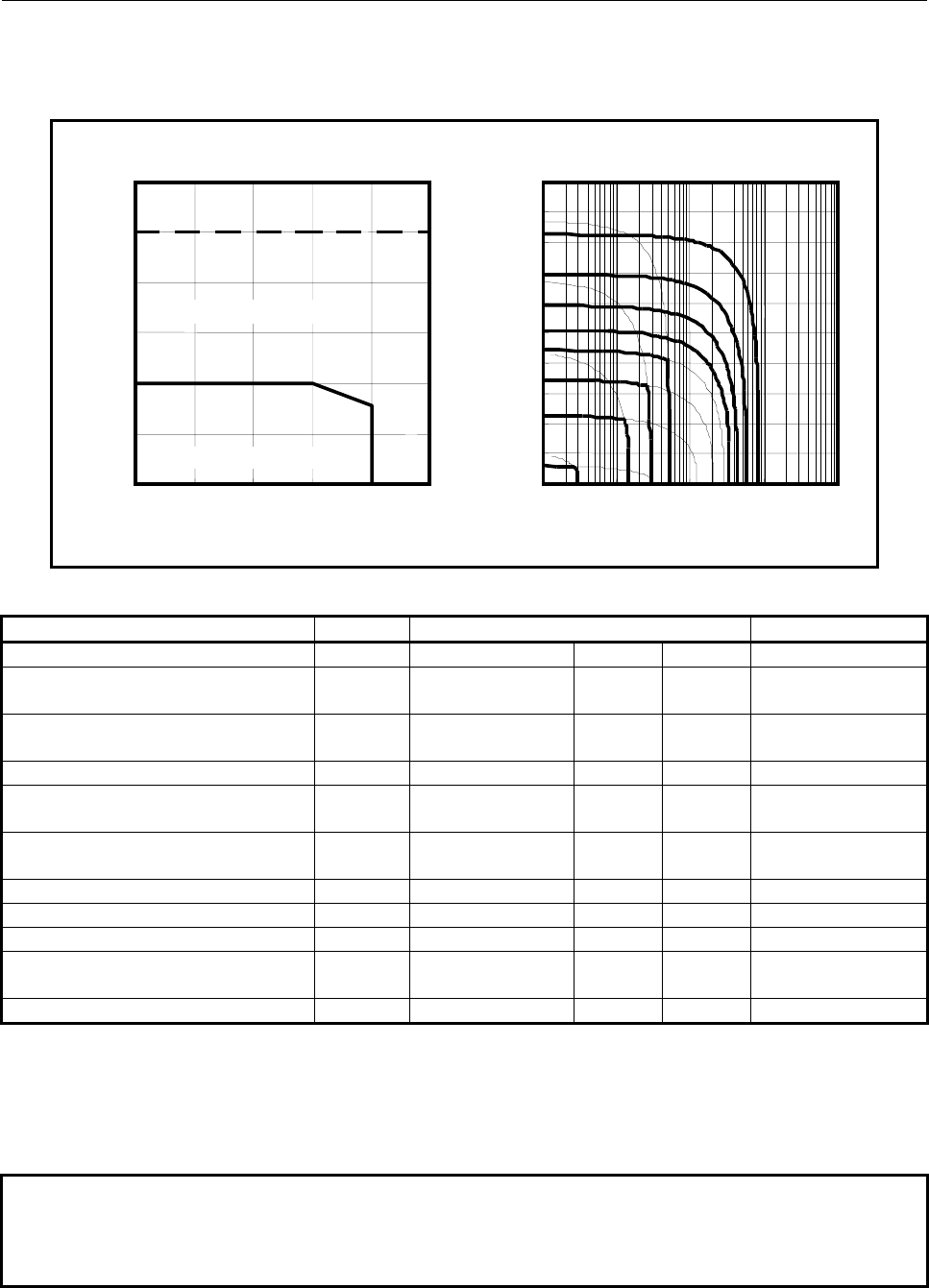

2.SPECIFICATIONS AND CHARACTERISTICS FANUC AC SERVO MOTOR β series B-65232EN/03
- 78 -
Model β
ββ
βM0.4/4000
Specification : A06B-0114-Bxxx
110%
120%
130%
140%
150%
170%
210%
MA
X
0
10
20
30
40
50
60
70
80
90
100
1 10 100 1000
0
0.2
0.4
0.6
0.8
1.2
0 1000 2000 3000 4000 5000
Over load duty characteristics
"ON" time (sec.)
Duty (time %)
Speed - torque characteristics
Speed (min
-1
)
Continuous operating
Intermittent operating
Torque (Nm)
1
Data sheet
Parameter Symbol Value Unit
Rating rotation speed Nmax 4000 min
-1
Rated torque at stall (*) Ts
0.4
4.1
Nm
kgfcm
Rotor inertia Jm
0.00001
0.0001
kgm
2
kgfcms
2
Continuous RMS current at stall (*) Is 3.5 A(rms)
Torque constant (*) Kt
0.12
1.2
Nm/A(rms)
kgfcm/A(rms)
Back EMF constant (1-phase) (*)
Ke
Kv
4.0
0.038
V(rms)/1000min
-1
V(rms)sec/rad
Armature resistance (1-phase) (*) Ra 0.5 Ω
Mechanical time constant tm 0.001 s
Thermal time constant tt 8 min
Static friction Tf
0.04
0.4
Nm
kgfcm
Mass 0.8 kg
(*)The values are the standard values at 20°C and the tolerance is ±10%.
The speed-torque characteristics very depending on the type of software, parameter setting, and input
voltage of the digital servo motor. (The above figures show average values.)
These values may be changed without prior notice.
NOTE
The data above indicates torque characteristics obtained when HRV2 control is
used for driving. This motor cannot be driven by HRV control and I/O Link β
amplifier.
