B-65232EN/03 DESCRIPTIONS FOR FANUC AC SERVO MOTOR β series 2.NOTES ON USE

- 15 -

(4) Drip-proof environment

The protection form for a single motor unit satisfies IP65 of the

IEC standards (equivalent to JP65, dust-proof and jet-proof type,

of JIS C4004-1980, code for revolving electric machines) These

standards, however, refer only to short-term performance. In

actual operation, note also the following:

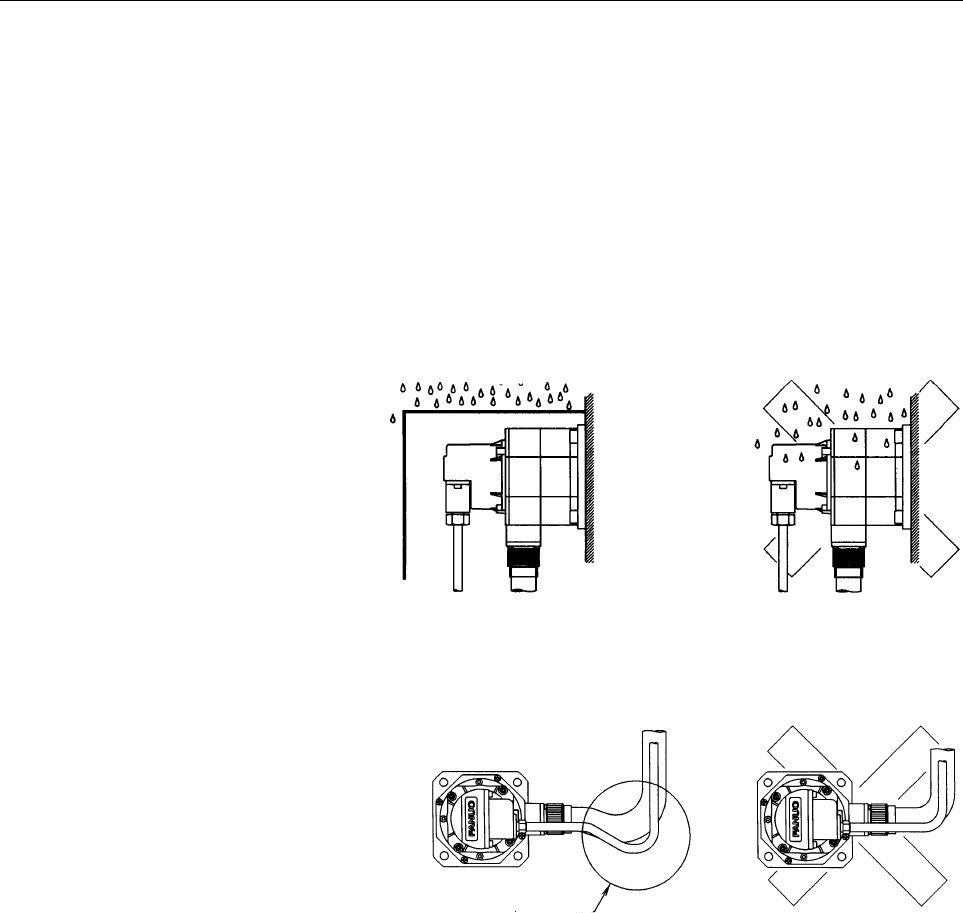

(a) Protect the motor surface from the cutting fluid or lubricant.

Use a cover when there is a possibility of wetting the motor

surface. Only the telescopic cover of the sliding part can

not completely prevent leakage of the cutting fluid. Pay

attention to the drop along the structure body, too.

(b) Prevent the cutting fluid from being led to the motor

through the cable. When the motor connector is used in the

sideways position, put a drip loop in the cable.

Slack
