4.SELECTING A MOTOR DESCRIPTIONS FOR FANUC AC SERVO MOTOR β series B-65232EN/03

- 30 -

(6) Data to be provided by FANUC

(a) Input multiply ratio, command multiply ratio, and flexible

feed gear ratio

The NC set values required for moving the machine tool at

the least input increment values are entered in these blanks.

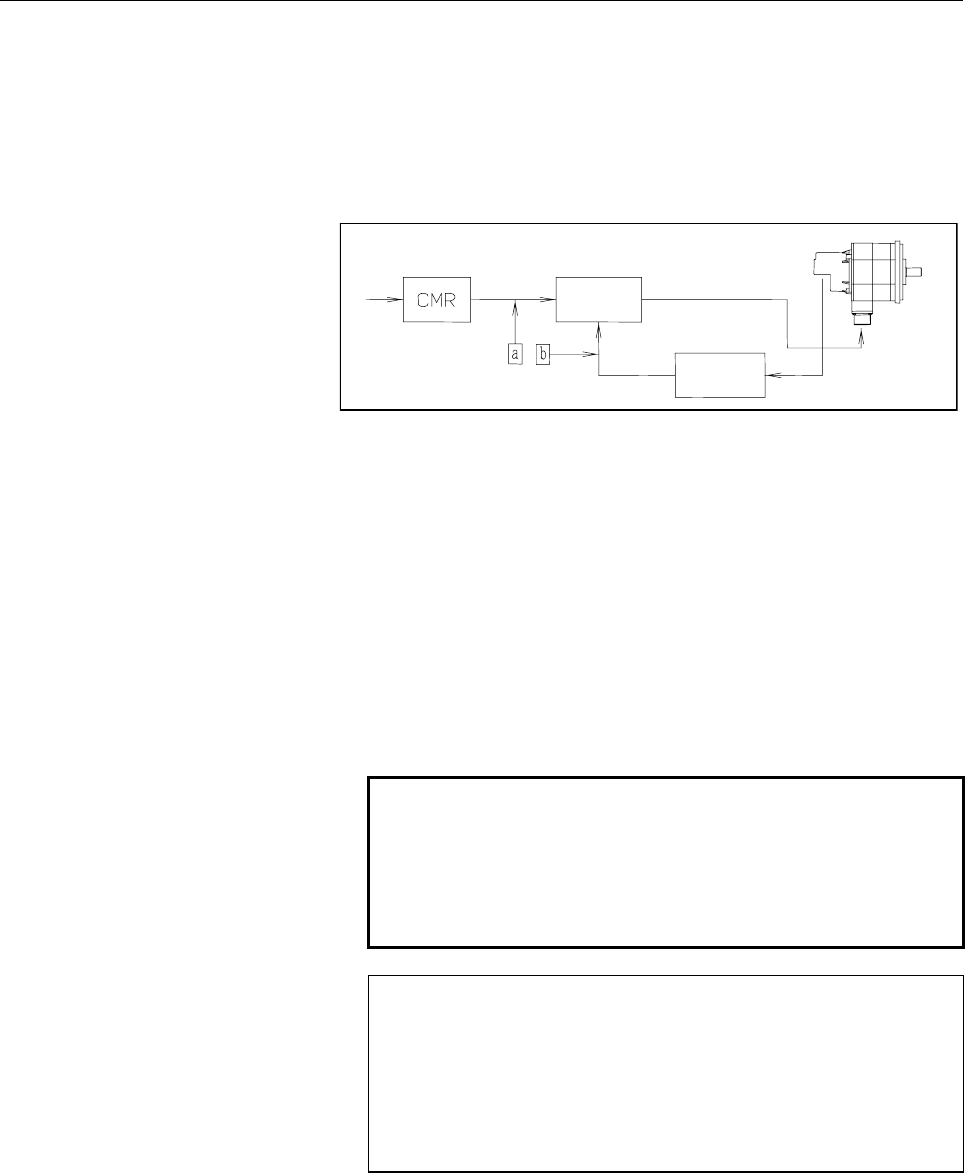

The relation among these values as illustrated below.

Command multipl

Error

Flexible

feed gear

In the above figure, each ratio is set so that the units of the

two inputs (a and b) of the error register are the same. The

β pulse coder uses a flexible feed gear as standard. So,

CMR is normally set to 1. When other than 1 is to be set for

CMR, contact FANUC for details.

For the flexible feed gear (F.FG), the ratio of the number of

position pulses required per motor shaft revolution to the

number of feedback pulses is set.

The set value is obtained as follows:

F.FG=(Number of position pulses requiredper motor shaft

revolution)/1,000,000

NOTE

The maximum permissible value for both the

numerator and denominator is 32,767. So, the

fraction should be reduced to its lowest terms,

after which the resultant numerator and

denominator should be set.

Example)

Suppose that the NC uses increments of 0.01mm,

the machine travel distance per motor shaft

revolution is 8 mm, and pulse coder βA32B is

used.

F.FG=(8/0.01)/1,000,000=800/1,000,000=1/1250,

CMR=1
