B-65232EN/03 DESCRIPTIONS FOR FANUC AC SERVO MOTOR β series 2.NOTES ON USE

- 11 -

2.3 COUPLING

A precision detector is directly attached to the shaft end of the servo

motor. Pay attention to the following items to prevent damage to the

detector.

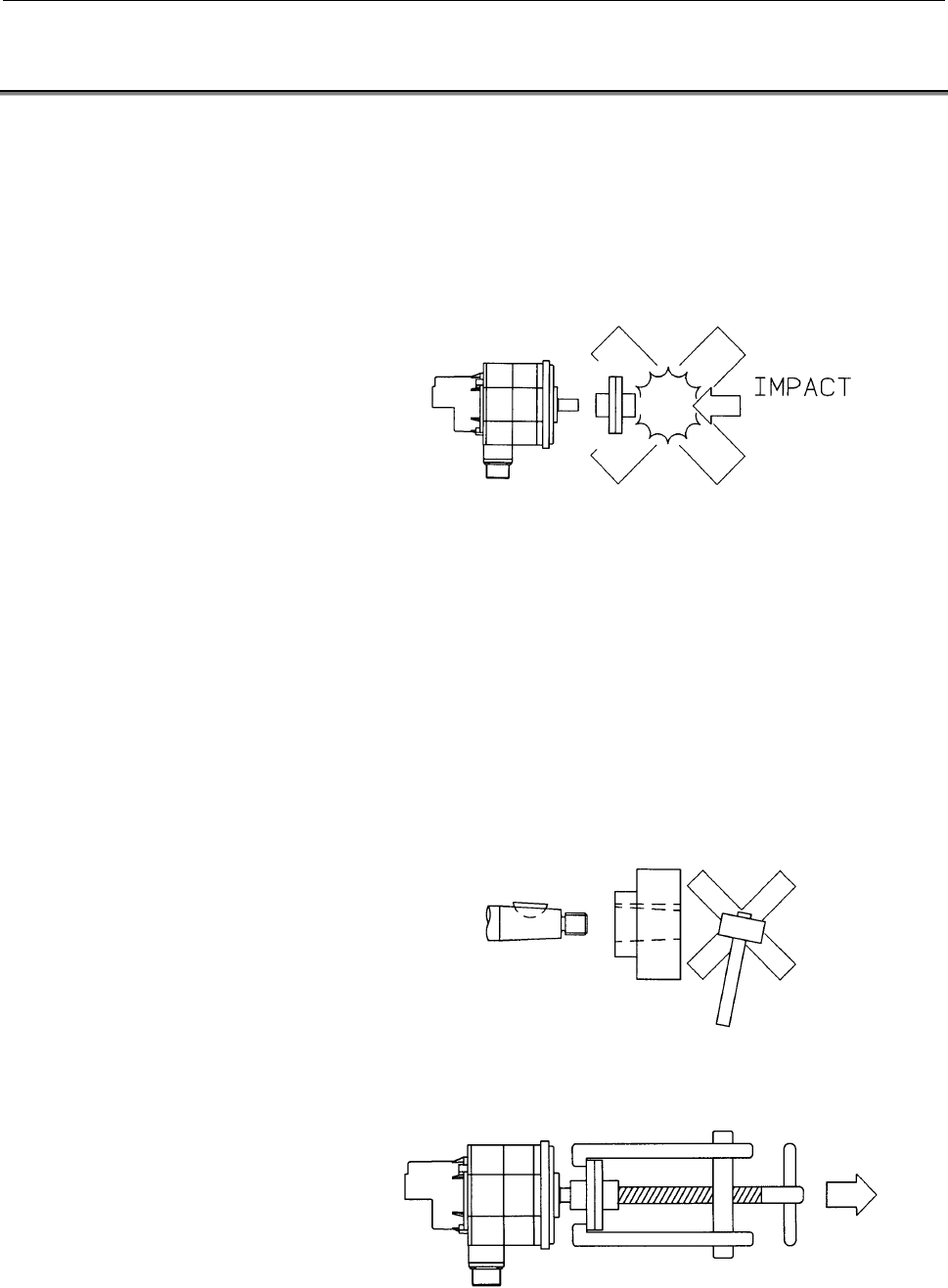

(1) When connecting the power transmission elements such as a

gear, a pulley and a coupling to the shaft, take care not to apply a

shock to the shaft.

(2) Generally, in the case of straight shaft, use a span ring for

connection with the shaft.

(3) In the case of tapered shaft, match the tapered surface with the

power transmission element and fix by tightening the screw at

the end. Even if the power transmission element cannot be

mounted securely, for example, because of the woodruff key

being tight, do not strike the shaft with a hammer or the like. The

woodruff key mounted on the taper shaft is used mainly for

positioning, while the tapered surface of the shaft is used for

torque transmission. The tapered surface of the transmission

element should be ground so that at least 70% of the papered

surface meets the shaft surface for efficient torque transmission.

(4) To remove the connected power transmission element, be sure to

use a jig such as a gear puller.
