B-65232EN/03 CONNECTION 2.CONNECTOR LOCATIONS FOR β SERIES AMPLIFIER

- 223 -

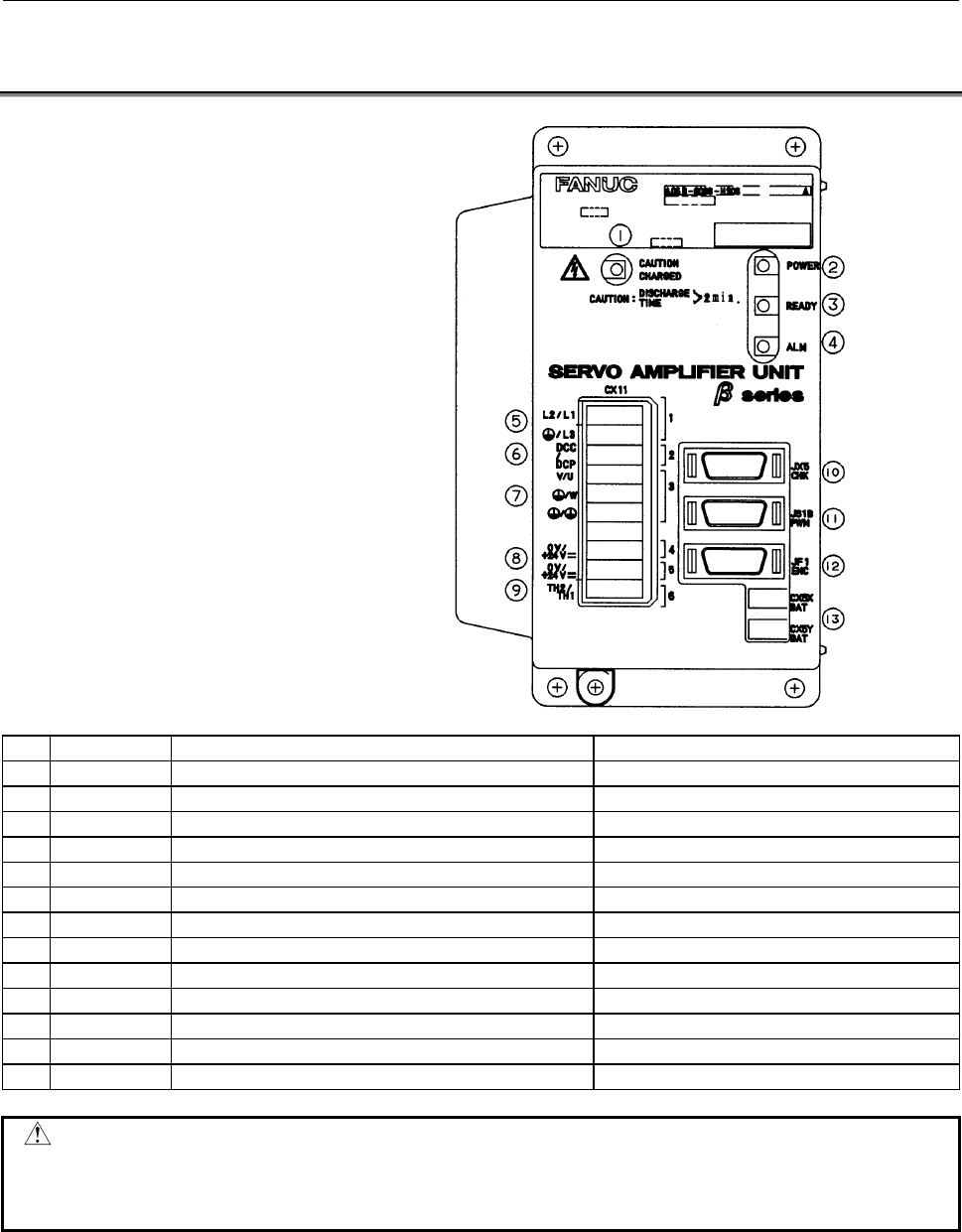

2.3 PWM INTERFACE (SVU4, SVU-12, SVU-20)

Name Description Remarks

<1> DC link charge indicator LED (Warning 1)

<2> POWER Control power status indicator LED

<3> READY Activation status indicator LED

<4> ALM Alarm status indicator LED

<5> CX11-1 Main power input connector

<6> CX11-2 Connector for regenerative resistor (DC link)

<7> CX11-3 Motor power line connector

<8> CX11-4,5 24V power input/output connector Both connectors have the same function.

<9> CX11-6 Connector for regenerative resistor (for overheat) (Warning 2)

<10> JX5/CHK ESP connector & Signal check connector For the servo check pin board

<11> JS1B/PWM NC interface connector Type B interface

<12> JF1/ENC Connector for Pulsecoder connection

<13> CX5X,CX5Y Connector for ABS Pulsecoder battery

WARNING

1 It is dangerous to touch any cables and components inside the module while this

LED is lit. Never touch components or cables while this LED is lit.

2 Refer to Section 4.7 for details.
