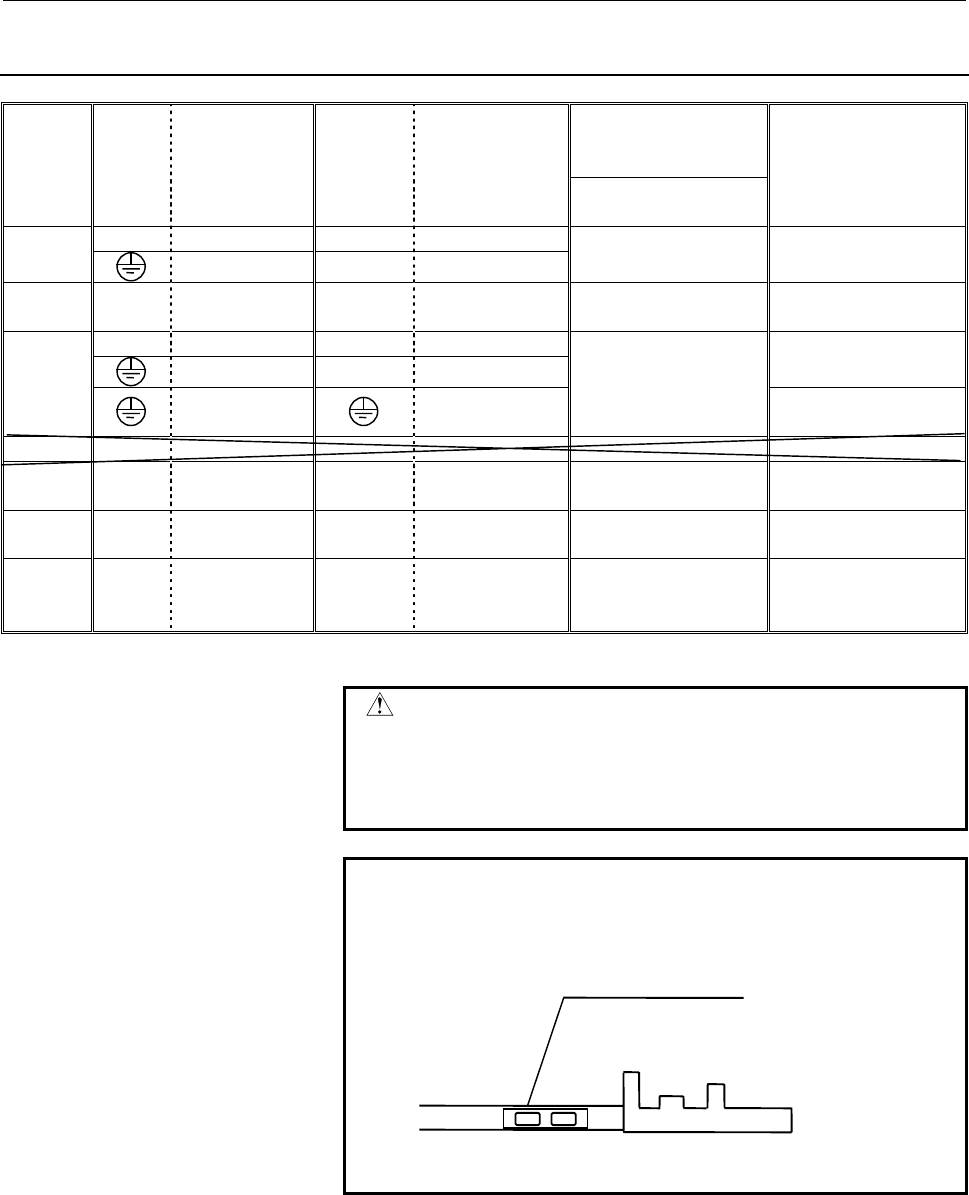

2.CONNECTOR LOCATIONS FOR β SERIES AMPLIFIER CONNECTION B-65232EN/03

- 226 -

2.4.2 When a Regenerative Resistor Is Used

Improved connector

kit

A06B-6093-K306

Silk

CX11

Signal

Housing pin

No.

Signal

Housing pin

No.

Model number of

housing

Specification

L2 A1 L1 B1 3φ 200VAC input

-1

A2 L3 B2

175363-3

1φ 220VAC input

-2 DCC A DCP B ---

(Caution)

Regenerative resistor

VA1 U B1

A2 W B2

Motor output

-3

A3 B3

1318095-2

Connected when α1

or α2 is used

-4 0V A +24V B 175362-1

Input of 24 VDC

control power

-5 0V A +24V B 175362-1

Input of 24 VDC

control power

-6 TH2 A TH1 B ---

(Caution)

Thermostat for

regenerative resistor

Housing manufacturer : tyco Electronics AMP

CAUTION

Connect the regenerative resistor cables (resistor

line and alarm signal line). If a wrong connection is

made, the amplifier can be damaged. Refer to

Section 4.7 for details.

NOTE

Mark cables with signal names using wire labels or

the like to prevent incorrect insertion.

[Example of marking]

Wire mark

(Indicate the signal name.)

DCP and DCC can be in either polarity.

TH1 and TH2 can be in either polarity.
