Servo Motor Beta Series Descriptions Page 85

Descriptions

Page of 337

/ 337

B-65232EN/03 DESCRIPTIONS FOR FANUC AC SERVO MOTOR β series 8.BUILT-IN BRAKE

- 55 -

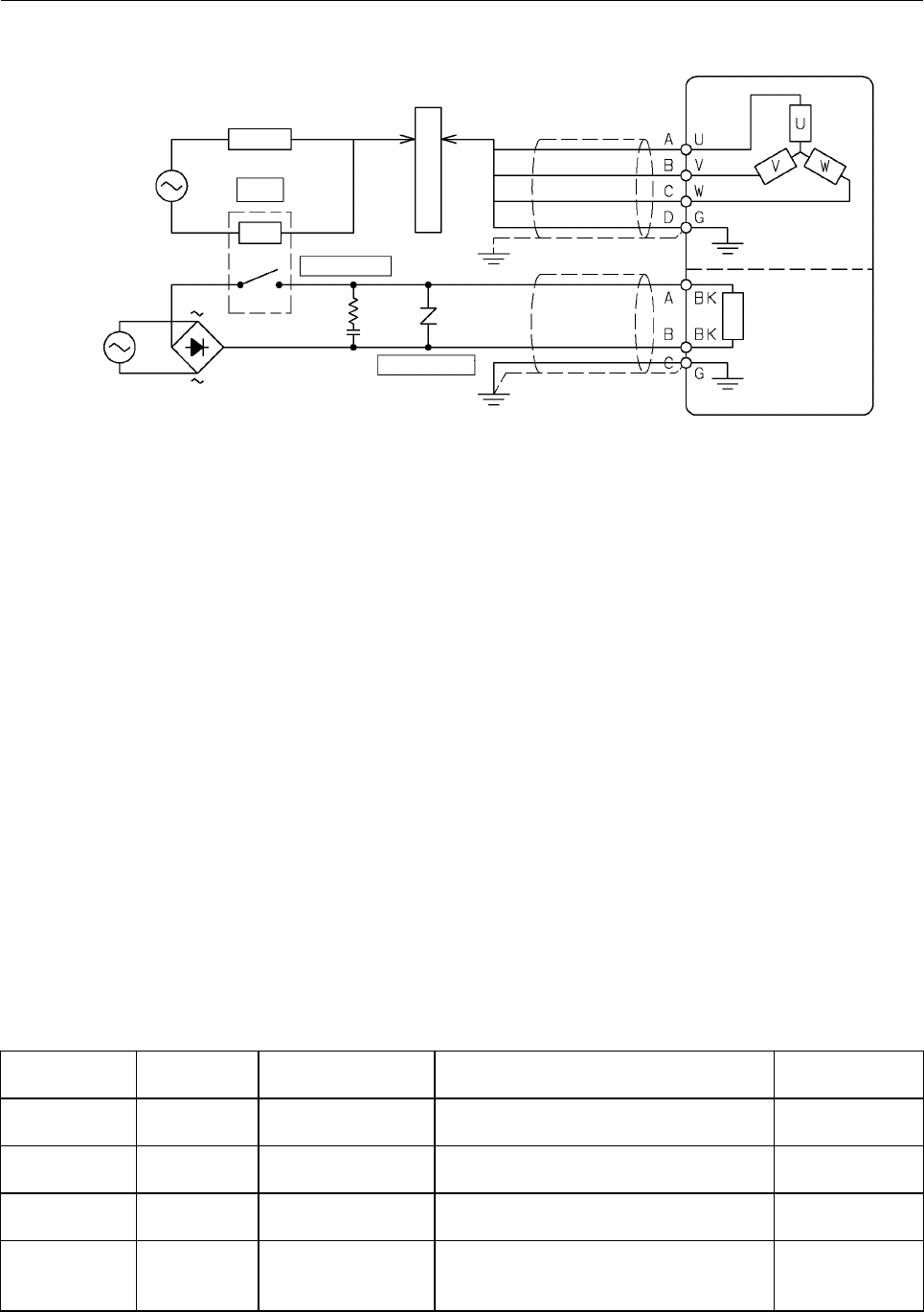

[Models β

ββ

β1 to β

ββ

β6]

200VAC

Circuit breaker, etc

Relay

Coil

Contact

Spark killer

Surge absorber

Motor

coil

Ground

(to motor body)

Brake coil

(No polarity is

applied.)

Servo amplifier

Ground

(to motor body)

100VAC

Notes

(1) Use a full-wave rectified power of 100 VAC or use 90 VDC as

the brake power for the β series servo motor. Do not use a half-

wave rectified power of 200 VAC, because brake components

such as a surge absorber can be damaged.

(2) When full-wave rectification is used, carefully check the power

supply capacity and supply voltage variation and ensure that the

variation in voltage applied to the brake at conduction time is

within 90 Vrms ±10%.

Be sure to prepare and select the suitable input taps on the

primary side of the transformer according to the power supply

voltage, such as 100-110-120 VAC or 200-220-240 VAC.

(4) When the contact is set on the DC side (position shown in the

figure), the life of the contact is generally reduced due to a surge

voltage generated at brake-off time. Ensure that the contact has a

sufficient capacity. Moreover, use a surge absorber and spark

killer to protect the contact.

(5) The brake coil has no polarity. When making a brake coil

connection, the user need not be concerned with the positive and

negative poles of the power.

(6) Use a shielded cable as required.

The table below indicates the recommended components and

specifications of the brake circuit for the β series servo motor.

Item Stock number Manufacture Specification

FANUC

specification

Switch - -

Rated capacity

500 VAC, 5 A or more

Surge absorber ERZV20D221

Matsushita Electric

Industrial Co., Ltd.

Varistor voltage 220 V

Maximum allowable voltage 140 VAC

A06B-6050-K113

Spark killer S2-A-0

Okaya Electric

Industries Co., Ltd.

500Ω/0.2µF

Breakdown voltage 400 V or more

Rectifier D3SB60

Shindengen Electric

Manufacturing Co.,

Ltd.

Breakdown voltage 400 V or more

Maximum output current 2.3 A (with no fin)

A06B-6050-K112
