  2. FANUC AC Servo Software 90D3 Series, 90E3 Series Learning Control for Parts cutting, Operator

FANUC AC Servo Software 90D3 Series, 90E3 Series Learning Control for Parts cutting, Operator Additional Manual Page 10

Additional Manual
Title 90D3 / 90E3 Learning Control
for Parts cutting Operator’s Manual
Draw No.
A - 63639E - 115
01 ’05.04.05 K.Maeda Newly designed Sheet 010
Edit Date Design Description / 018

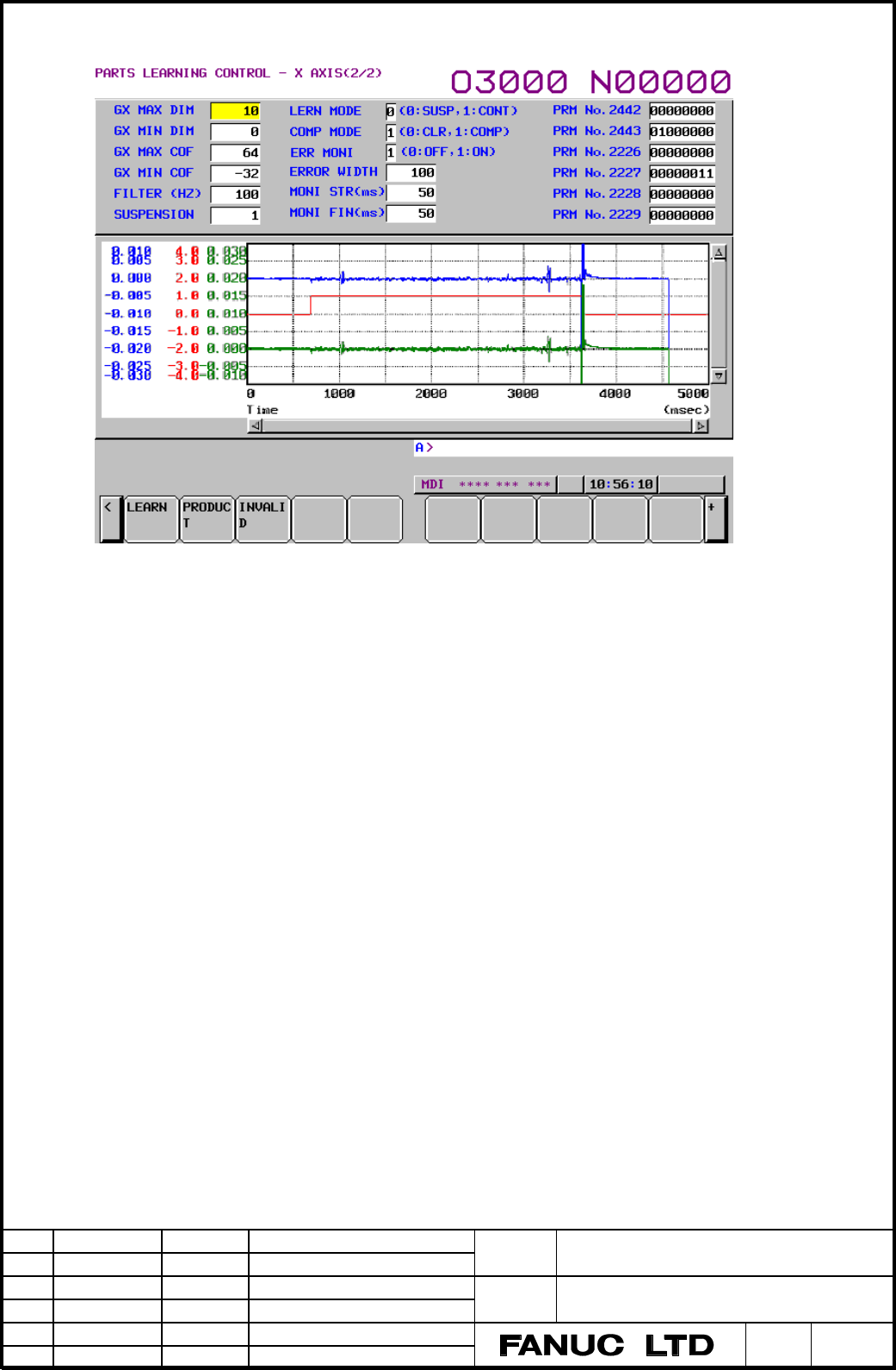

[Monitor screen 2]
(Note) Gx means dynamic characteristic compensation elements.
c [GX MAX DIM] Setting maximum order of Gx (Parameter No.2526).
d [GX MIN DIM] Setting minimum order of Gx (Parameter No.2527).
e [GX MAX COF] Setting maximum coefficient of Gx (Parameter No.2528).
f [GX MIN COF] Setting minimum coefficient of Gx (Parameter No.2529).
g [FILTER(HZ)] Setting band of low pass filter (Parameter No.2512).
h [SUSPENSION] Setting Learning suspension count (Parameter No.2513).
1 is Learning mode. 0 is product mode.
i [LERN MODE] Setting Learning mode (Parameter No.2443#4). Usually you should set 0.
j [COMP MODE] Setting Compensation mode (Parameter No.2443#6). Usually you should set 1.
In case of clearing Learning data, this bit set to 0. And after clearing, this bit set to 1.
k [ERROR MONI] Setting the position error monitoring (Parameter No.2227#1).
l [ERROR WIDTH] Setting the error monitoring threshold level (Parameter No.2550) by detection unit.
n [MONI STR(ms)] Setting Monitoring start time (Parameter No.2551).
o [MONI FIN(ms)] Setting Monitoring finish time (Parameter No.2552).
p [PRM No.] Setting function bits for Learning control.
q Data drawing Please refer o of [Monitor screen 1].
e
c
d
f
g
h
i
j
k
l
p
q
n
o
