FANUC AC Servo Software 90D3 Series, 90E3 Series Learning Control for Parts cutting, Operator Additional Manual Page 6

Additional Manual
Title 90D3 / 90E3 Learning Control
for Parts cutting Operator’s Manual
Draw No.
A - 63639E - 115
01 ’05.04.05 K.Maeda Newly designed Sheet 06
Edit Date Design Description / 018

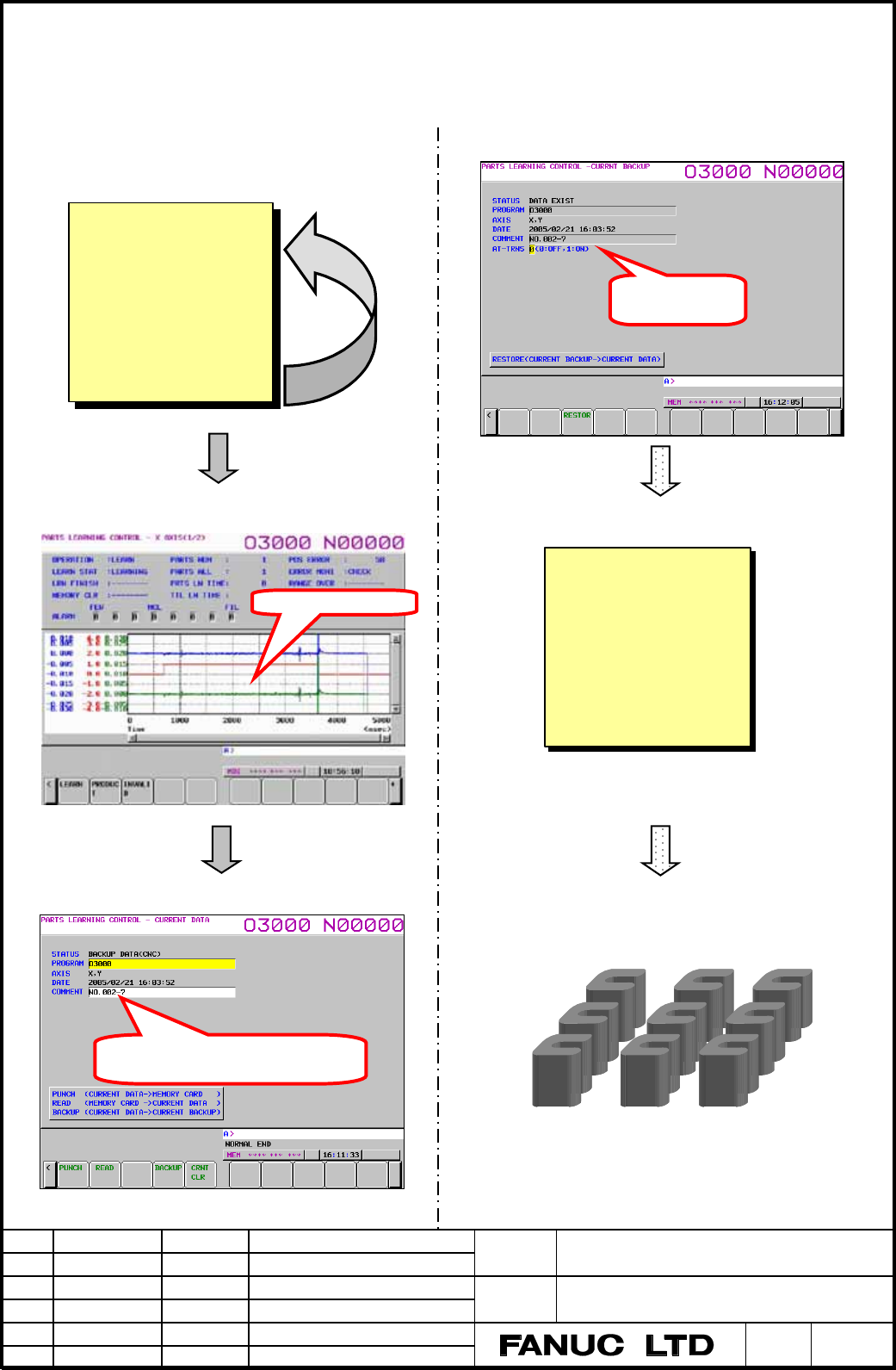

5. Enforcement sequence
Learning data is created by the repetition execution of NC program in Learning mode. After the mode is
switched to Product mode, mass product is done.
[Learning mode] [Product mode]
c To monitor position error under repeating c Learning data is loaded on Current backup screen.
NC program. (from 5 to 10 repeating)
d Achievement by requires precision d Executing NC program
e Store Learning data e Mass product
Information of
Learning data
Information of Learning data
corresponding to NC program
X
, Y position erro
r
NC program
G01 Z-10. F4000
G5.6 Pn (Start)
G02 X0. Y13. R13.
X0. Y-13. R13.
⋅⋅⋅⋅⋅
G5.5 (Finish)
⋅⋅⋅⋅⋅
NC program
G01 Z-10. F4000
G5.6 Pn (Start)
G02 X0. Y13. R13.
X0. Y-13. R13.
⋅⋅⋅⋅⋅
G5.5 (Finish)
⋅⋅⋅⋅⋅
NC Program
G01 Z-10. F4000
G5.6 Pn (Start)
G02 X0. Y13. R13.
X13. Y0. R13.
⋅⋅⋅⋅⋅
G5.5 (Finish)
⋅⋅⋅⋅⋅
NC Program
G01 Z-10. F4000
G5.6 Pn (Start)
G02 X0. Y13. R13.
X13. Y0. R13.
⋅⋅⋅⋅⋅
G5.5 (Finish)
⋅⋅⋅⋅⋅
Repeating
Check position error
Load Learning data finish
Select Current data
Screen
Previous page
Next page
