FANUC AC Servo Software 90D3 Series, 90E3 Series Learning Control for Parts cutting, Operator Additional Manual Page 11

Additional Manual
Title 90D3 / 90E3 Learning Control
for Parts cutting Operator’s Manual
Draw No.
A - 63639E - 115
01 ’05.04.05 K.Maeda Newly designed Sheet 011
Edit Date Design Description / 018

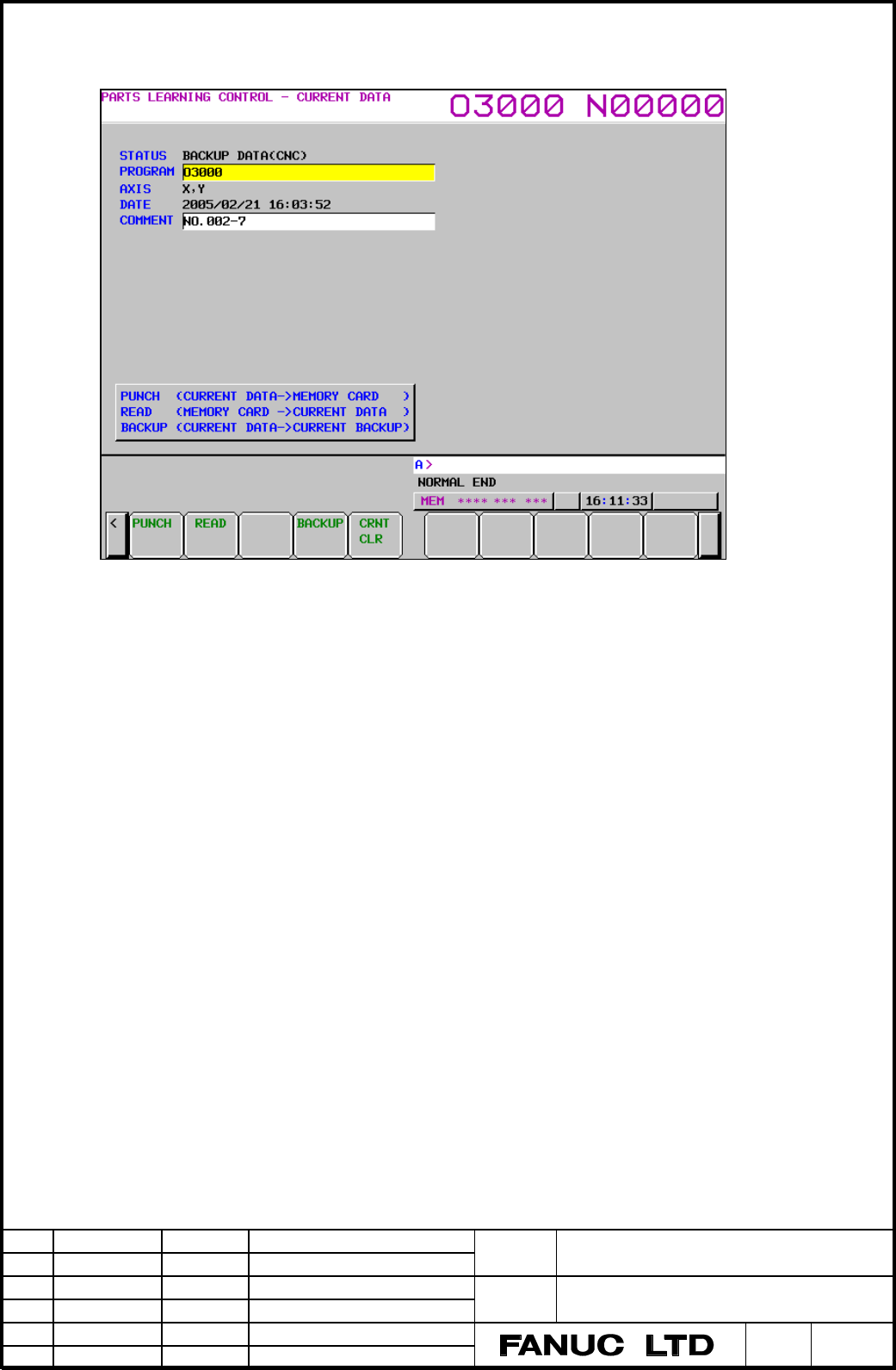

[Current data screen]
c [STATUS] Current data (Learning data) is displayed what status.
• NO DATA : Data does not exist.
• CLEARING : Data is clearing.
• WRITING : Data is writing. (Executing Learning control)
• UPDATED DATA : Writing data is completed. Data has not been backed up.
• TRANSFERRING(***%) : Data is transferring. *** is transfer percentage.
• BACKUP DATA (CNC) : Data is the same as back up data in CNC (current data).
• BACKUP DATA (CARD) : Data is the same as back up data in memory card.
• BACKUP DATA (PC) : Data is the same as back up data in PC.
d [PROGRAM] Setting NC program name corresponding with current data. When Learning is
executed, this item is set automatically.
e [AXIS] Axis name of Learning axis is displayed.
f [DATE] Date of updated current data is displayed. When Learning is executed, this item is set
automatically.
g [COMENT] Setting comment.
h Explanation Explanation of soft key is displayed.
i Soft key It is possible to operate it as follows.
• [PUNCH] :Current data is transferred to memory card.
• [READ] :Current data is transferred from memory card.
• [BACKUP] :Current data is transferred to current backup.
• [CRNT CLR] :Current data is cleared.
PUNCH or READ is executed on EDIT mode or emergency stop. The transfer is
cancelled by reset operation.
BACKUP is not executed as follows. The transfer is cancelled by the soft-key [STOP].
• Executing Learning control
• Clearing Learning data
e
c
d
f
g
h
i
Previous page
Next page
