  2. FANUC AC Servo Software 90D3 Series, 90E3 Series Learning Control for Parts cutting, Operator

FANUC AC Servo Software 90D3 Series, 90E3 Series Learning Control for Parts cutting, Operator Additional Manual Page 9

Additional Manual
Title 90D3 / 90E3 Learning Control
for Parts cutting Operator’s Manual
Draw No.
A - 63639E - 115
01 ’05.04.05 K.Maeda Newly designed Sheet 09
Edit Date Design Description / 018

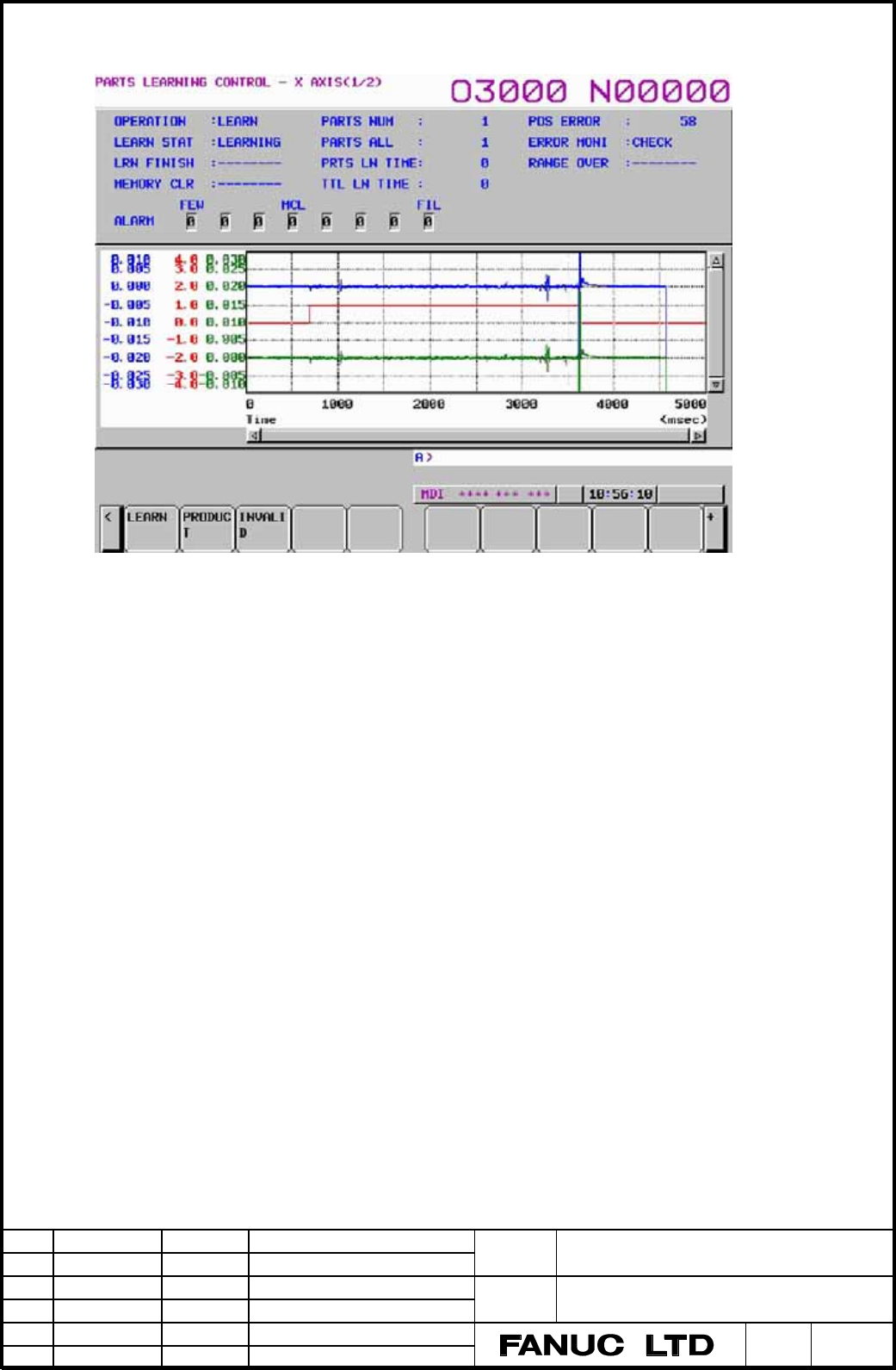

[Monitor screen 1]
c [LEARN STAT] [LEARN] is displayed during executing Learning control.
d [ERROR MONI] [CHECK] is displayed during monitoring position error.
e [RANGE OVER] [OVER] is displayed when position error is over setting range.
It is latched until next Learning start.
f [MEMORY CLR] [CLR] is displayed during clearing Learning data.
g [PARTS NUM] Executing parts number is displayed.
h [PARTS ALL] Maximum parts number is displayed.
i [POS ERROR] Position error (Diagnosis Screen No.300) is displayed.
j [CYCLE (ms)] Time from start to finish in active parts number is displayed.
k [ERROR WIDTH] Setting the error monitoring threshold level (Parameter No.2550) by detection unit.
l [ERROR MONI] Setting the position error monitoring (Parameter No.2227#1).
n [ALARM STATUS] Detail alarm status is displayed when Learning alarm happens.
• FIL : Alarm in band check of low pass filter
• MCL : Alarm in memory clear
• FEW : Alarm of memory shortage
o Graph display This graph display is the same as Y-time graph of servo guide mate. The graph of
position error, Learning flag, etc. can be displayed. The setting of graph display is set at
servo guide mate screen. The setting of Learning flag is as follows.
• TYPE of SET CHANNEL : 59(S2ST4)
• OPERATION of OPERATION & GRAPH : 9(BIT)
• INPUT2 of OPERATION & GRAPH : 25(BIT15)
Please refer to maintenance manual (B-63945JA/02) for other setting.
If LCD is 8.4” or 7.2”, this graph display does not use. Therefore please display the
graph at the servo guide mate.
e
c
d
f
g
h
i
j
k
l
o
p
n
