FANUC AC Servo Software 90D3 Series, 90E3 Series Learning Control for Parts cutting, Operator Additional Manual Page 16

Additional Manual
Title 90D3 / 90E3 Learning Control
for Parts cutting Operator’s Manual
Draw No.
A - 63639E - 115
01 ’05.04.05 K.Maeda Newly designed Sheet 016
Edit Date Design Description / 018
Data range : 0 to 32767
(Note) If this value is 0, position error monitoring function is not available.
Data range : 0 to 32767
Standard : 0
Data range : 0 to 32767
Standard : 0
This “position error monitoring function” is effective in case that you judge convergence of position error at
creating Learning data or in case that you judge easily work precision at mass production

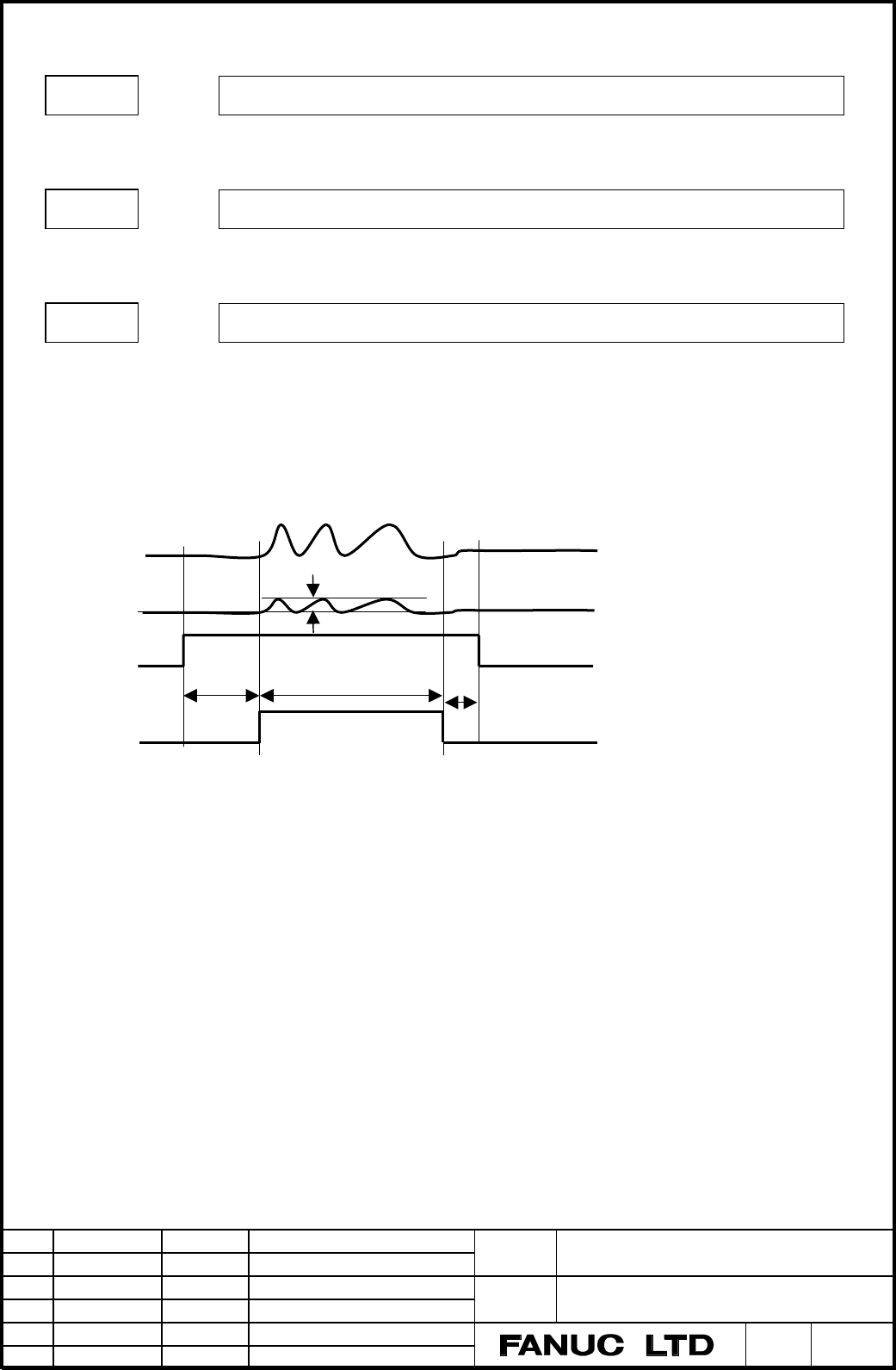

“Position error monitoring function“ is the following.
Command
Pos. error
Learning flag
Error monitoring
flag
(Note 1) If even position error once exceeds the threshold level during monitoring flag is 1, “range over flag”
does a latch to 1. Servo software does not clear this flag until next Learning flag becomes from 0 to 1.
(Note 2) “Range over flag” is output to outer signal F321. The bit position of F321 means NC axis number.
(Note 3) You should tune both “monitoring start time” and “monitoring finish time” within the range that is not
influence in cutting precision to avoid becoming range over in case of excess reply in the movement
beginning or stop.
2550
LERRLV Error monitoring level (detective unit)
2551
ERMOST Error monitoring start time (msec)
2552
ERMOFN Error monitoring finish time (msec)
Monitoring
start time
Monitorin
Threshold level
→ If absolute value of erro
r
exceeds No.2550, Range
over flag rises.
0
G5.6
G5.5
Monitoring
finish time
→ Monitoring flag rises during
monitoring.
