Title 90D3 / 90E3 Learning Control
for Parts cutting Operator’s Manual
Draw No.
A - 63639E - 115
01 ’05.04.05 K.Maeda Newly designed Sheet 012
Edit Date Design Description / 018
• Transferring Learning data

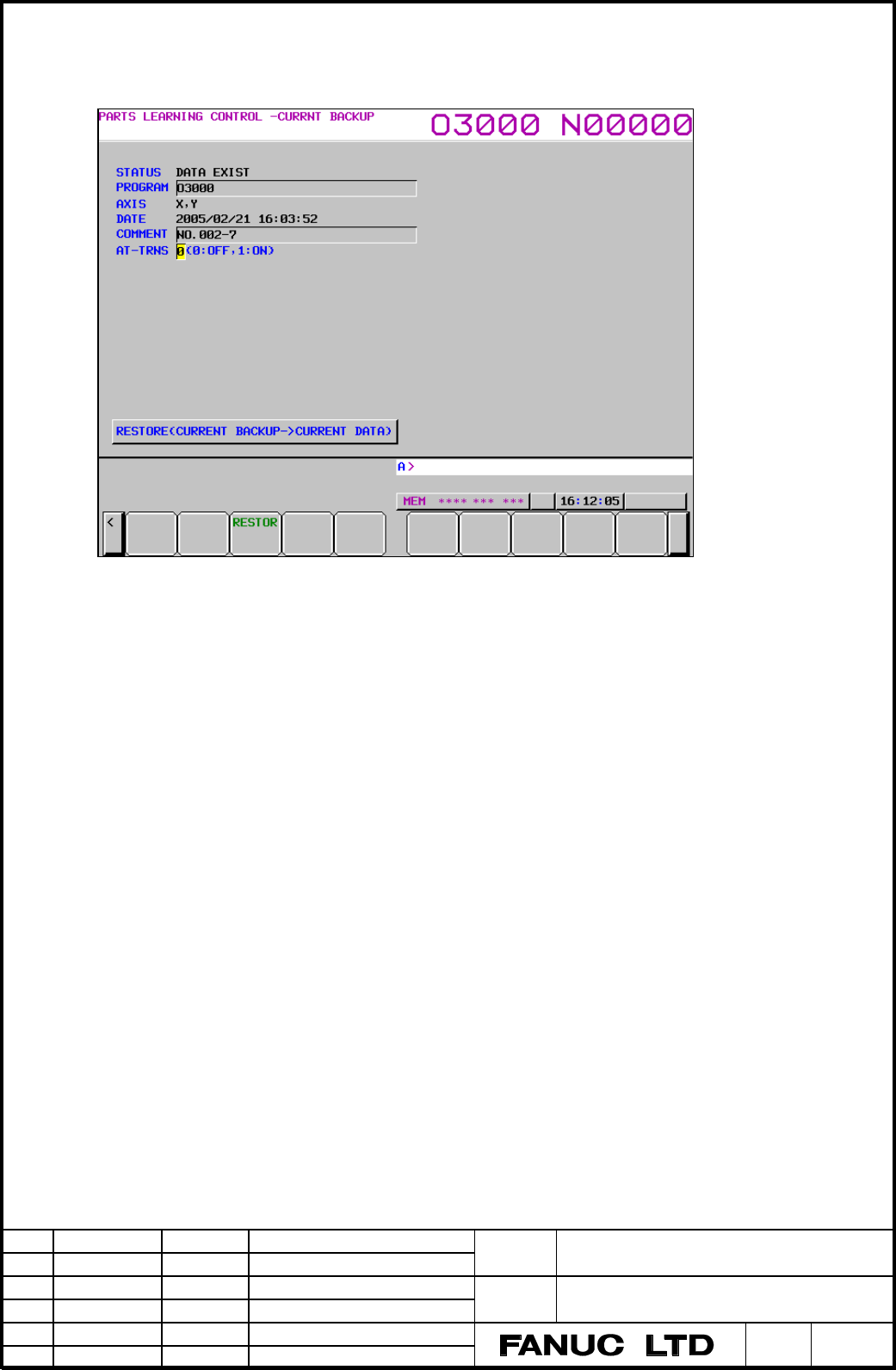

[Current backup screen]
c [STATUS] Current data (Learning data) is displayed what status.
• NO DATA : Data does not exist.
• DATA EXIST : Data exist.
• TRANSFERRING(***%) : Data is transferring. *** is transfer percentage.
d [AT-TRNS] Setting automatic restore of current backup.
e Soft key Current backup is transferred to current data by soft-key [RESTORE].
RESTORE is not executed as follows. The transfer is cancelled by the soft-key [STOP].
• Executing Learning control
• Clearing Learning data
• Transferring Learning data
Other items are the same as the current data screen.
