  2. FANUC AC Servo Software 90D3 Series, 90E3 Series Learning Control for Parts cutting, Operator

FANUC AC Servo Software 90D3 Series, 90E3 Series Learning Control for Parts cutting, Operator Additional Manual Page 18

Additional Manual
Title 90D3 / 90E3 Learning Control
for Parts cutting Operator’s Manual
Draw No.
A - 63639E - 115
01 ’05.04.05 K.Maeda Newly designed Sheet 018
Edit Date Design Description / 018
(6) Transfer time of Learning data
Please refer the following transfer time for Learning data of maximum Learning time (262sec). When
Learning data is transferred with memory card, transfer time might be change by the memory card used.
Transfer status Two Learning axes Four Learning axes
c
Current data -> Current backup About 1min 46sec About 3min 13sec
d
Current data <- Current backup About 36sec About 53sec
e
Current data -> Memory card About 44sec About 1min 10sec
f
Current data <- Memory card About 1min 06sec About 1min 53sec
g
Current data -> PC About 1min 32sec About 2min 45sec
h
Current data <- PC About 1min 24sec About 2min 30sec

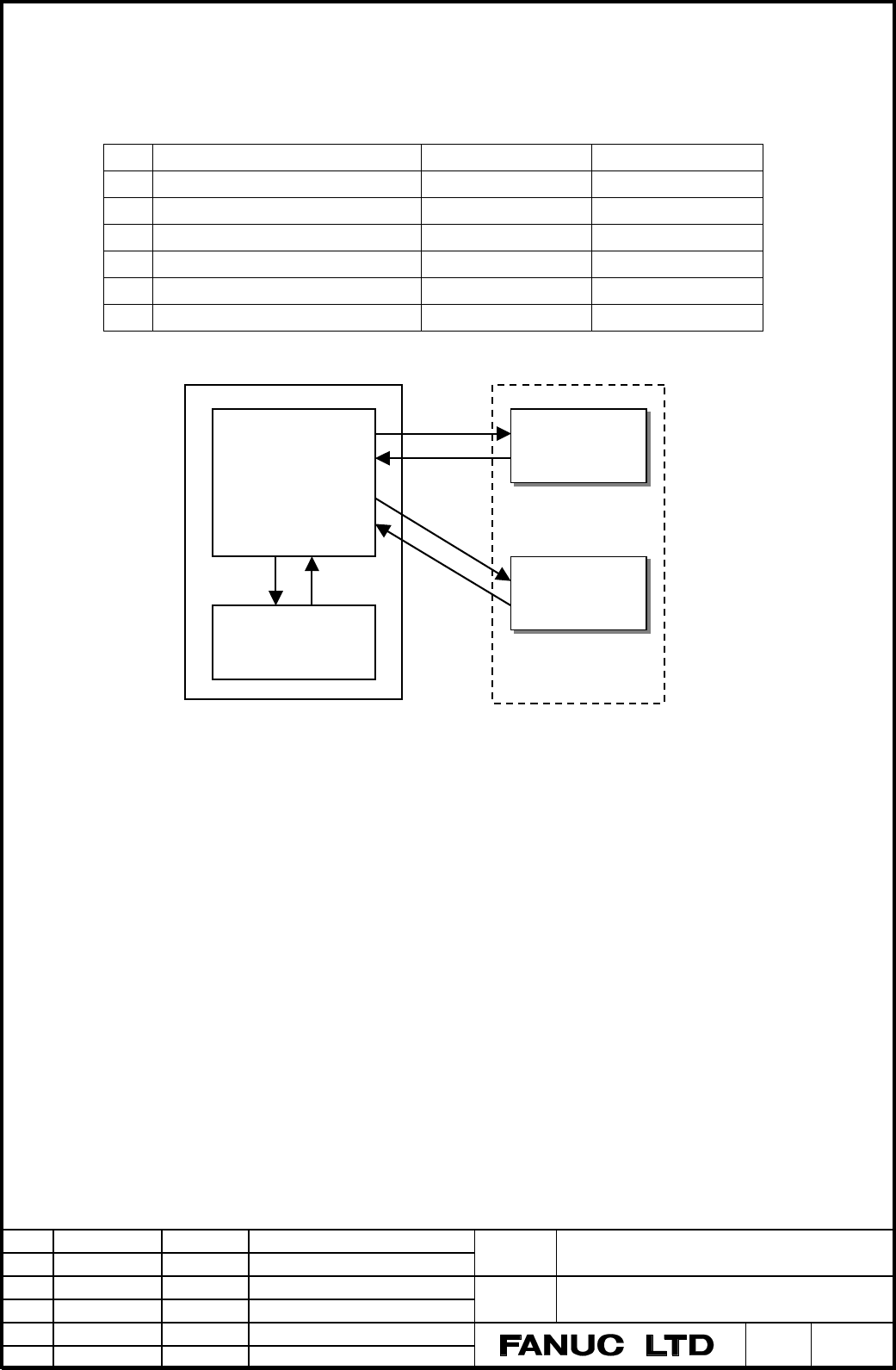

Current data
Volatile memory
CNC
e Back up
Current back up
Nonvolatile memory
f Restore
c Back up d Restore
PC
Memory card
g Back up
h Restore
Previous page
Next page
