PROGRAMMING

B–62094E/04

13. FUNCTIONS TO SIMPLIFY

PROGRAMMING

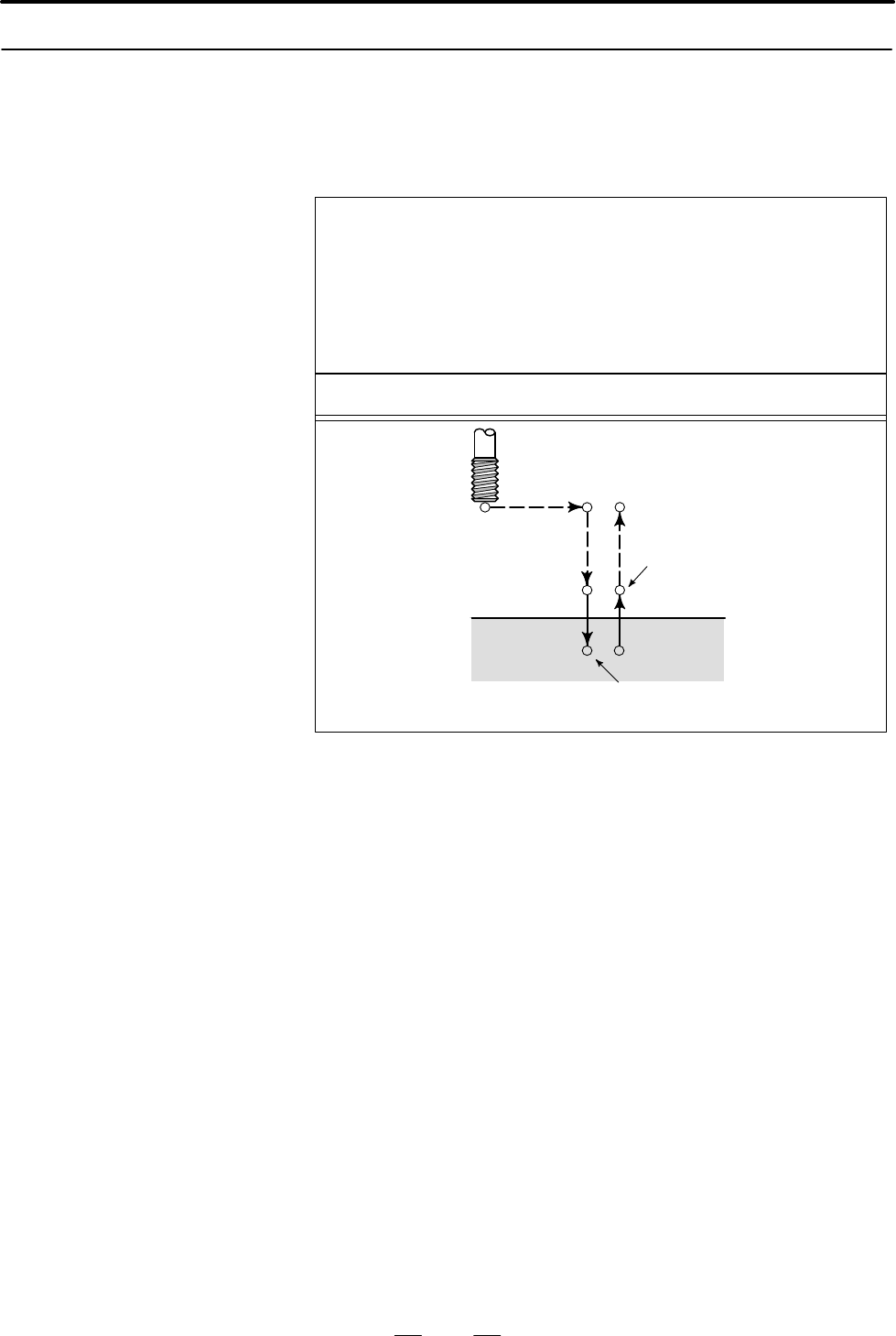

This cycle performs left–handed tapping. In the left–handed tapping

cycle, when the bottom of the hole has been reached, the spindle rotates

clockwise.

G74

G74 X_ Z_ R_ F_ ;

X_ : Hole position data

Z_ : The distance from point R to the bottom of the hole

R_ : The distance from the initial level to point R level

F_ : Cutting feedrate

Initial level

Point R

Point Z

Spindle

CCW

Spindle CW

Tapping is performed by turning the spindle counterclockwise. When the

bottom of the hole has been reached, the spindle is rotated clockwise for

retraction. This creates a reverse thread.

Feedrate overrides are ignored during left–handed tapping. A feed hold

does not stop the machine until the return operation is completed.

Before specifying G74, use a miscellaneous function (M code) to rotate

the spindle counterclockwise.

When the G74 command and an M code are specified in the same block,

the M code is executed at the time of the first positioning operation. The

system then proceeds to the next drilling operation.

When a tool length offset (G43, G44, or G49) is specified in the canned

cycle, the offset is applied at the time of positioning to point R.

13.1.2

Left–handed

Tapping Cycle (G74)

Format

Explanations
