POWER MATE-D/F Operators manual Page 354

Operators manual

Page of 475

/ 475

OPERATION

B–62094E/04

9. EDITING PROGRAMS

337

A new program can be created by copying part of a program.

Oxxxx

After copy

Oyyyy

Copy

Before copy

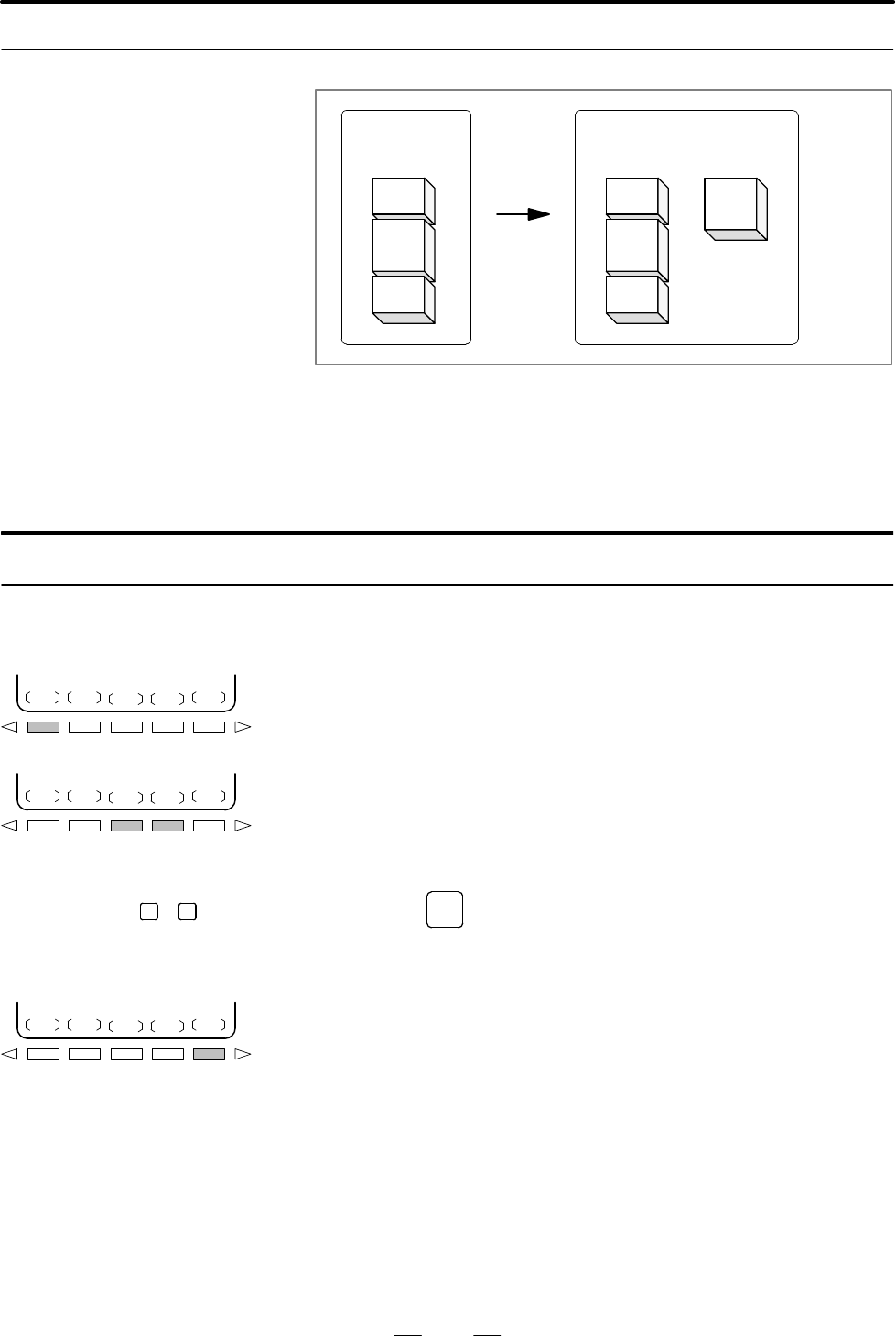

Fig. 9.6.2 Copying Part of a Program

In Fig. 9.6.2, part B of the program with program number xxxx is copied

to a newly created program with program number yyyy. The program for

which an editing range is specified remains unchanged after copy

operation.

Procedure for Copying Part of a Program

1 Perform steps 1 to 6 in subsection 9.6.1.

2 Move the cursor to the start of the range to be copied and press soft key

[CRSR~].

3 Move the cursor to the end of the range to be copied and press soft key

[~CRSR] or [~BTTM] (in the latter case, the range to the end of the

program is copied regardless of the position of the cursor).

4 Enter the number of the new program (with only numeric keys) and

press the

N-

key.

5 Press soft key

[EXEC].

9.6.2

Copying Part

of a Program

Procedure for CRT/MDI

CRSR

0 9

~CRSR ~BTTM

EXEC

Numeric keys
