OPERATION

2. OPERATIONAL DEVICES

B–62094E/04

214

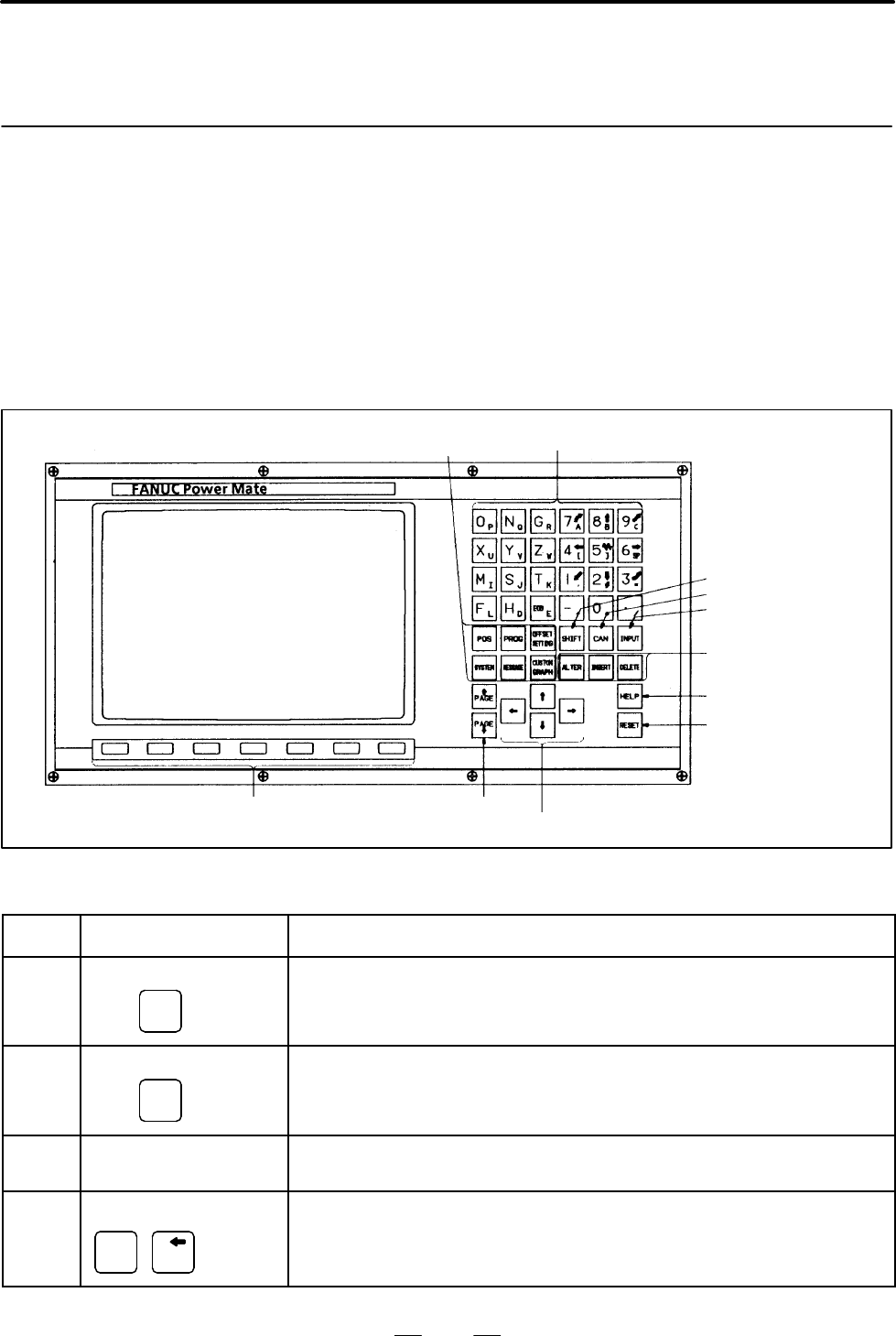

Figs. 2.1.1 show the CRT/MDI panel.

9″ small monochrome CRT/MDI panel (horizontal type) Fig.2.1.1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

(4) Soft keys

(5) Address/number keys

(6) Shift key

(8) Cancel key

(7) Input key

(9) Edit keys

(3) Help key

(2) Reset key

(12) Page keys

(11) Cursor move keys

(10) Function keys

Fig.2.1.1 CRT/MDI Panel

Table2.1.1 Explanation of the MDI keyboard

Number Name Explanation

1 RESET key

RESET

Press this key to reset the CNC, to cancel an alarm, etc.

2 HELP key

HELP

Press this button to use the help function when uncertain about the operation of

an MDI key (help function).

3 Soft keys The soft keys have various functions, according to the Applications. The soft key

functions are displayed at the bottom of the CRT screen.

4 Address and numeric keys

[

Press these keys to input alphabetic, numeric, and other characters.

2.1

DISPLAY PANEL

2.1.1

CRT/MDI Panel

 
