3.INTERPOLATION FUNCTION NC FUNCTION B-63942EN/02
- 122 -

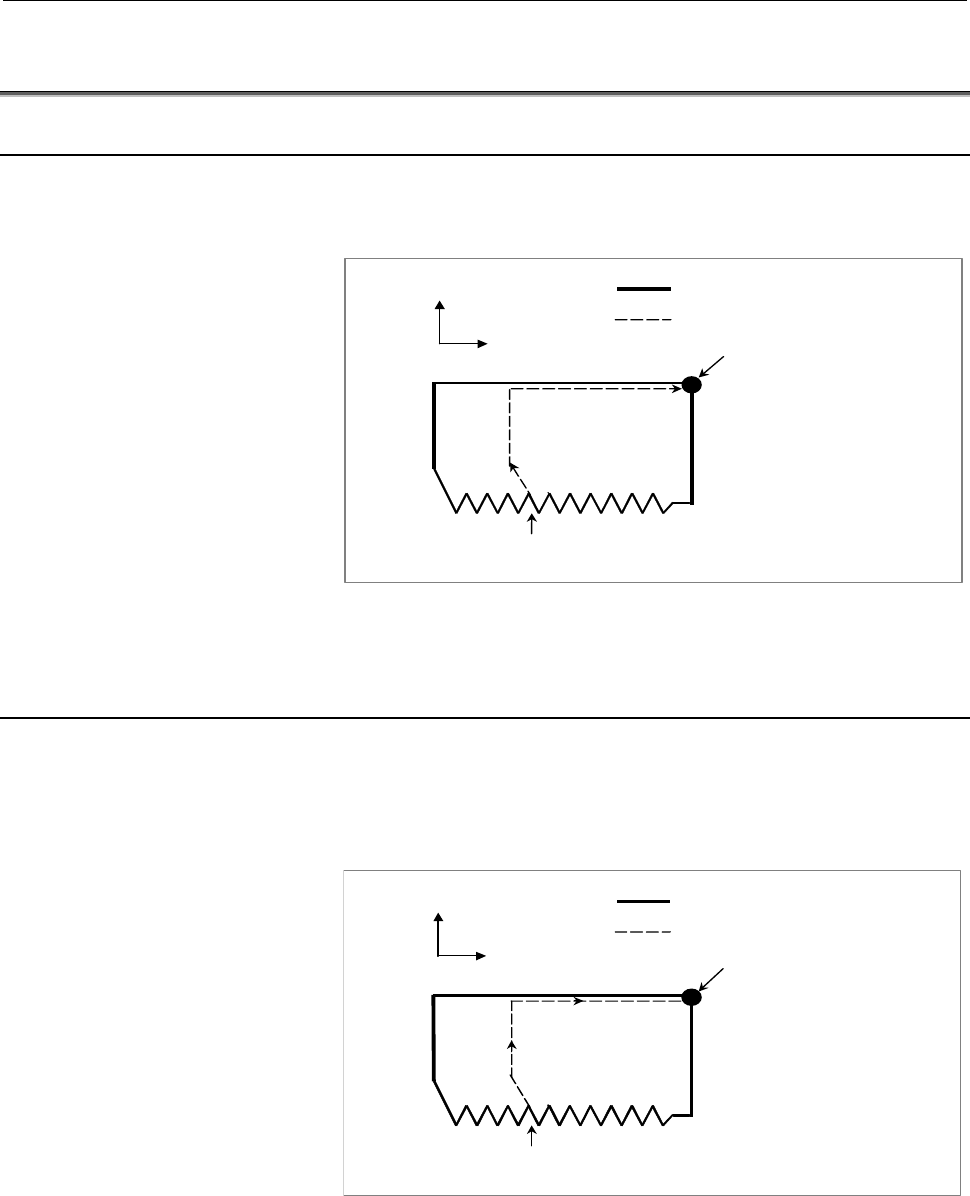

3.23 THREADING RETRACT
3.23.1 Threading Retract (Canned Cycle)
Feed hold may be applied during threading. In this case, the tool
immediately retracts with chamfering and returns to the start point on
the second axis (X-axis), then the first axis (Z-axis) on the plane.
Feed hold is effected here.
Start point
Ordinary cycle
Rapid traverse
Motion at feed hold
X axis
Z axis
Cutting feed
The amount of chamfering during retraction is the same as that of
chamfering at the end point.
3.23.2 Threading Retract (Multiple Repetitive Cycle)
If feed hold is applied during threading in the multiple repetitive
threading cycle (G76), chamfering for threading is performed and the
tool returns to the threading cycle start point and stops.
If a cycle start operation is performed here, machining restarts with
the threading cycle to which feed hold was applied.
Feed hold is applied at this point.
Cycle start point
Ordinary cycle
Rapid traverse
Motion at feed hold
X-axis
Z-axis
Cutting feed
The amount of chamfering during retraction is the same as that of
chamfering at the end point.
