Series 30i/300i/300is - Model A Descriptions Page 331

Descriptions

Page of 537

/ 537

B-63942EN/02 NC FUNCTION 8.TOOL FUNCTION / TOOL COMPENSATION FUNCTION

- 301 -

8.12 CUTTING POINT INTERPOLATION FOR CYLINDRICAL

INTERPOLATION

The conventional cylindrical interpolation function controls the tool

center so that the tool axis always moves along a specified path on the

cylindrical surface, towards the rotary axis (cylindrical axis) of the

workpiece. The cutting point interpolation for cylindrical interpolation

function controls the tool so that the tangent of the tool and the cutting

surface of a contour always passes the rotation center of the workpiece.

This means that the cutting surface of the contour is always

perpendicular to the cylinder. With this function, the figure on the

cutting surface can always be kept constant regardless of the cutter

compensation value of the tool used.

Format

This command is specified in the same way as for the

conventional cylindrical interpolation function.

G07.1 IPr ; Circular interpolation mode on start

(enabling cylindrical interpolation)

G07.1 IP0 ; Circular interpolation mode cancel

IP : One rotary axis address

r : Cylinder radius of rotary axis

Specify each of G07.1 IPr; and G07.1 IP0; singly in a block.

G107 can also be specified.

Explanation

- Comparison with conventional circular interpolation

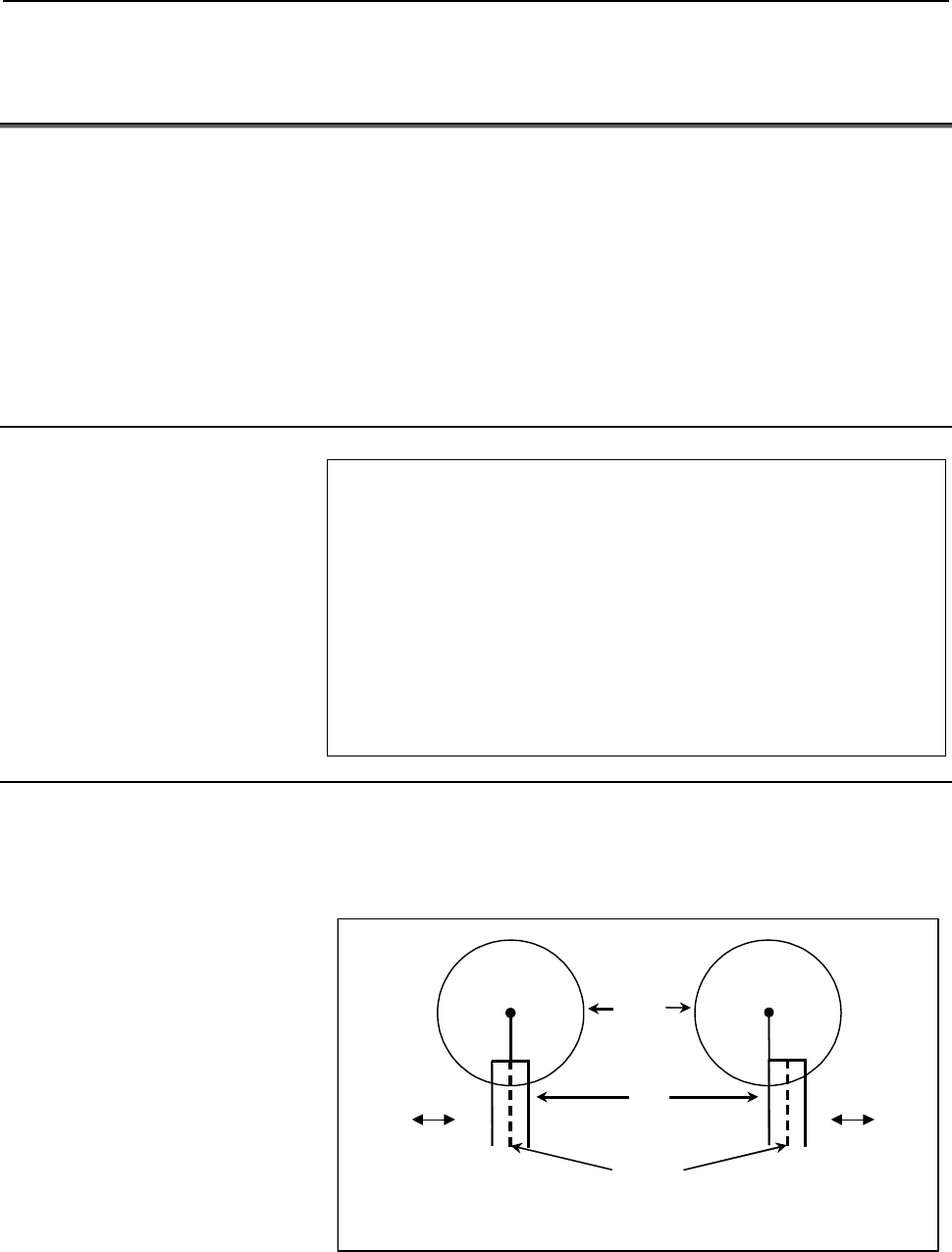

As shown in following figure, the tool is controlled in the offset axis

(Y-axis) direction that is perpendicular to the tool center and

workpiece rotation center.

Workpiece

Rotation

center

Rotation

center

Tool

Center of tool

Y-axis

Conventional cylindrical interpolation

Cylindrical interpolation with this function

Y-axis
