4.FEED FUNCTION NC FUNCTION B-63942EN/02

- 148 -

4.9 AUTOMATIC ACCELERATION/DECELERATION

To prevent a shock from occurring on the mechanical system,

acceleration/deceleration is automatically applied to the tool to enable

smooth starting and stopping when the tool starts and ends moving. In

addition, acceleration/deceleration is applied automatically when the

feedrate changes, so that the feedrate can be changed smoothly.

This means that no programming consideration is required for

acceleration/deceleration.

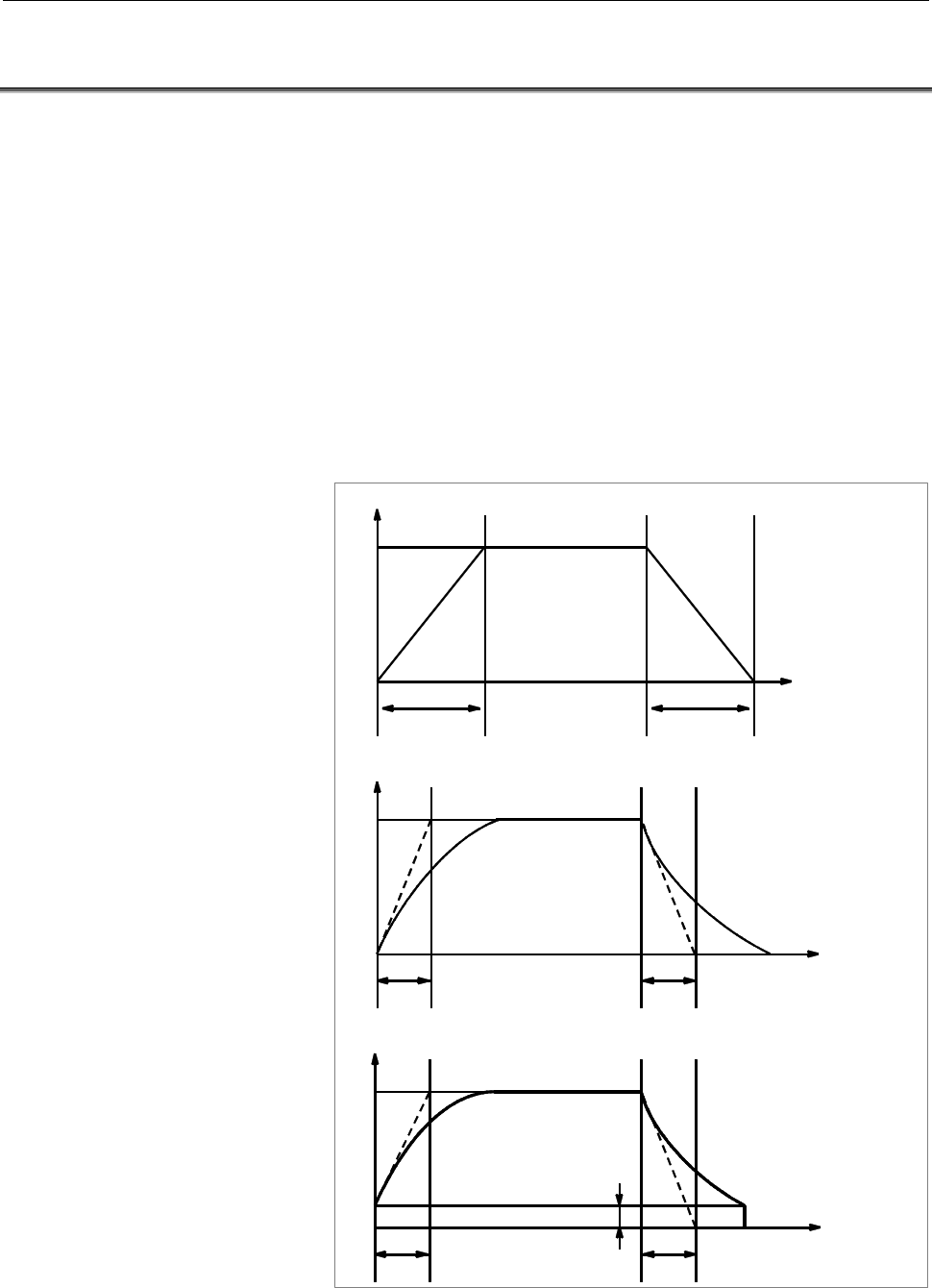

Rapid traverse : Linear acceleration/deceleration (time constant per

axis is set by parameter)

Cutting feed : Exponential acceleration/deceleration (time constant

per axis is set by parameter)

Jog feed : Exponential acceleration/deceleration (time constant

per axis is set by parameter)

Rapid traverse rate

Time

: Rapid traverse

rate

: Acceleration/

deceleration

time constant

for rapid

traverse rate

: Cutting feedrate

: Acceleration/

deceleration time

constant for a cutting

feedrate

Cutting feedrate

Time

Jog feedrate

Time

: Jog feedrate

: Acceleration/

deceleration time

constant for a jog

feedrate

: Deceleration stop

feedrate in jog feed
