B-63942EN/02 NC FUNCTION 1.CONTROLLED AXIS

- 55 -

1.22 CHOPPING FUNCTION

When contour grinding is performed, the chopping function can be

used to grind the side face of a workpiece. By means of this function,

while the grinding axis (the axis with the grinding wheel) is being

moved vertically, a contour program can be executed to initiate

movement along other axes.

In addition, a servo delay compensation function is supported for

chopping operations. When the grinding axis is moved vertically at

high speed, a servo delay and acceleration/deceleration delay occur.

These delays prevent the tool from actually reaching the specified

position. The servo delay compensation function compensates for any

displacement by increasing the feedrate. Thus, grinding can be

performed almost up to the specified position.

There are two types of chopping functions: that specified by

programming, and that activated by signal input. For details of the

chopping function activated by signal input, refer to the manual

provided by the machine tool builder.

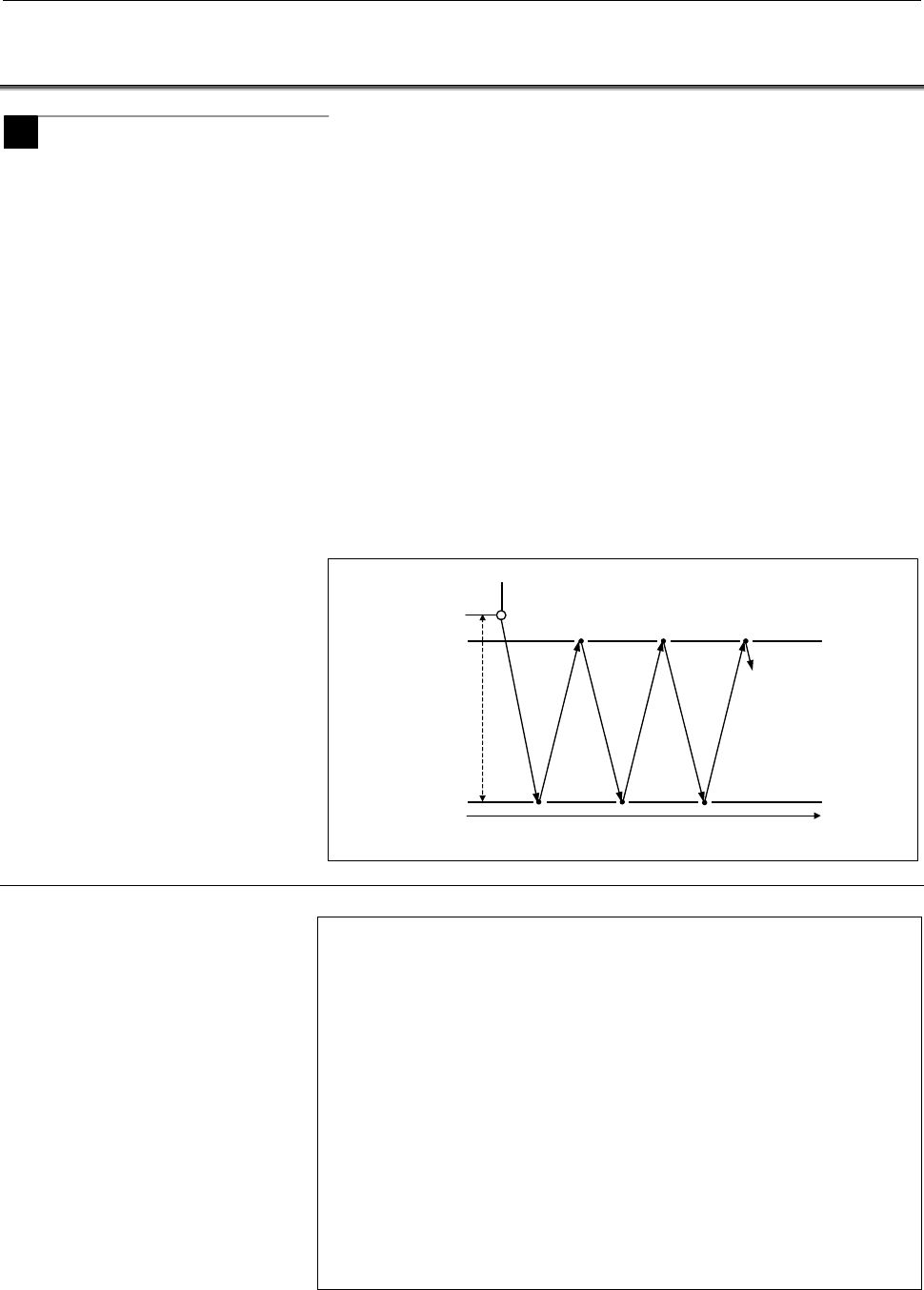

Point R

Upper dead point

Lower dead point

Time

Format

G81.1 Z_ Q_ R_ F_ ;

Z :Upper dead point

(For an axis other than the Z-axis, specify the axis

address.)

Q :Distance between the upper dead point and lower dead

point

(Specify the distance as an incremental value, relative to

the upper dead point.)

R :Distance from the upper dead point to point R

(Specify the distance as an incremental value, relative to

the upper dead point.)

F :Feedrate during chopping

G80 ; Cancels chopping
