B-63942EN/02 NC FUNCTION 5.PROGRAM INPUT

- 251 -

5.46 FIGURE COPY

Machining can be repeated after moving or rotating the figure using a

sub program.

Format

- Rotational copy

Xp-Yp plane (specified by G17) : G72.1 P_ L_ Xp_ Yp_ R_ ;

Zp-Xp plane (specified by G18) : G72.1 P_ L_ Zp_ Xp_ R_ ;

Yp-Zp plane (specified by G19) : G72.1 P_ L_ Yp_ Zp_ R _;

P :Sub program number

L :Number of times the operation is repeated

Xp :Center of rotation on the Xp axis

(Xp : X-axis or an axis parallel to the X-axis)

Yp :Center of rotation on the Yp axis

(Yp: Y-axis or an axis parallel to the Y-axis)

Zp :Center of rotation on the Zp axis

(Zp: Z-axis or an axis parallel to the Z-axis)

R :Angular displacement

(A positive value indicates a counterclockwise angular

displacement. Specify an incremental value.)

Specify a plane selection command (G17, G18, or G19) to

select the plane on which the rotational copy is made.

Start point

Main program

O1000 ;

N10 G92 X40.0 Y50.0 ;

N20 G00 G90 X_ Y_ ; (P0)

N30 G01 G17 G41 X_ Y_ D01 F10 ; (P1)

N40 G72.1 P2000 L3 X0 Y0 R120.0 ;

N50 G40 G01 X_ Y_ I_ J_ ; (P0)

N60 G00 X40.0 Y50.0 ;

N70 M30 ;

Sub program

O2000 G03 X_ Y_ R30.0 ; (P2)

N100 G01 X_ Y_ ; (P3)

N200 G03 X_ Y_ R10.0 ; (P4)

N300 G01 X_ Y_ ; (P5)

N400 G03 X_ Y_ R30.0 ; (P6)

N500 M99;

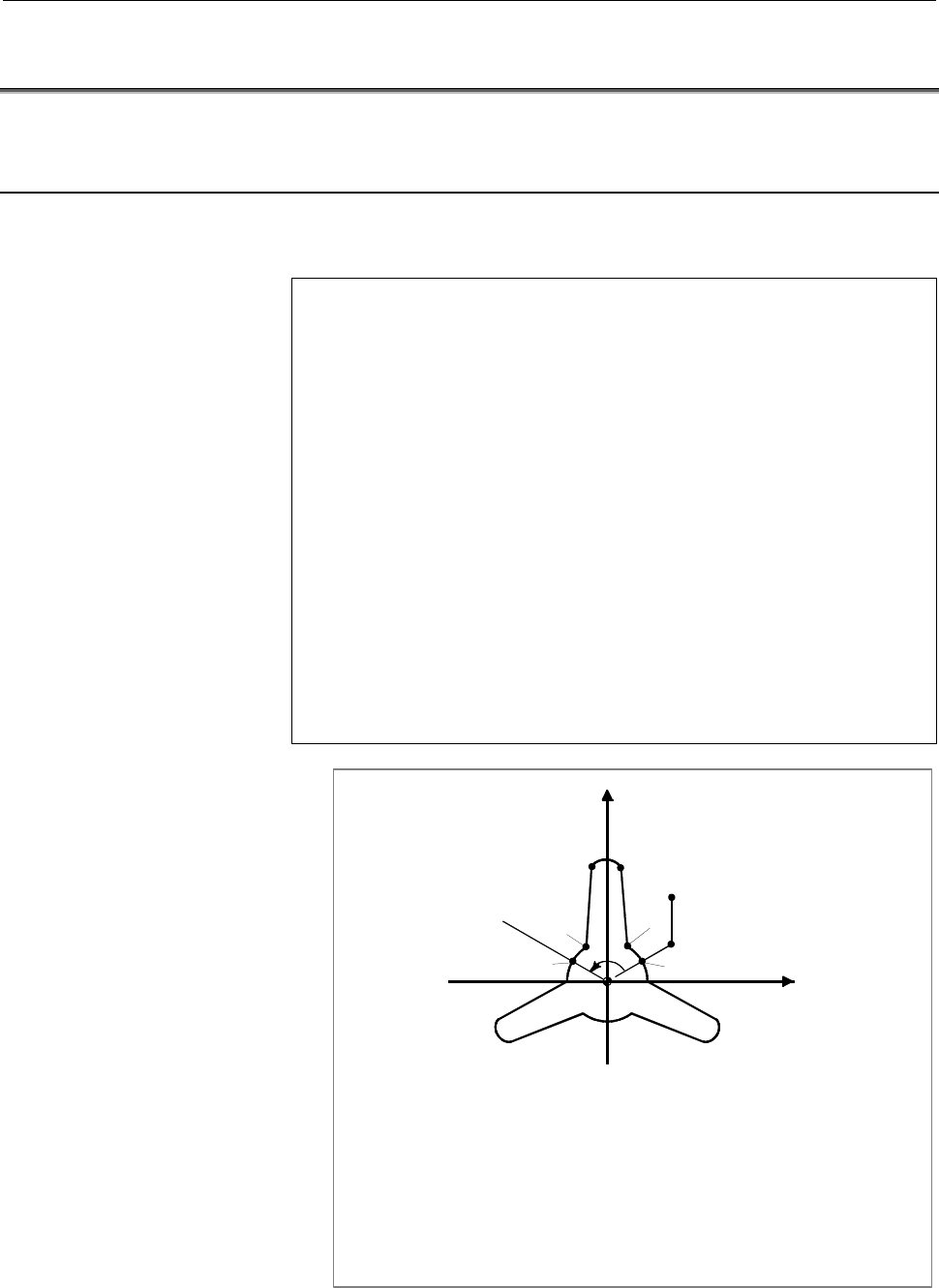

Fig. 5.46 (a) Example of rotation copy
