Series 30i/300i/300is - Model A Descriptions Page 80

Descriptions

Page of 537

/ 537

1.CONTROLLED AXIS NC FUNCTION B-63942EN/02

- 50 -

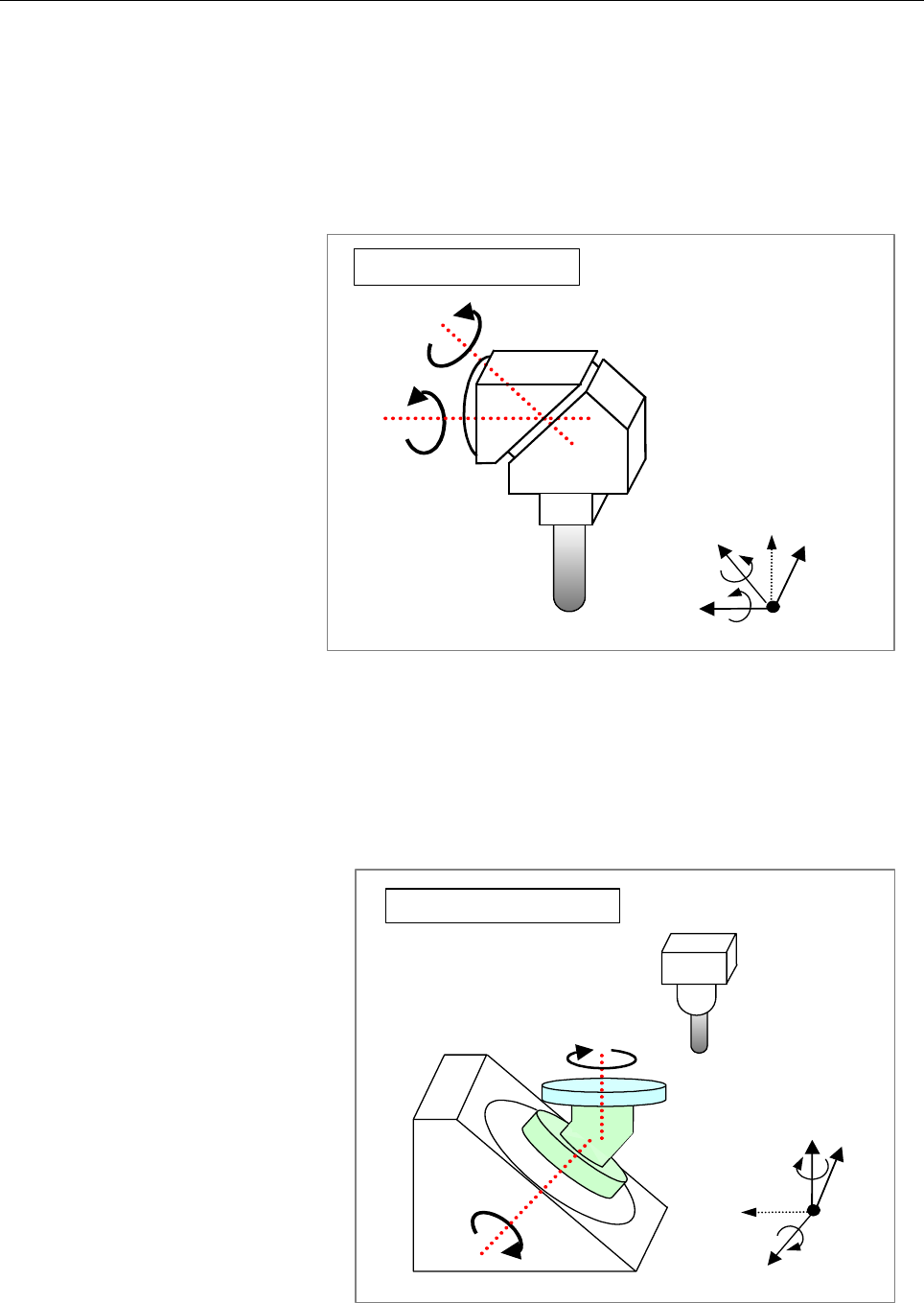

The machine shown in following figure has rotary axis B (master) that

turns around the Y-axis and rotary axis C (slave) whose Y-axis is

inclined at an angle of 45 degrees on the Y-Z plane.

The tilted working plane command / tool center point control function

for 5-axis machining / cutter compensation for 5-axis machining /

manual handle feed for 5-axis machining can be used even for the

machine configuration shown in following figure

Tool rotation type machine

Fig. 1.16 (b) Example of tool rotation type machine

The machine shown in following figure has rotary axis B (master)

whose Y-axis is inclined at an angle of -45 degrees on the Y-Z plane

and rotary axis C (slave) that turns around the Z-axis.

The tilted working plane command / tool center point control function

for 5-axis machining / cutter compensation for 5-axis machining /

manual handle feed for 5-axis machining can be used even for the

machine configuration shown in following figure.

Table rotation type machine

Fig. 1.16 (c) Example of table rotation type machine
