B-63942EN/02 NC FUNCTION 5.PROGRAM INPUT

- 245 -

5.42 COORDINATE SYSTEM ROTATION

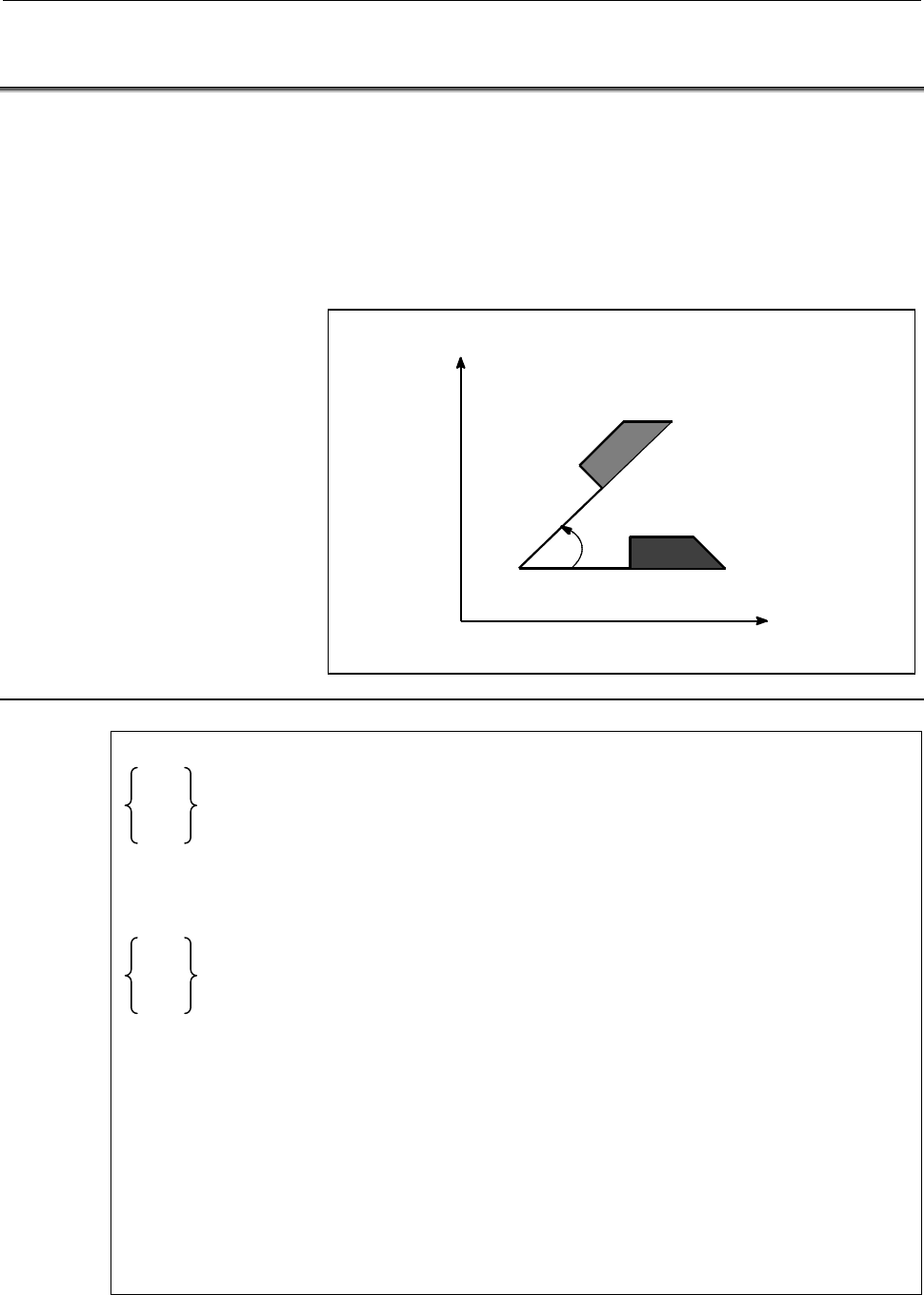

A programmed shape can be rotated. By using this function it

becomes possible, for example, to modify a program using a rotation

command when a workpiece has been placed with some angle rotated

from the programmed position on the machine. Further, when there is

a pattern comprising some identical shapes in the positions rotated

from a shape, the time required for programming and the length of the

program can be reduced by preparing a sub program of the shape and

calling it after rotation.

ngle of rotation

Center of rotation

Format

For M series

G17

G18 G68 α_ β_ R_ ; Start rotation of a coordinate system.

G19

: Coordinate system rotation mode

G69 ; Coordinate system rotation cancel command

For T series

G17

G18 G68.1 α_ β_ R_ ; Start rotation of a coordinate system.

G19

: Coordinate system rotation mode

G69.1 ; Coordinate system rotation cancel command

G17 (G18 or G19) : Select the plane in which contains the figure to be rotated.

α, β : Specify two coordinates (from among X, Y, and Z) of the rotation center that

match G17, G18, and G19. The values specified as the coordinates of the

rotation center must always be absolute values.

R : Specifies the rotation angle as an absolute value. Counterclockwise rotation

is assumed to be positive. However, setting parameter enables the use of

an incremental value.

Unit : 0.001 deg

Valid data range : -360,000 to +360,000
