1.CONTROLLED AXIS NC FUNCTION B-63942EN/02

- 46 -

- Superimposed Control

To the travel distance on an axis (slave axis) for which an ordinary

move command is executed, the travel distance on the axis (master

axis) of another path is added. Superimposed control resembles

synchronous control. In superimposed control, however, a movement

on the slave axis can be specified with a command for the path to

which the slave axis belongs.

The master axis and slave axis may belong to the same path, or the

master axis may belong to one axis and the slave axis may belong to

another. Moreover, multiple slave axes can be specified for one

master axis. By parameter setting, the move directions on the master

axis and slave axis can be reversed from each other.

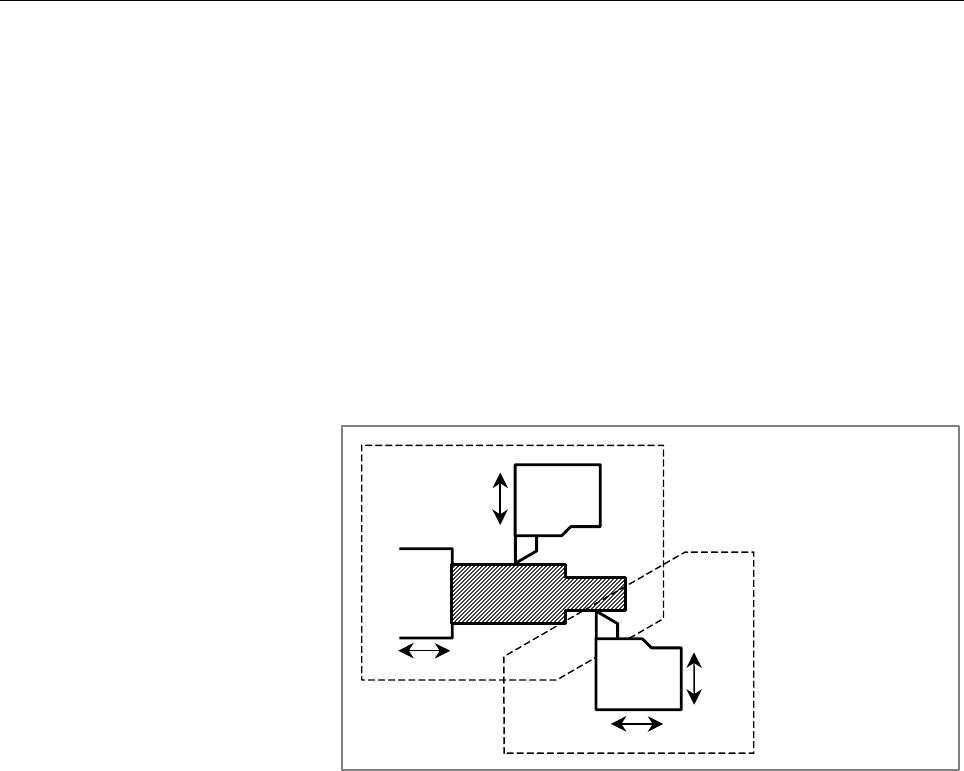

Example)

A move command for the Z1 axis of path 1 is superimposed on

the travel distance on the Z2 axis of path 2.

Workpiece

Turret 1

Machining according to

a program for path 1

Turret 2

Machining according to

a program for path 2
