3.INTERPOLATION FUNCTION NC FUNCTION B-63942EN/02

- 132 -

3.30 REFERENCE POSITION RETURN

3.30.1 Automatic Reference Position Return

- Return to reference position (G28)

With the G28 command, the commanded axis is positioned to the

reference position via the commanded intermediate point. After

positioning, the reference position return end lamp lights.

The reference position must be set in parameter (with the coordinates

specified in the machine coordinate system,) before issuing the G28

command.

The tool moves to the intermediate point or reference position at the

rapid traverse rate.

For the tool path up to the intermediate point, a selection can be made

between nonlinear interpolation type positioning or linear

interpolation type positioning.

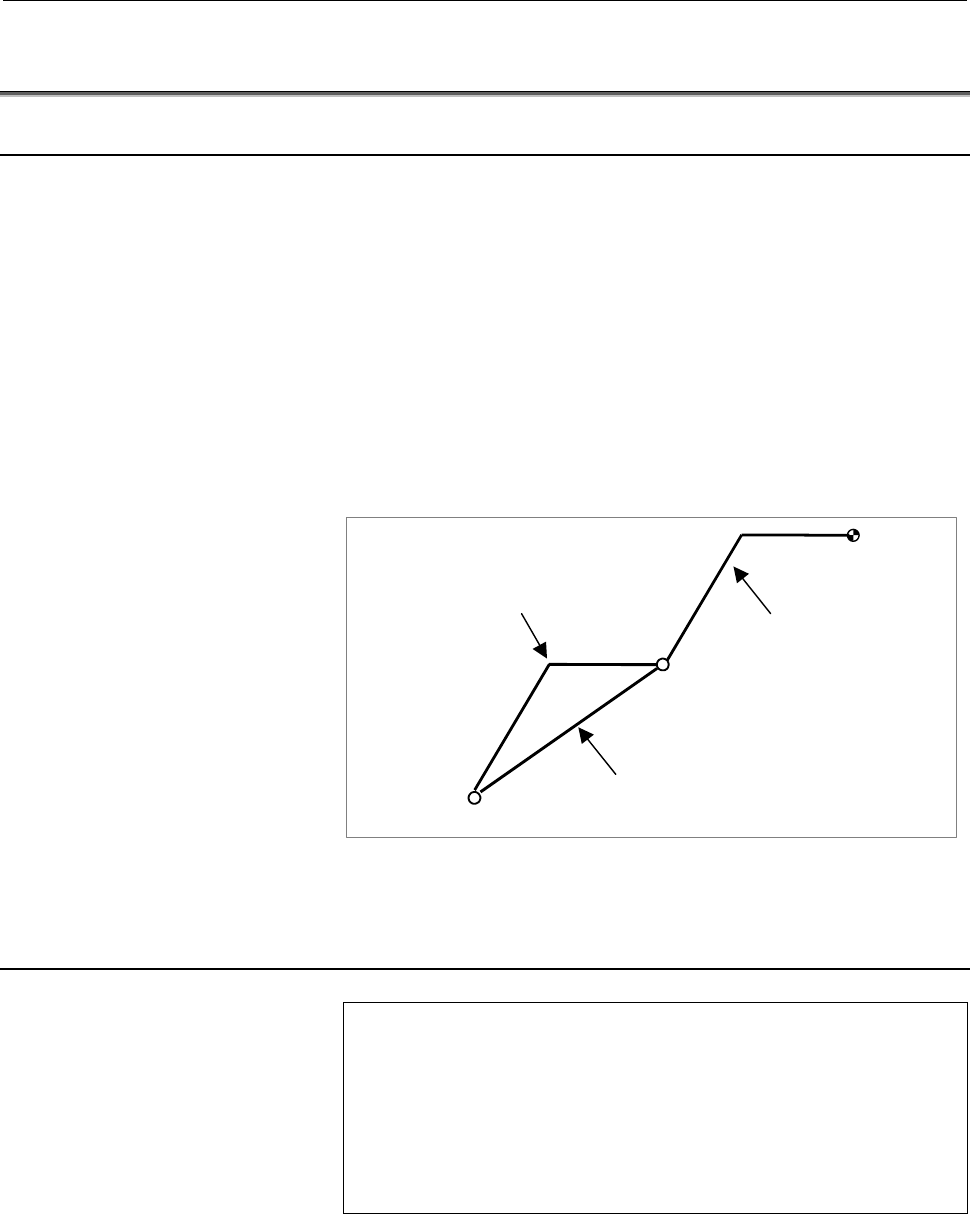

Intermediate point

Nonlinear interpolation type positioning

Start point

Linear interpolation type positioning

Nonlinear interpolation

type positioning

Reference position

By parameter setting, linear interpolation positioning can be specified

also for the tool path from the intermediate point to the reference

position.

Format

G28 IP_ ;

IP_ : Specify the intermediate position in the absolute

coordinate system.

(absolute/incremental programming)

There is no need to calculate an actual travel distance

between the intermediate position and the reference

position.
