1.16 INCLINED ROTARY AXIS CONTROL

The conventional tilted working plane command / tool center point

control function for 5-axis machining / cutter compensation for 5-axis

machining / manual handle feed for 5-axis machining are used only

for those machines whose tool rotation axis or table rotation axis is

parallel to the basic axis of the basic coordinate system.

Inclined rotary axis control is intended to allow the tilted working

plane command / tool center point control function for 5-axis

machining / cutter compensation for 5-axis machining / manual handle

feed for 5-axis machining to be applied even when the tool rotation

axis or table rotation axis is inclined with respect to the X-Y plane, a

Y-Z plane or a Z-X plane of the machine coordinate system.

<2> Table rotation type machine

<3> Mixed-type machine

<1> Tool rotation type machine

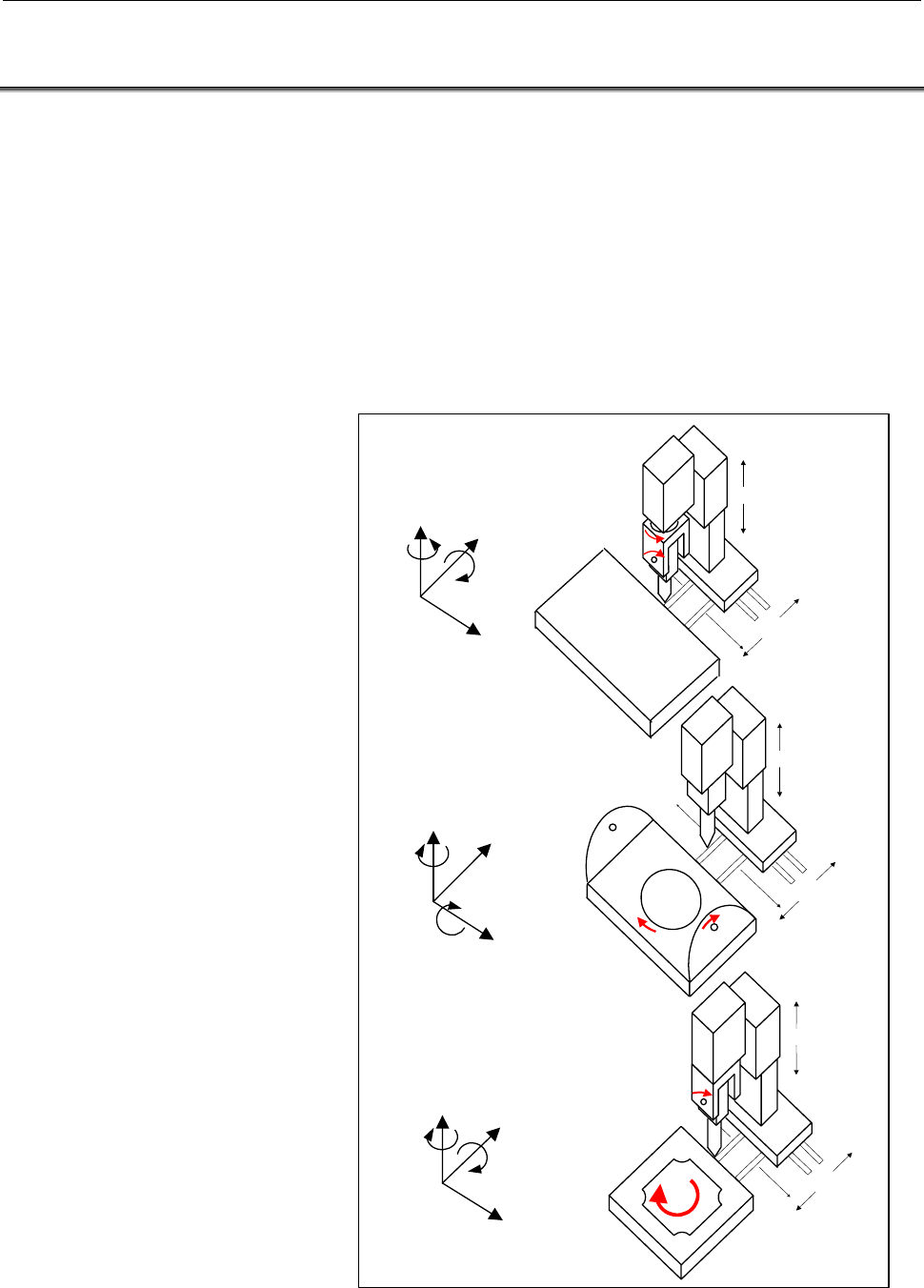

Fig. 1.16 (a) Three types of 5-axis machine
