5.PROGRAM INPUT NC FUNCTION B-63942EN/02

- 220 -

5.35.2 Threading Cycle

Format

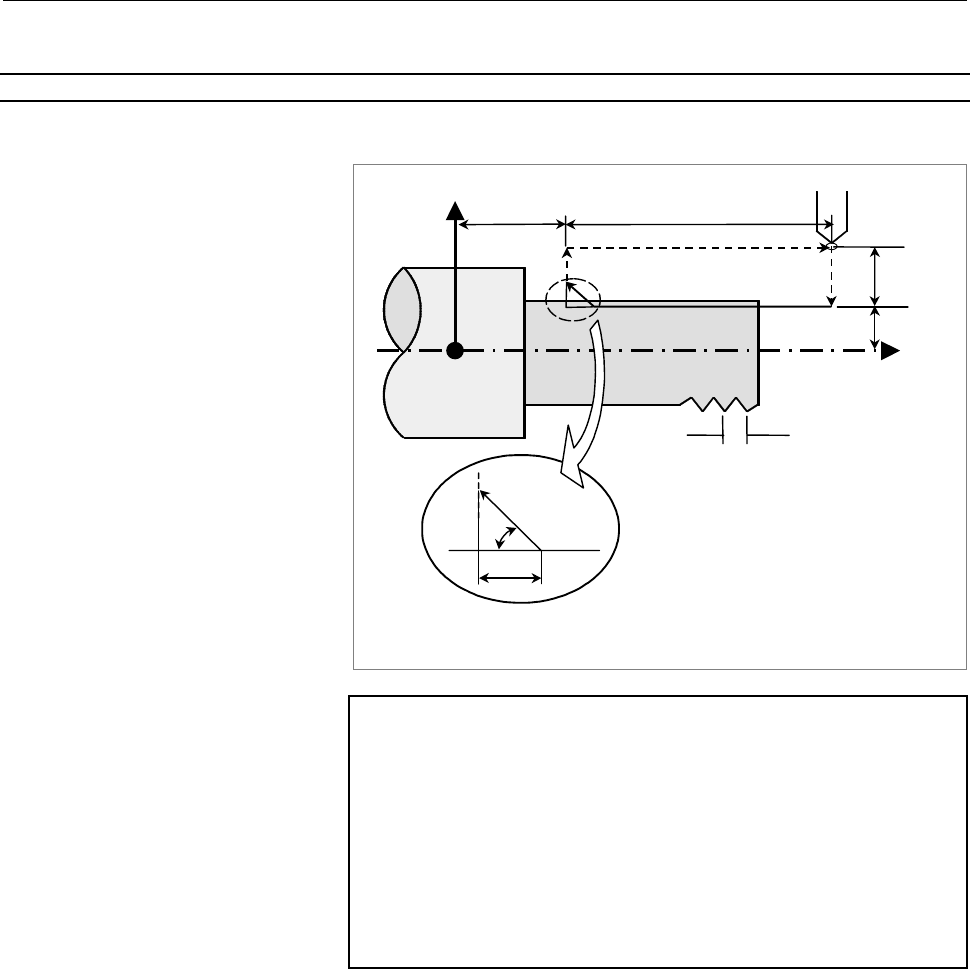

- Straight threading cycle

X/2

X axis

Z axis

1(R)

2(F)

3(R)

4(R)

Detailed chamfered thread

(The chamfered angle in the left figure is 45

degrees or less because of the delay in the

servo system.)

Approx.

45°

(R) ... Rapid traverse

(F).... Cutting feed

’

U/2

G78 X(U)_ Z(W)_ F_ Q_ ; (G90 with G code system A)

X_,Z_ : Coordinates of the cutting end point (point A' in the

above figure) in the direction of the length

U_,W_ : Travel distance to the cutting end point (point A' in

the above figure) in the direction of the length

Q_ : Angle for shifting the threading start angle

(Increment: 0.001 degrees,

Valid setting range: 0 to 360 degrees)

F_ : Thread lead (L in the above figure)
