0i-TC Operators manual Page 171

Operators manual

Page of 848

/ 848

PROGRAMMING

B–64114EN/01

13. FUNCTIONS TO SIMPLIFY

PROGRAMMING

145

Type II differs from type I in the following : The profile need not show

monotone increase or monotone decrease along the X axis, and it may

have up to 10 concaves (pockets).

A P/S alarm (No. 068) is issued if 11 or more concaves are set.

12310

......

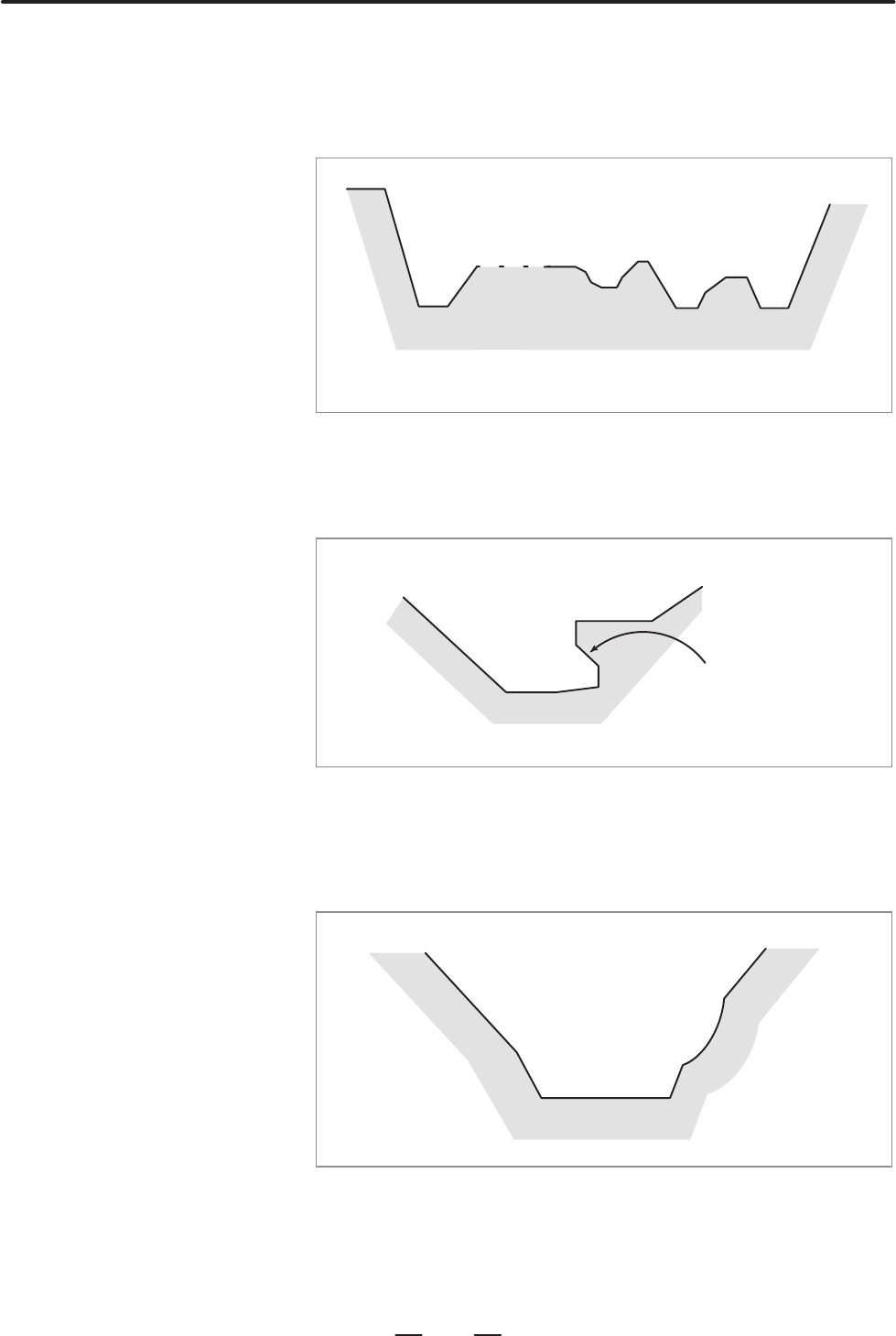

Fig. 13.2.1 (b) Number of pockets in stock removal in turning (Type II)

Note that, however, the profile must have monotone decrease or increase

along the Z axis. The following profile cannot be machined:

Monotone change is not

observed along the Z axis

Fig. 13.2.1 (c) Figure which cannot be machined in stock removal in

turning (Type II)

The first cut portion need not be vertical ; any profile is permitted if

monotone change is shown along the Z axis.

Fig. 13.2.1 (d) Figure which can be machined (Monotonic change) in

stock removal in turning (Type II)

After turning, a clearance is provided by cutting along the workpiece

profile.

D Type II
