PROGRAMMING

B–64114EN/01

13. FUNCTIONS TO SIMPLIFY

PROGRAMMING

157

1.8

3.68

G76 P011060 Q100 R200 ;

G76 X60640 Z25000 P3680 Q1800 F6.0 ;

105

ϕ60.64

1.8

X axis

ϕ68

Z axis

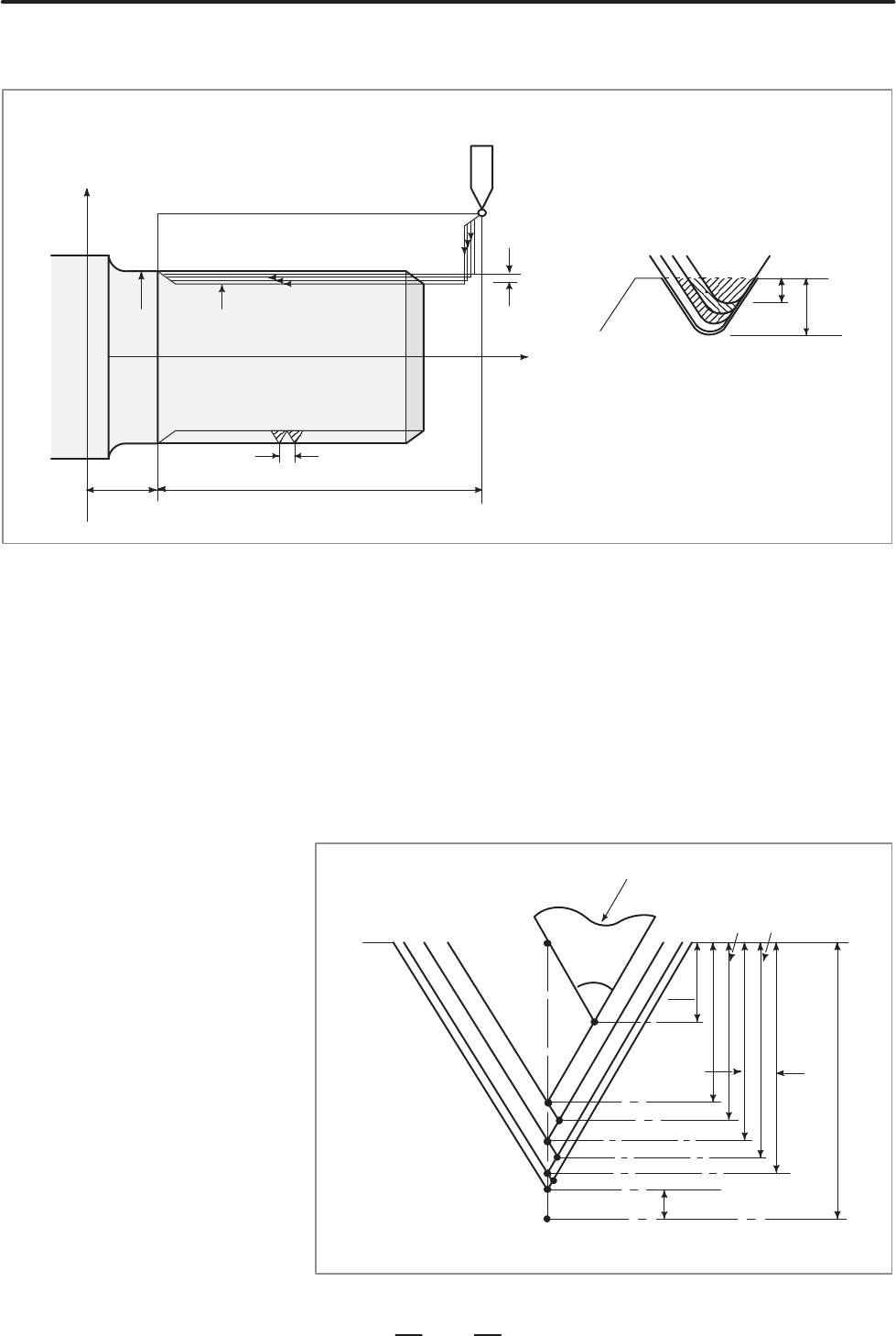

Multiple repetitive cycle (G76)

Specifying P2 can perform staggered thread cutting with a constant depth

of cut.

Example: G76 X60640 Z25000 K3680 D1800 F6.0 A60 P2;

For staggered thread cutting, always use the FS15 tape format (see

Section 17.5).

When command P instructing a cutting method is not specified or a

command other than P2 is specified, one–tool cutting is performed by a

constant amount.

If the depth of cut in one cycle is less than dmin (specified in parameter

No. 5140), the depth of cut is clamped at ∆dmin.

α (Finishing allowance)

Ǹ2⋅D

(Ǹ2⋅Ǹ4) D/2

(Ǹ 4⋅ Ǹ6) D/2

Ǹ2⋅D

Tool nose

Staggered thread cutting with a constant depth of cut

Ǹ4⋅D Ǹ6⋅D

Examples

D Staggered thread cutting
