0i-TC Operators manual Page 783

Operators manual

Page of 848

/ 848

APPENDIX

B–64114EN/01

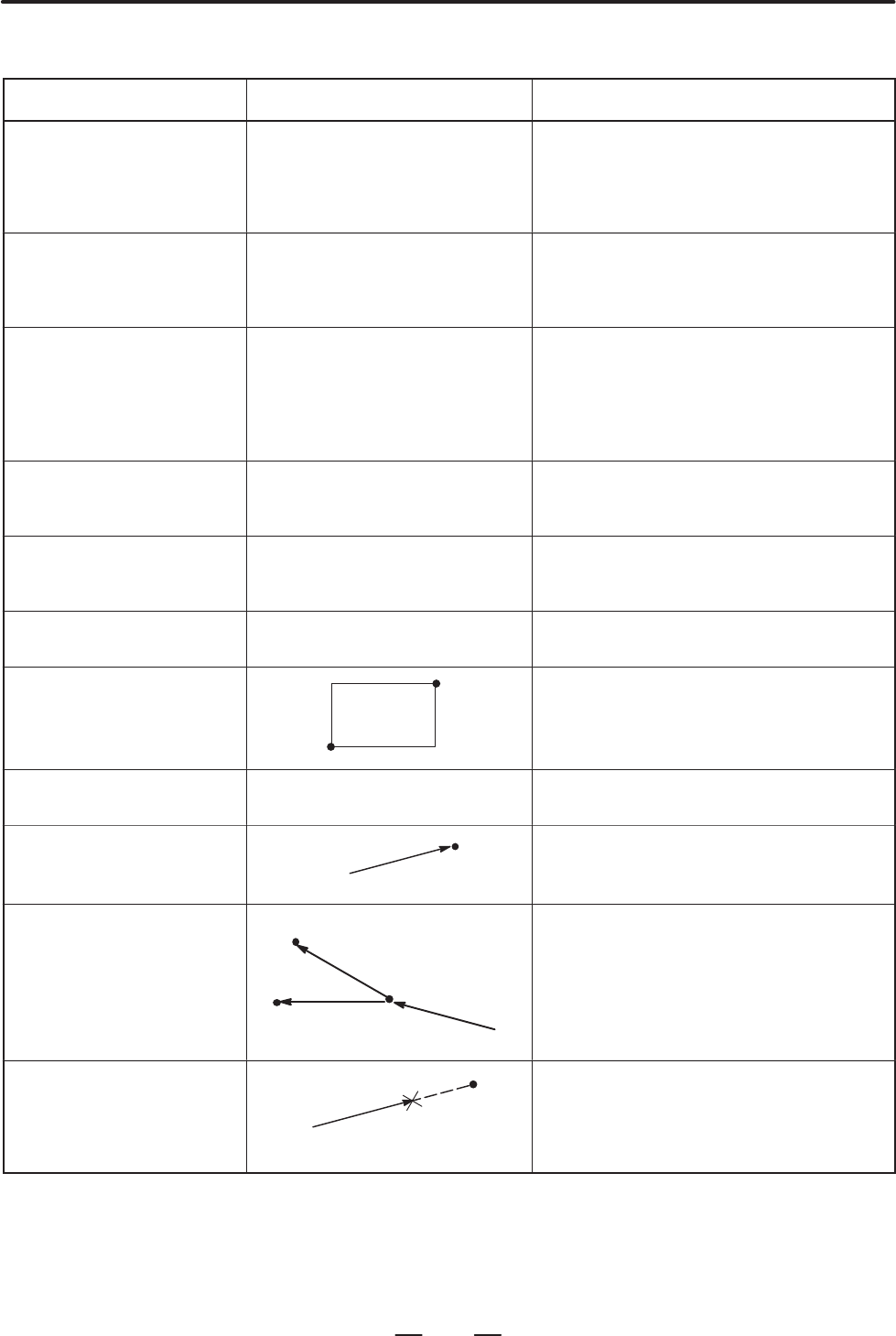

B. LIST OF FUNCTIONS AND

TAPE FORMAT

757

(2/5)

Functions Tape formatIllustration

Cylindrical interpolation

G07.1 _r_;

Cylindrical interpolation mode

G07.1 0 ;

Cylindrical interpolation mode cancel

r: Radius of cylinder

Advanced preview control

(G08)

G08 P1 ;

Advanced preview control mode on

G08 P0 ;

Advanced preview control mode off

Change of offsetvalue by

program (G10)

Tool geometry offset value

G10 P_ X_ Z_ R_ Q_ ;

P=1000+Geometry offset number

Tool wear offset value

G10 P_ X_ Z_ R_ Q_ ;

P=Wear offset number

Polar coordinate interpolation

(G12.1, G13.1)

(G112, G113)

G12.1 ; Polar coordinate interpolation mode

G13.1 ; Polar coordinate interpolation mode

cancel

Plane selection

(G17, G18, G19)

G17 ; XpYp plane selection

G18 ; ZpXp plane selection

G19 ; YpZp plane selection

Inch/metric conversion

(G20, G21)

Inch input : G20

Metric input : G21

Stored stroke check 2, 3

(G22, G23)

(I, K)

(X, Z)

G22X_ Z_ I_ K_ ;

G23 ;

Spindle speed fluctuation

detection (G25, G26)

G25 ;

G26 P_ Q_ R_ ;

Reference position return

check (G27)

Start position

G27 _ ;

Reference position return

(G28)

2nd, reference position return

(G30)

Reference position

Intermediate position

(G28)

2nd reference

position (G30)

Start position

G28 _ ;

G30 _ ;

Skip fubction (G31)

Start

position

Skip

signal

G31 _ F_;
