OPERATION

B–64114EN/01

4. AUTOMATIC OPERATION

423

D Background editing is performed.

D When

and

DELETE

keys were pressed.

D Upon reset when bit 7 (MCL) of parameter No. 3203 is set to 1

After the editing operation during the stop of MDI operation was done,

operation starts from the current cursor position.

A program can be edited during MDI operation. The editing of a program,

however, is disabled until the CNC is reset, when bit 5 (MIE) of parameter

No. 3203 is set accordingly.

Programs created in MDI mode cannot be registered.

A program can have as many lines as can fit on one page of the screen.

A program consisting of up to six lines can be created. When parameter

MDL (No. 3107 #7) is set to 0 to specify a mode that suppresses the

display of continuous–state information, a program of up to 10 lines can

be created.

If the created program exceeds the specified number of lines, % (ER) is

deleted (prevents insertion and modification).

Calls to subprograms (M98) can be specified in a program created in the

MDI mode. This means that a program registered in memory can be

called and executed during MDI operation. In addition to the main

program executed by automatic operation, up to four levels of

subprogram nesting are allowed (when the custom macro option is

provided, up to four levels are allowed).

O0001 ;

M98P1000 ;

M30 ;

Main program

O3000 ;

M99 ;

O1000 ;

M98P2000 ;

M99 ;

O2000 ;

M98P3000 ;

M99 ;

Subprogram

(One–level nesting) (Two–level nesting) (Three–level nesting)

Subprogram Subprogram

O4000 ;

M99 ;

(Four–level nesting)

Subprogram

M98P4000 ;

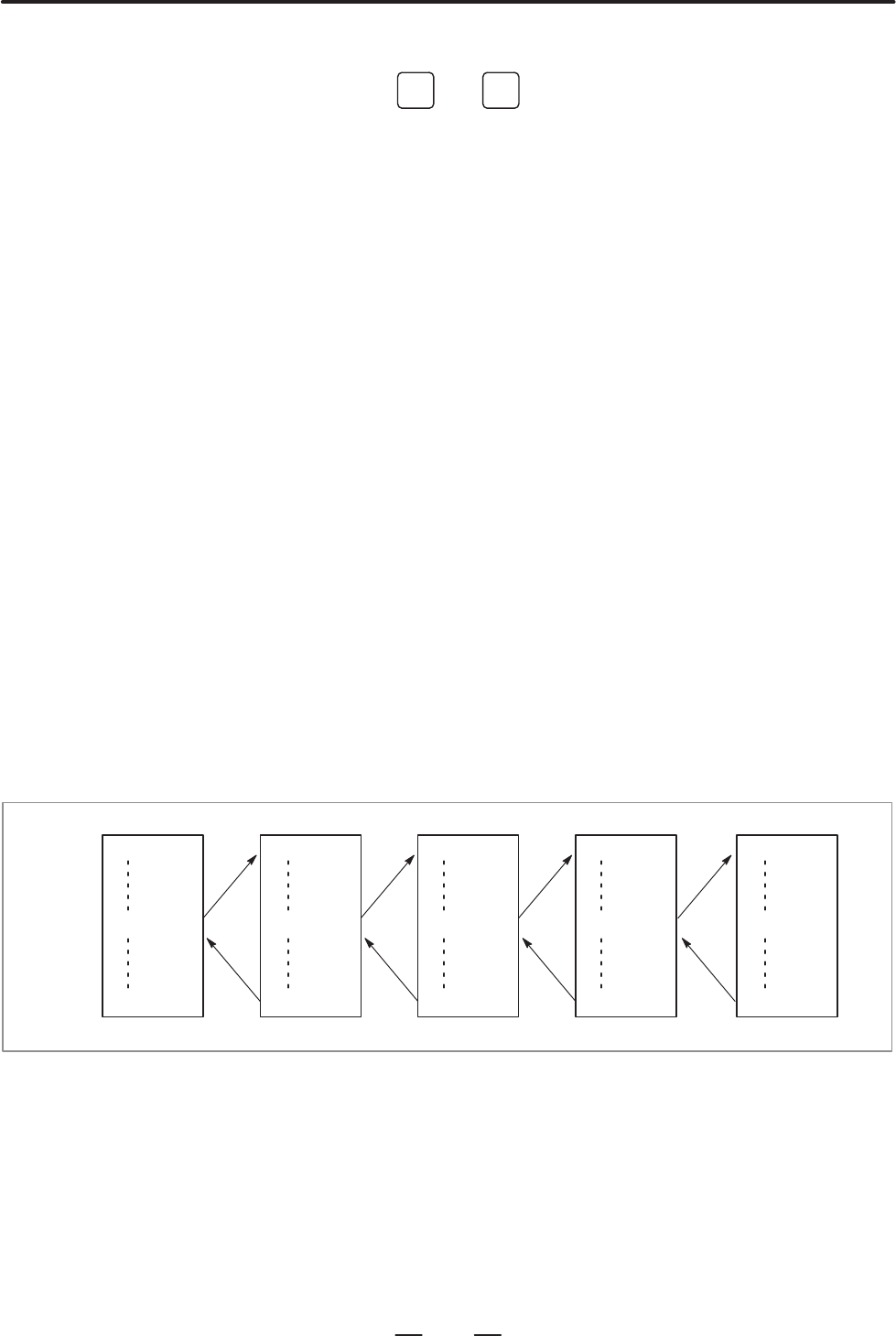

Fig. 4.2 Nesting level of subprograms called from the MDI program

Macro programs can also be created, called, and executed in the MDI

mode. However, macro call commands cannot be executed when the

mode is changed to

MDI mode after memory operation is stopped during

execution of a subprogram.

When a program is created in the

MDI mode, an empty area in program

memory is used. If program memory is full, no programs can be created

in the

MDI mode.

D Restart

D Editing a program during

MDI operation

Limitation

D Program registration

D Number of lines in a

program

D Subprogram nesting

D Macro call

D Memory area
