0i-TC Operators manual Page 435

Operators manual

Page of 848

/ 848

OPERATION

B–64114EN/01

3. MANUAL OPERATION

409

In the handle mode, the tool can be minutely moved by rotating the

manual pulse generator on the machine operator’s panel. Select the axis

along which the tool is to be moved with the handle feed axis selection

switches.

The minimum distance the tool is moved when the manual pulse

generator is rotated by one graduation is equal to the least input increment.

Or the distance the tool is moved when the manual pulse generator is

rotated by one graduation can be magnified by 1 times, 10 times, or by

one of the two magnifications (total four magnifications) specified by

parameters (No. 7113 and 7114).

In addition to using parameters No. 7113 and No. 7114 to set arbitrary

magnifications common to all axes, the user can use parameters No.

12350 and No. 12351 to set arbitrary magnifications independently for

individual axes.

When parameter No. 12350 has no value, parameter No. 7113 is used;

when parameter No. 12351 has no value, parameter No. 7114 is used.

These parameters are also valid for manual handle interruption.

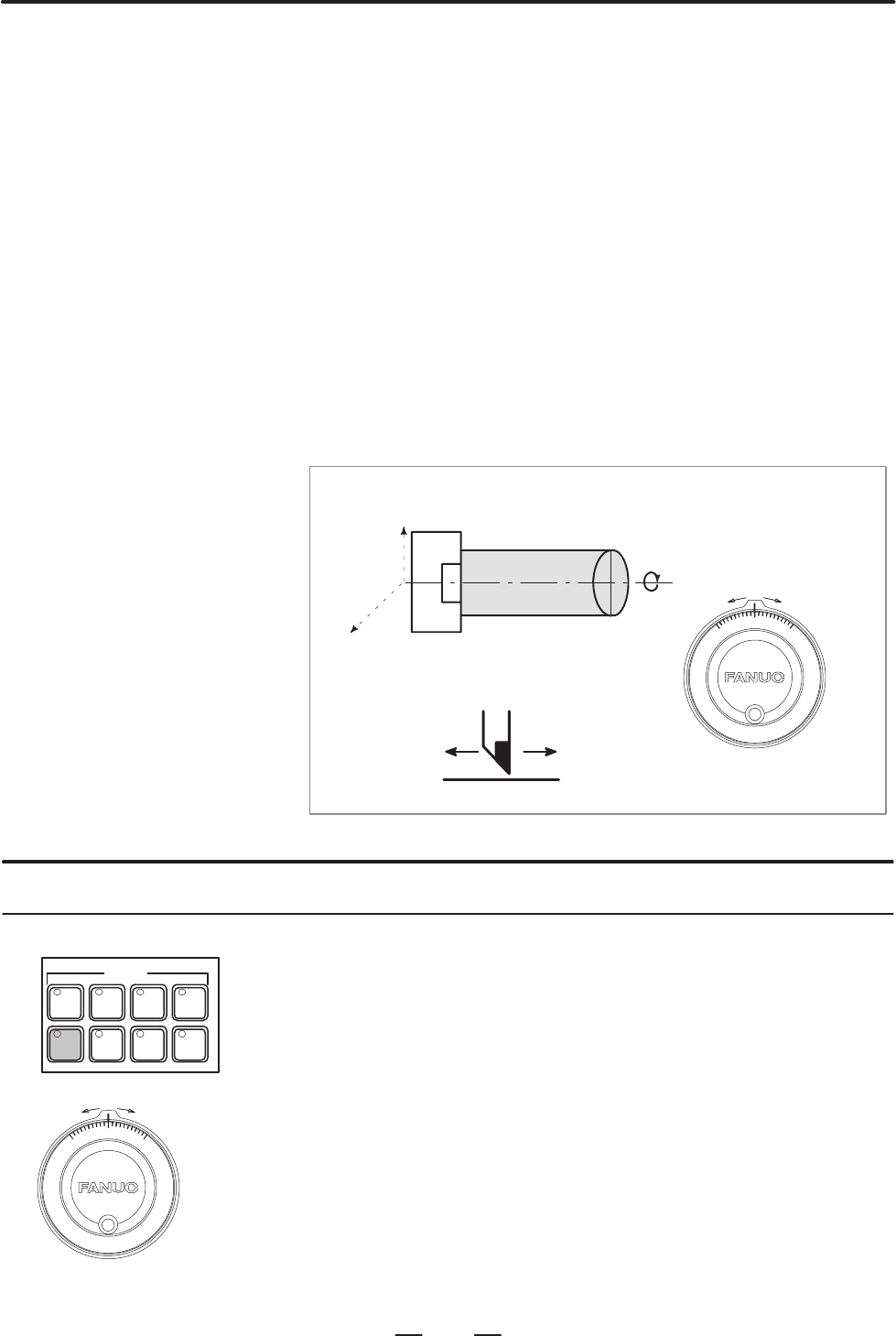

Manual pulse generator

Procedure for Manual Handle Feed

1 Press the HANDLE switch, one of the mode selection switches.

2 Select the axis along which the tool is to be moved by pressing a

handle feed axis selection switch.

3 Select the magnification for the distance the tool is to be moved by

pressing a handle feed magnification switch. The distance the tool is

moved when the manual pulse generator is rotated by one graduation

is: Least input increment multiplied by magnification

4 Move the tool along the selected axis by rotating the handle. Rotating

the handle 360 degrees moves the tool the distance equivalent to 100

graduations.

The above is an example. Refer to the appropriate manual provided by

the machine tool builder for the actual operations.

3.4

MANUAL HANDLE

FEED

REMOTE

MDI

MEMORY

EDIT

ZERO

RETURN

TEACH

JOG

MODE

HANDLE

Manual pulse generator
