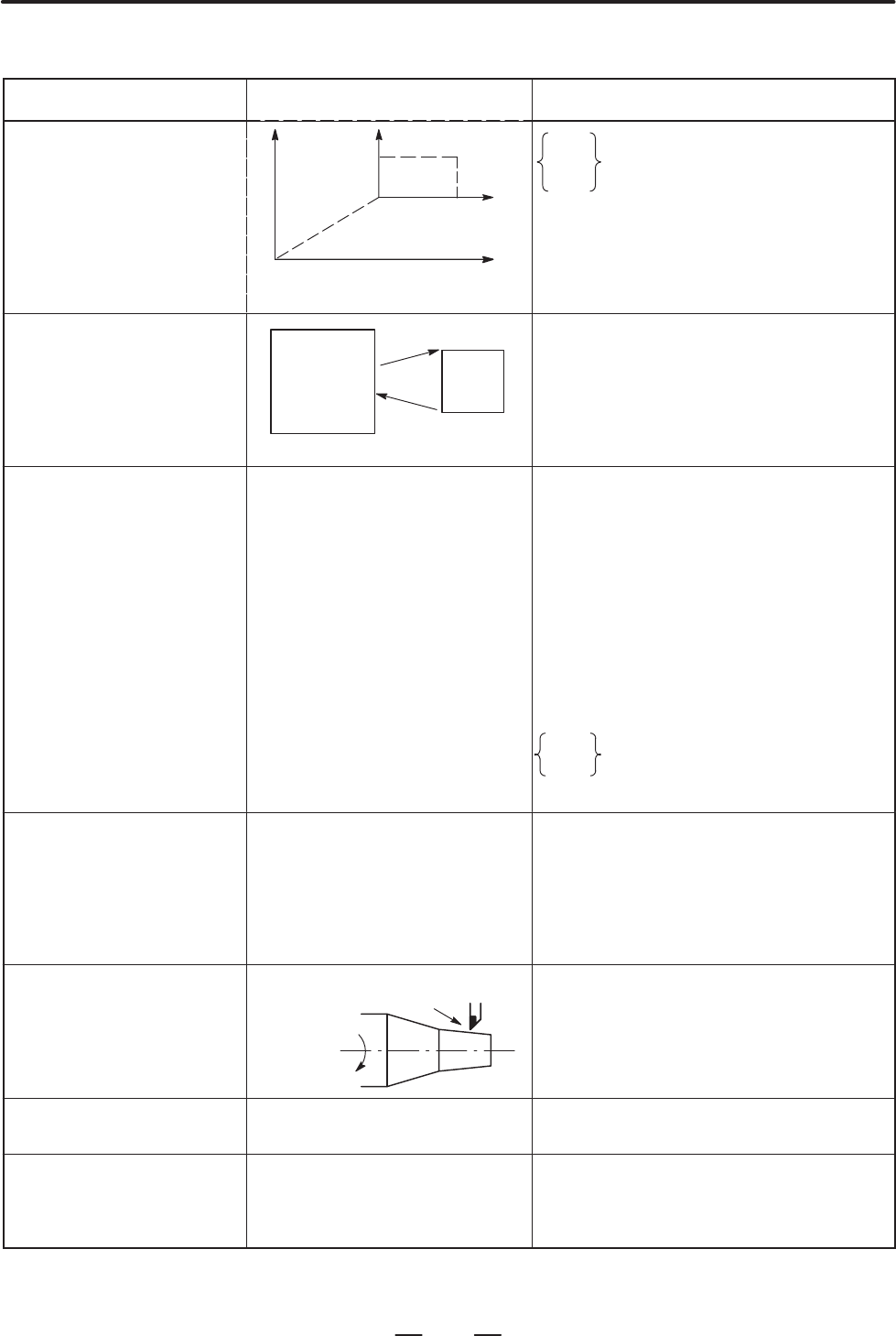

APPENDIX

B–64114EN/01

B. LIST OF FUNCTIONS AND

TAPE FORMAT

759

(4/5)

Functions Tape formatIllustration

Selecting a workpiece

coordinate system

(G54 to G59)

Workpiece

origin offset

Workpiece

coordinate

system

Machining coordinate

system

G54

: _ ;

G59

Custom macro

(G65, G66, G67)

G65 P_ L_ ;

Macro

O_ ;

M99 ;

One–shot call

G65 P_ L_ <argument> ;

P : Program number

L : Repetition count

G66 P_ L_ <argument> ;

G67 ; Cancel

Canned cycle

(G71 to G76)

(G90, G92, G94)

Refer to II.13. FUNCTIONS TO

SIMPLIFY PROGRAMMING

N_ G70 P_ Q_ ;

G71 U_ R_ ;

G71 P_ Q_ U_ W_ F_ S_ T_ ;

G72 W_ R_ ;

G72 P_ Q_ U_ W_ F_ S_ T_ ;

G73 U_ W_ R_ ;

G73 P_ Q_ U_ W_ F_ S_ T_ ;

G74 R_ ;

G74 X(u)_ Z(w)_ P_ Q_ R_ F_ ;

G75 R_ ;

G75 X(u)_ Z(w)_ P_ Q_ R_ F_ ;

G76 P_ Q_ R_ ;

G76 X(u)_ Z(w)_ P_ Q_ R_ F_ ;

G94 X_ Z_ K_ F_ ;

G90

G92

X_ Z_ I_ F_ ;

Canned cycle for drilling

(G80 to G89)

Refer to II.13. FUNCTIONS TO

SIMPLIFY PROGRAMMING

G80 ; Cancel

G83 X(U)_ C(H)_ Z(W)_ R_ Q_ P_ F_ K_ M_ ;

G84 X(U)_ C(H)_ Z(W)_ R_ P_ F_ K_ M_ ;

G85 X(U)_ C(H)_ Z(W)_ R_ P_ F_ K_ M_ ;

G87 Z(W)_ C(H)_ X(U)_ R_ Q_ P_ F_ K_ M_ ;

G88 Z(W)_ C(H)_ X(U)_ R_ P_ F_ K_ M_ ;

G89 Z(W)_ C(H)_ X(U)_ R_ P_ F_ K_ M_ ;

Constant surface speed control

(G96/G97)

Surface speed

(m/min or feet/min)

Spindle speed

N (min

–1

)

G96 S_ ; Starts constant surface speed control

(Surface speed command)

G97 S_ ; Constant surface speed is cancelled

(Maximum spindle speed command)

Feed per minute (G98)

Feed per revolution (G99)

mm/min inch/min

mm/rev inch/rev

G98 ... F_ ;

G99 ... F_ ;

Absolute/incremental

programming

(when G code system A)

X_Z_C_ ; Absolute programming

U_W_H_ ; Incremental programming

(Identified by an address word specified with a G

function such as G00 or G01)
