27. DISPLAYING AND SETTING DATA

B–63002EN/01

NC FUNCTION

316

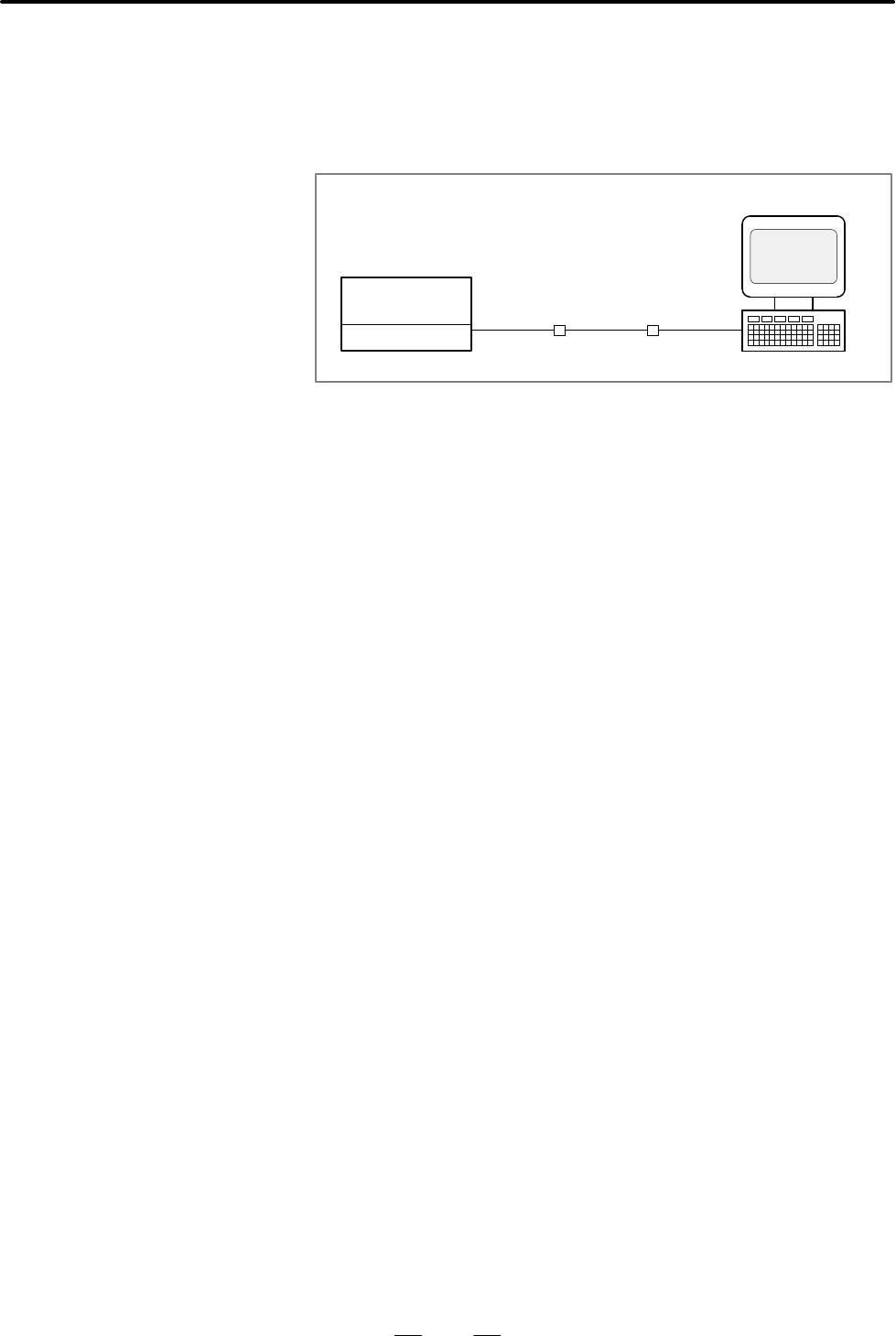

The remote diagnosis function allows CNC status monitoring and

modification to CNC data to be performed remotely by menu–based

operation. The remote diagnosis function, operating under MS–DOS, is

installed on a standard personal computer, connected as a service terminal

to the CNC via the RS–232C interface, over a telephone line, and so on.

CNC Machine

Toool

RS–232C

Modem

Telephone

line

Modem

RS–232C

[Personal

computer]

The remote diagnosis terminal software is sold separately.

The remote diagnosis function provides the following capabilities :

 CNC programs

 Computer → CNC

 CNC command data for verification

 Searching for a specified program

 Part program

 Deleting a specified program

 Deleting all programs

 CNC → computer

 Part program

 Displaying a program directory

 Program number of a program being executed

 Sequence number of a sequence being executed

 Computer → CNC

 Parameter

 Pitch error data

 Tool offset value

 Custom macro variable

 Selecting a display screen

 Memory contents

 PMC data

 Displaying a specified message

 All parameters

27.15

REMOTE DIAGNOSIS
