B–63002EN/01

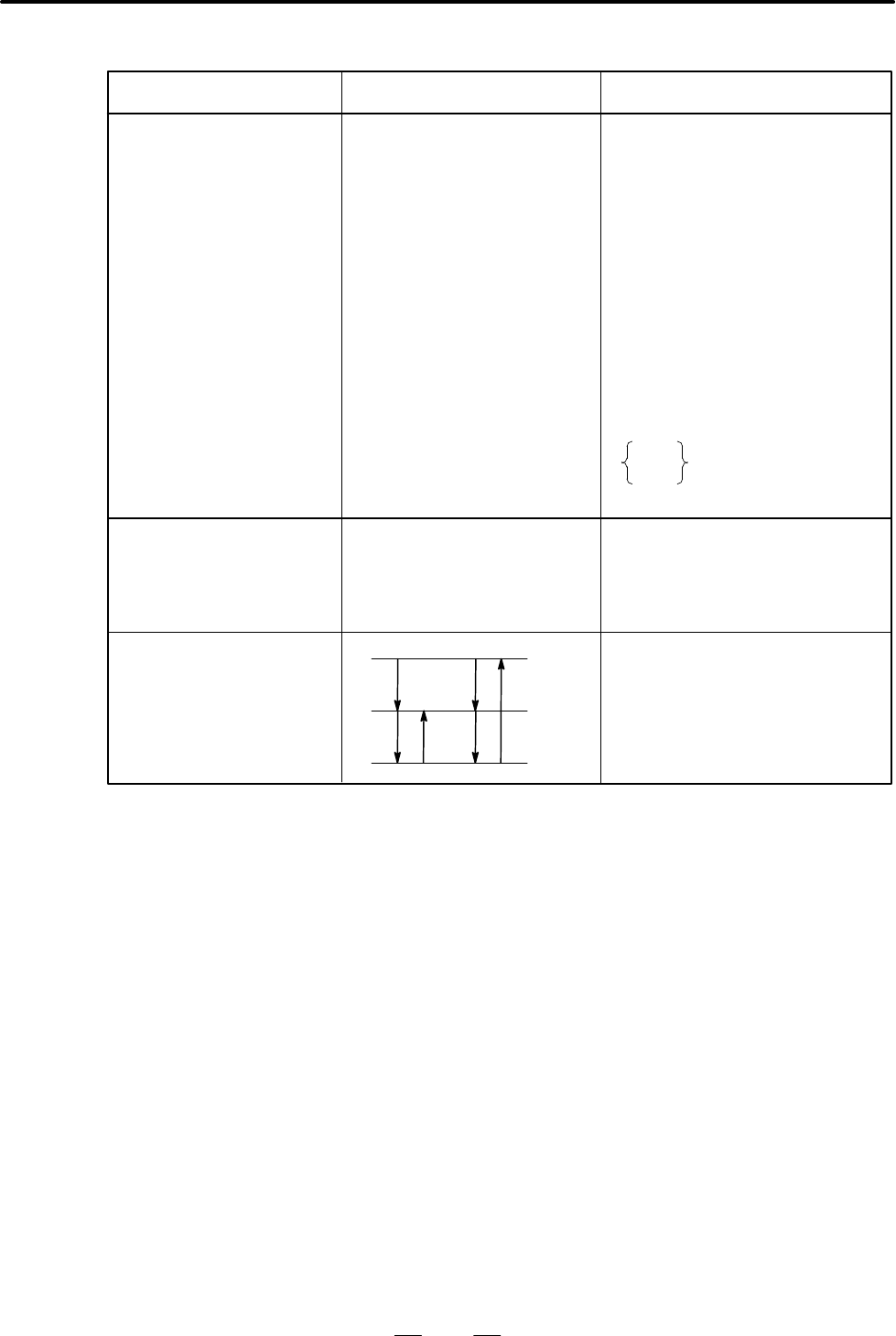

B. FUNCTIONS AND TAPE FORMAT LIST

APPENDIX

409

Refer to II.14. FUNCTIONS TO

SIMPLIFY PROGRAMMING

Canned cycle

(G71 to G76)

(G90, G92, G94)

Functions Illustration Tape format

N_ G70 P_ Q_ ;

G71 U_ R_ ;

G71 P_ Q_ U_ W_ F_ S_ T_ ;

G72 W_ R_ ;

G72 P_ Q_ U_ W_ F_ S_ T_ ;

G73 U_ W_ R_ ;

G73 P_ Q_ U_ W_ F_ S_ T_ ;

G74 R_ ;

G74 X(u)_ Z(w)_ P_ Q_ R_ F_ ;

G75 R_ ;

G75 X(u)_ Z(w)_ P_ Q_ R_ F_ ;

G76 P_ Q_ R_ ;

G76 X(u)_ Z(w)_ P_ Q_ R_ F_ ;

G94 X_ Z_ K_ F_ ;

G90

G92

X_ Z_ I_ F_ ;

(5/5)

Absolute/incremental

programming

(G90/G91)

(With G code system B or C)

G90_ ; Absolute programming

G91_ ; Incremental programming

G90_ G91_ ;

Absolute and incremental

programming

Return to initial point/R point

(G98, G99)

(With G code system B or C)

G98_ ;

G99_ ;

I point

G99

G98

R point

Z point
