31. SAFETY FUNCTIONS

B–63002EN/01

NC FUNCTION

342

It is used for checking the interference between the chuck and tail stocks

and preventing the damage of machines.

Set the area of entry prohibition from the exclusive setting screen

according to the shapes of chuck and tail stocks.

When a tool enters the area of entry prohibition during cutting, the

travelling of tool is stopped and an alarm message is displayed. The tool

can be escaped from the prohibition area by moving in the opposite

direction to that on entry. The Yes/No of this function is selected by the

G22 (Stored stroke limit on). G23 (Stored stroke limit off), and signal of

machine side.

G code Tail stock barrier select

signal

Chuck barrier Tail stock barrier

G22 0 Yes Yes

G22 1 Yes No

G23 Irrelevant No No

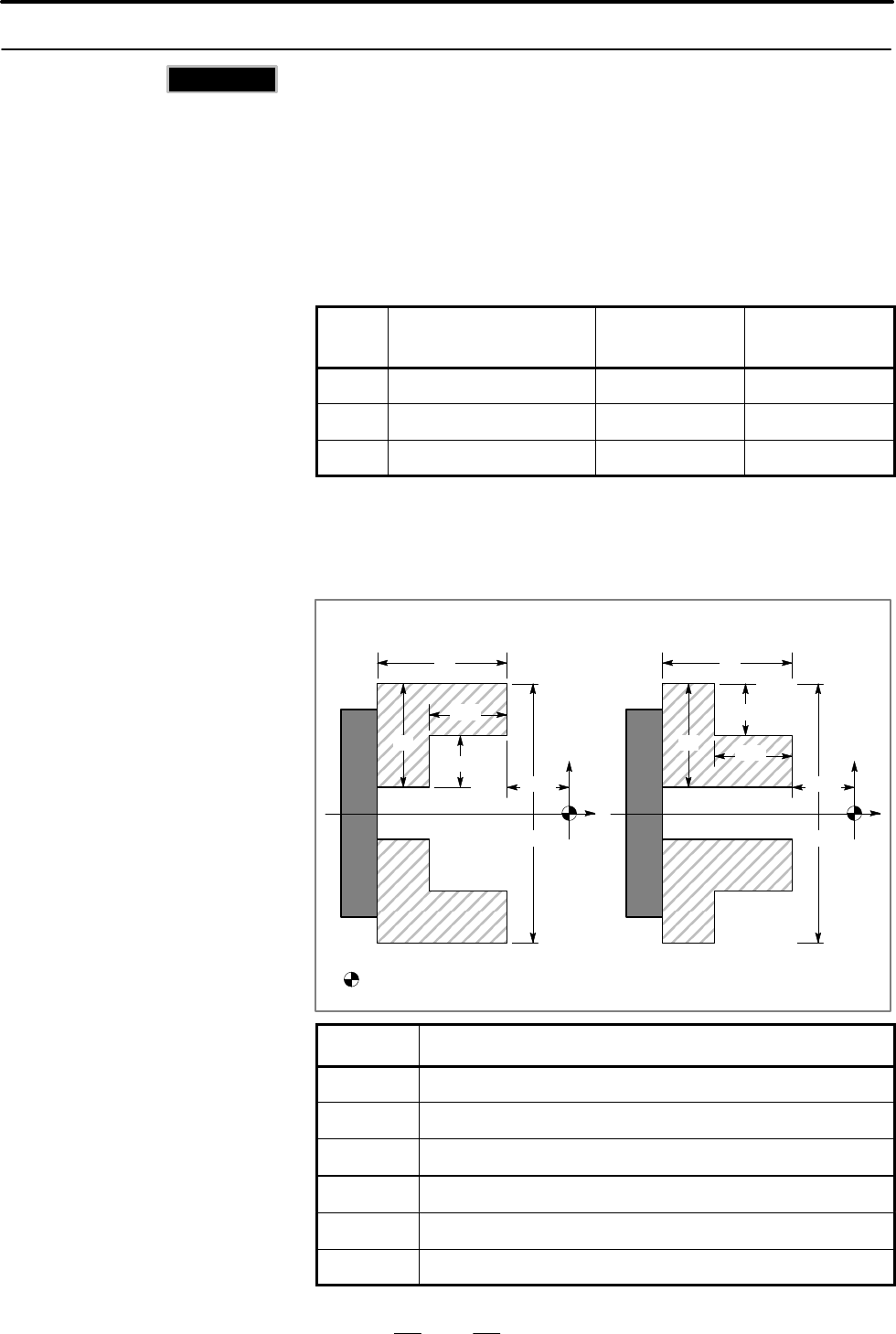

The shape of chuck or tail stock is defined on the setting screen.

Outer diameter

Inner diameter

: Workpiece coordinate system origin

Symbol

Description

L Length of chucking claw

W Size of chucking (radius input)

L1 Holding length of chucking claw

W1 Holding difference of chucking claw (radius input)

CX Position of chuck (X axis)

CZ Position of chuck (Z axis)

31.2.8

Chuck/Tail Stock

Barrier (T series)

T series

Explanations

 Dimension definition of

chuck
